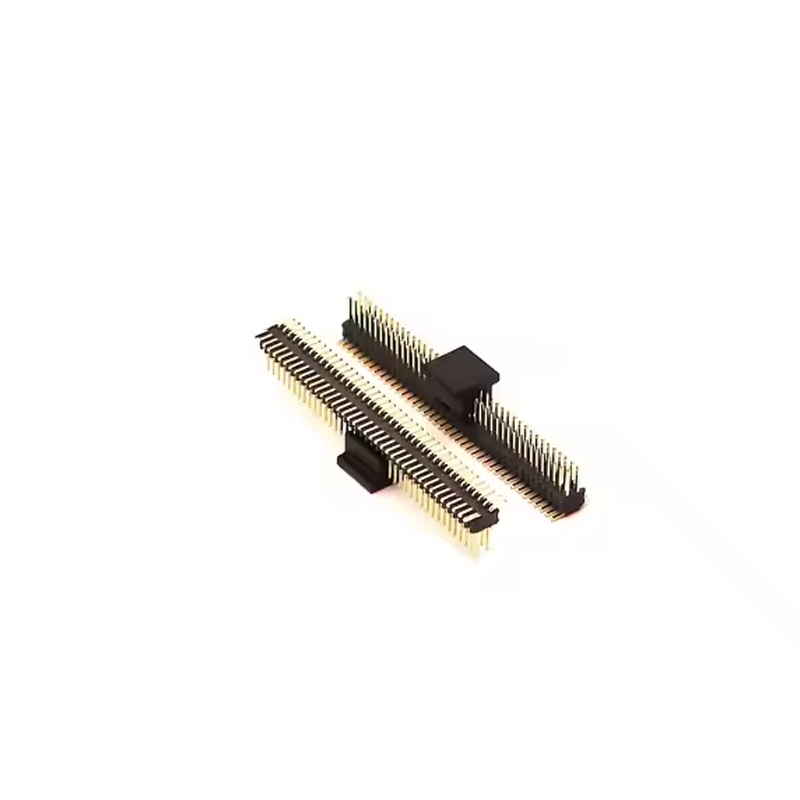

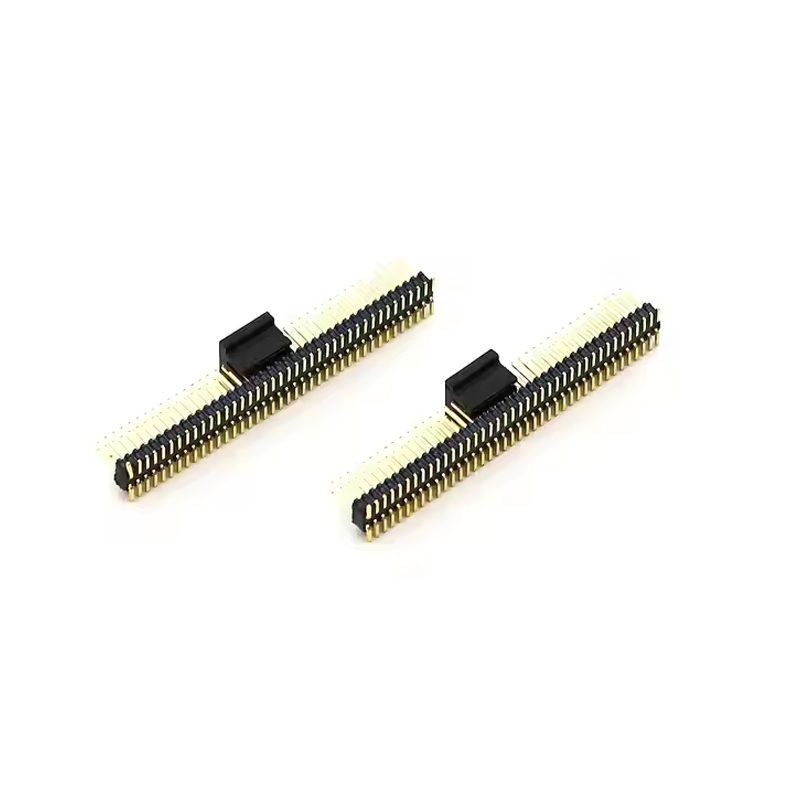

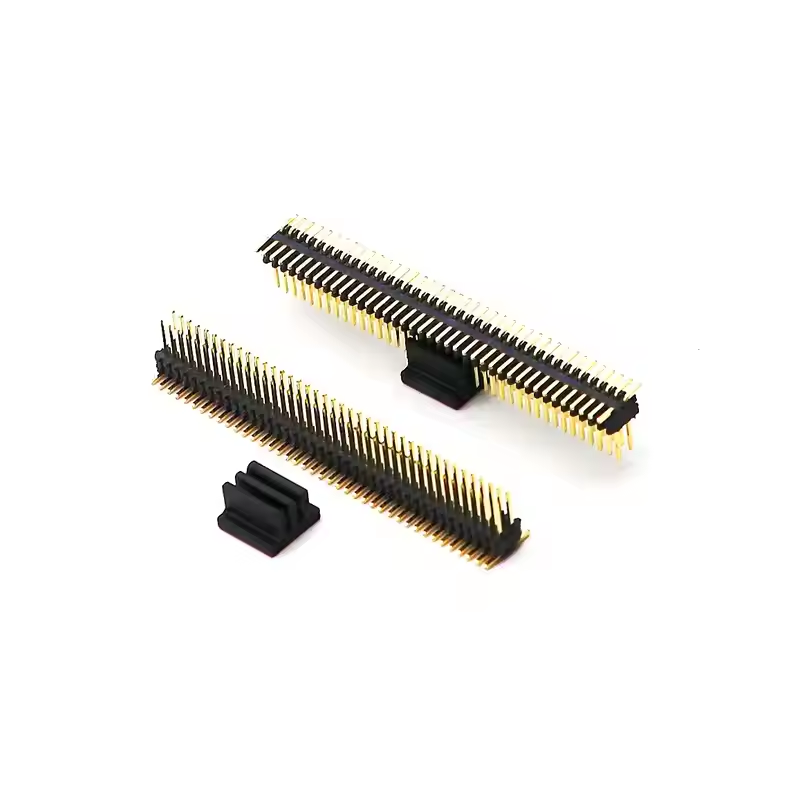

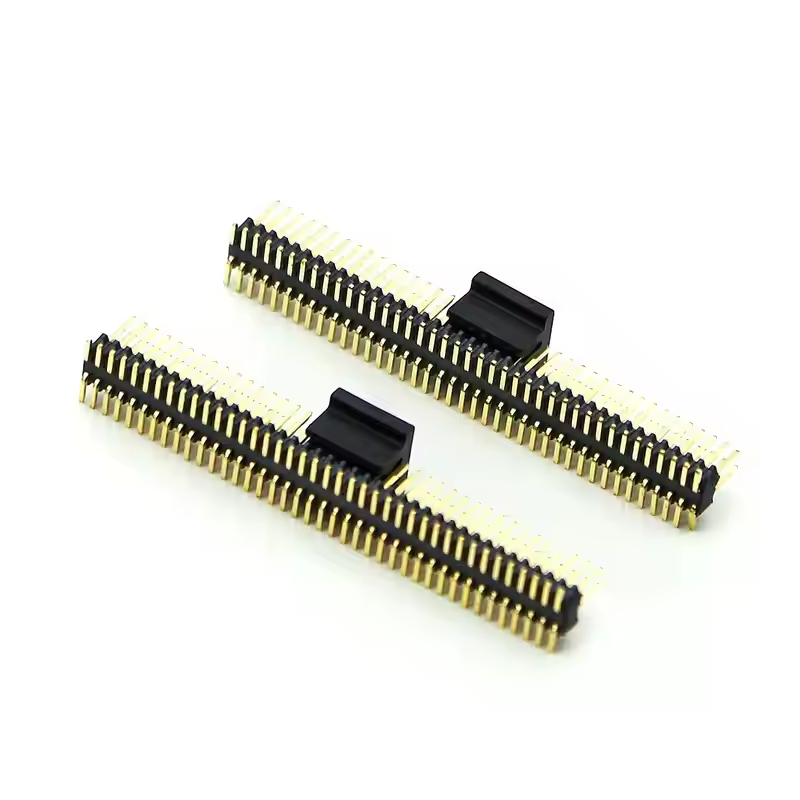

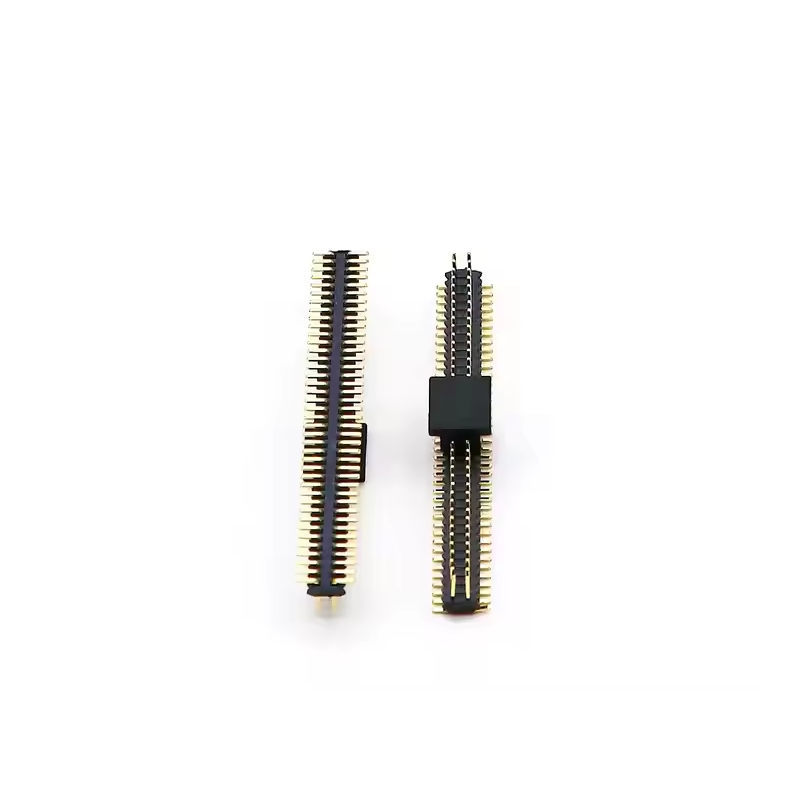

0.8mm Pitch Pin Header SMT H1.38mm

0.8mm Pitch Pin Header SMT H1.38mm yztech’s 0.8mm Pitch Pin Header SMT H1.38mm is a core component for precise internal connections in electronic devices. As a high-precision model in the Pin Header series, its 0.8mm narrow-pitch design breaks through space limitations, adapting to high-density PCB layout needs,especially suitable for miniaturized scenarios like 0.8mm pin Header and 0.8 mm pitch header. The double-row structure significantly improves signal transmission efficiency,compatible with both SMT and through-hole processes, making this 0.8mm pin header connector an ideal solution for compact designs in the PCB Pin Header category. Featuring high-quality C2680 phosphor bronze terminals (gold-plated) and black LCP (UL94V-0) insulators, the 0.8mm pin header smt H1.38mm operates stably at 1.5A/pin from -40°C to +105°C. With contact resistance controlled below 20mΩ and a ≥50u" nickel base layer,the pcb pin header 50P ensures low-loss transmission of high-frequency signals. The fl…
