1000m LiDAR Sensor Module For Surveying Equipment

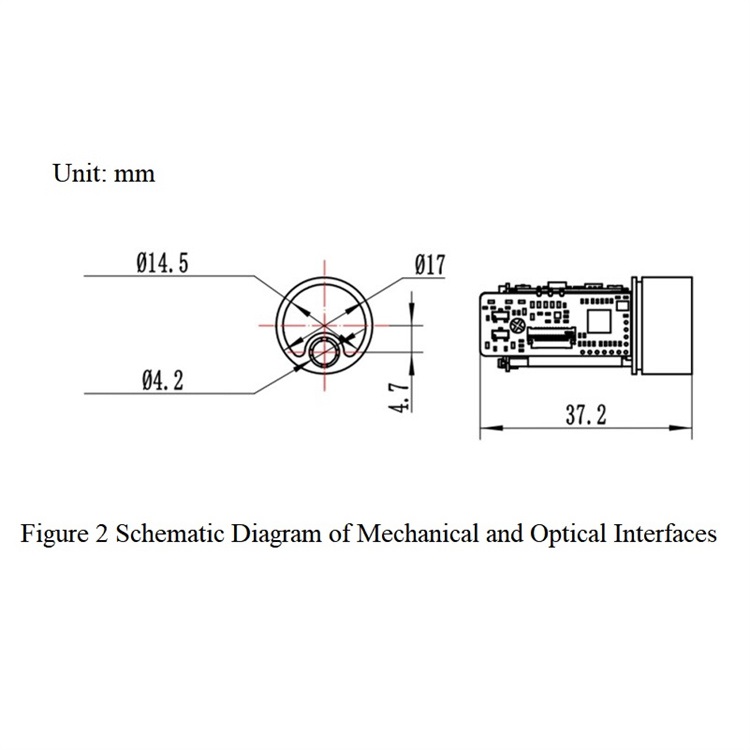

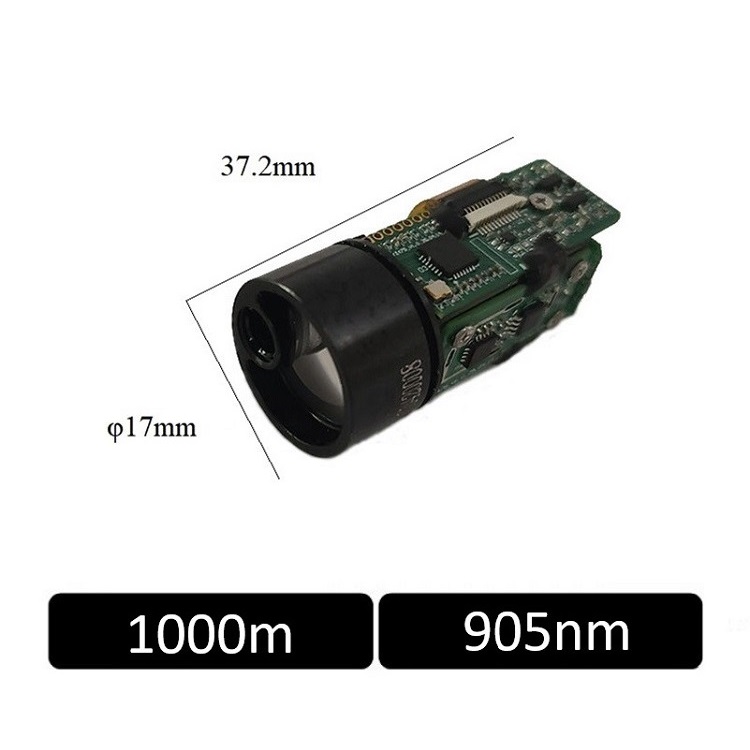

1000m LiDAR Sensor Module For Surveying Equipment Do you want to know this long sensor LiDAR for surveying drone height in a range of 10m to 1000m range? Yes, PTYC2-10X Detection range of 5–1000 meters is widely used in Night vision, Thermal Imaging, Golf, UAV(Unmanned Aerial Vehicle) etc. Customers are usually working on a prototype measuring tool with serial ports communication, if you would like to ask how to use the  laser range finder module, welcome to contact us, we will select the suitable for drone surveying ranging use & the instruction manual. Machinical Dimensions Technical Parameters: 1. Laser wavelength: 905nm 2. Eye safety level: Class 1 3. Emission aperture: Φ4.2mm 4. Receiving aperture: Φ14.5mm 5. Measuring capability: ≥1000m (Target: large target, visibility: ≥10km. Target reflectivity: 0.3) 6. Measuring blind zone: ≤5m 7. Measuring accuracy: ≤±1m (≤400m), ≤d×0.4% (>400m) 8. Measuring success rate: ≥99% 9. Measuring mode: Single shot, continuous ranging 1…
