100mm Inlet Mining Centrifugal Pump

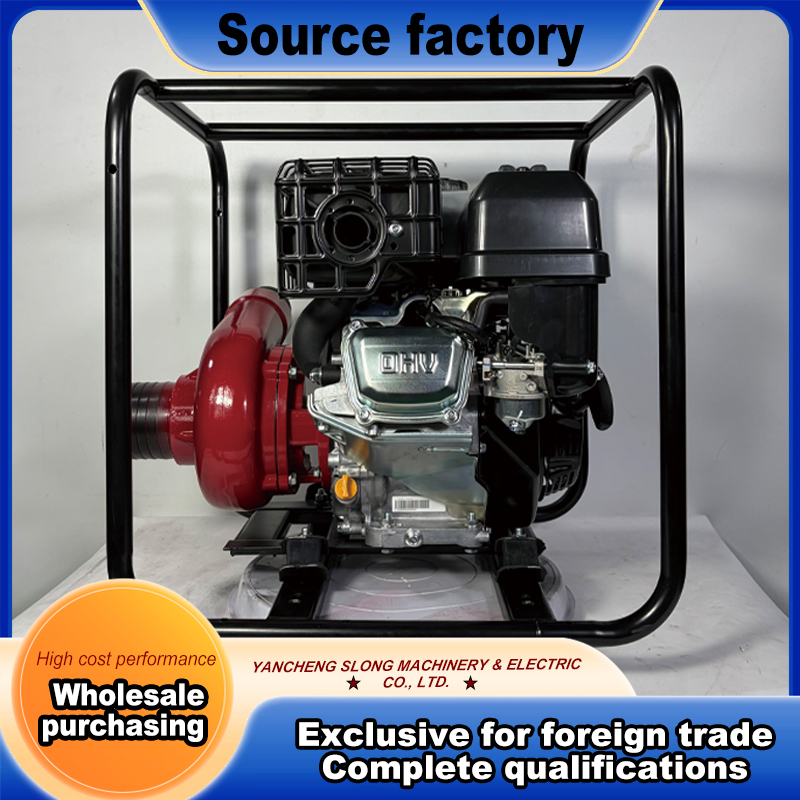

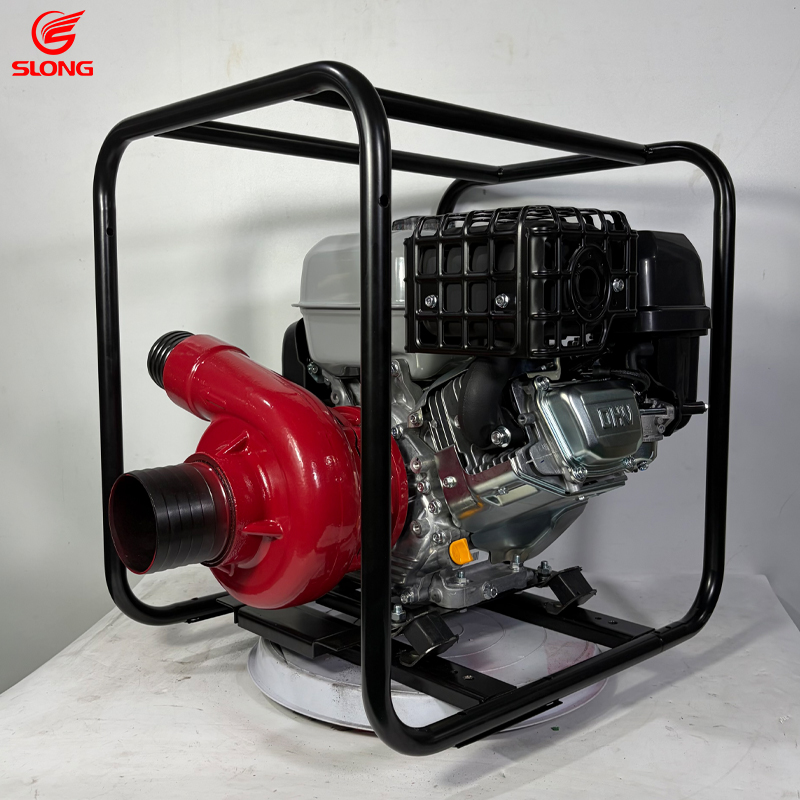

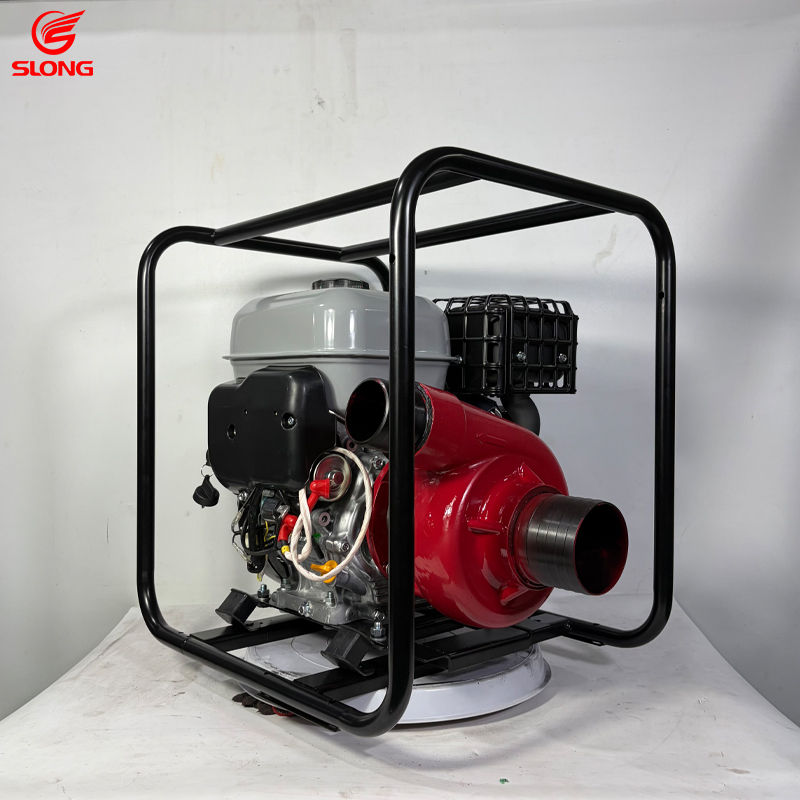

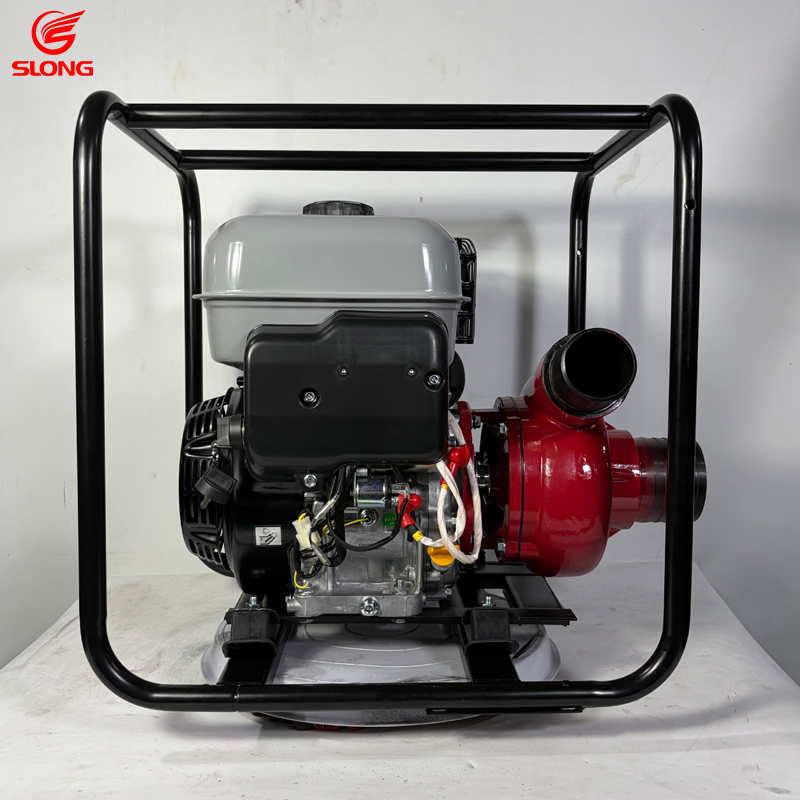

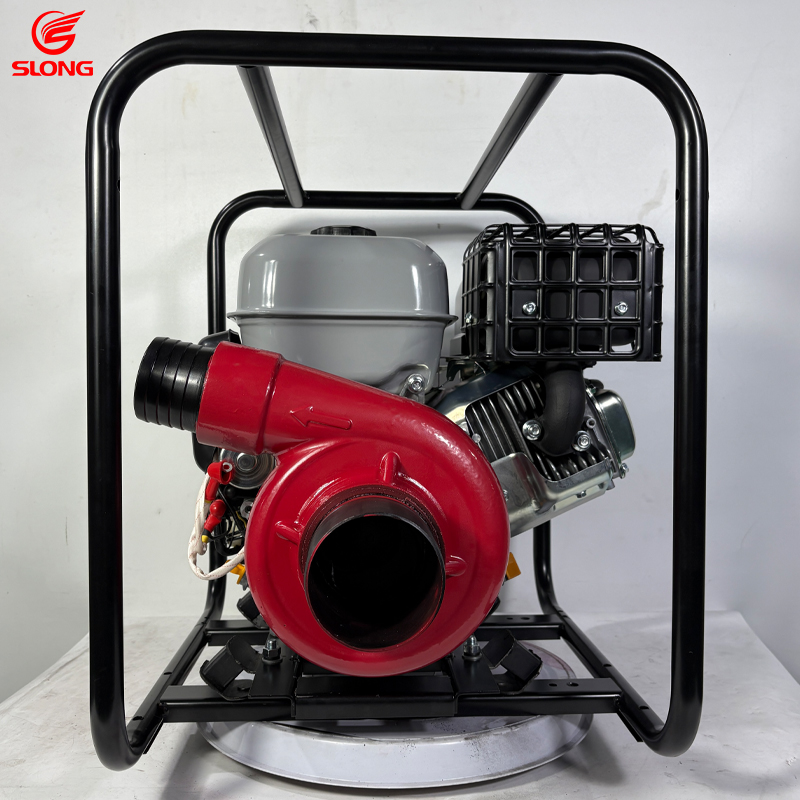

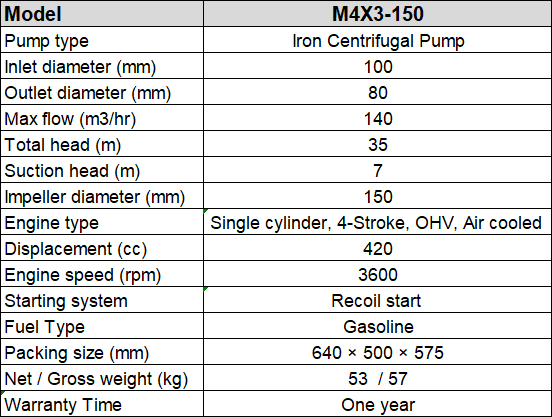

Mining High Flow Cast Iron Pump for Mineral Panning and Sand Washing The M4X3-150 belongs to our Mining Pump series. This mining high flow cast iron pump is designed for demanding applications such as mineral panning and sand washing. It features a 100mm inlet and 80mm outlet diameter with a maximum flow of 140 cubic meters per hour. The total head reaches 35 meters with a suction head of 7 meters. The heavy duty cast iron structure provides impact and pressure resistance during continuous operation. This pump is specifically suitable for mineral panning and sand washing operations where large volumes of water are required. The pump is powered by a single cylinder four stroke ohv air cooled gasoline engine with 420cc displacement. The engine runs at 3600 rpm and uses a recoil start system for reliable operation. The robust cast iron impeller with 150mm diameter delivers stable operation and good heat dissipation. The excellent wear and corrosion resistance ensure long service life eve…
