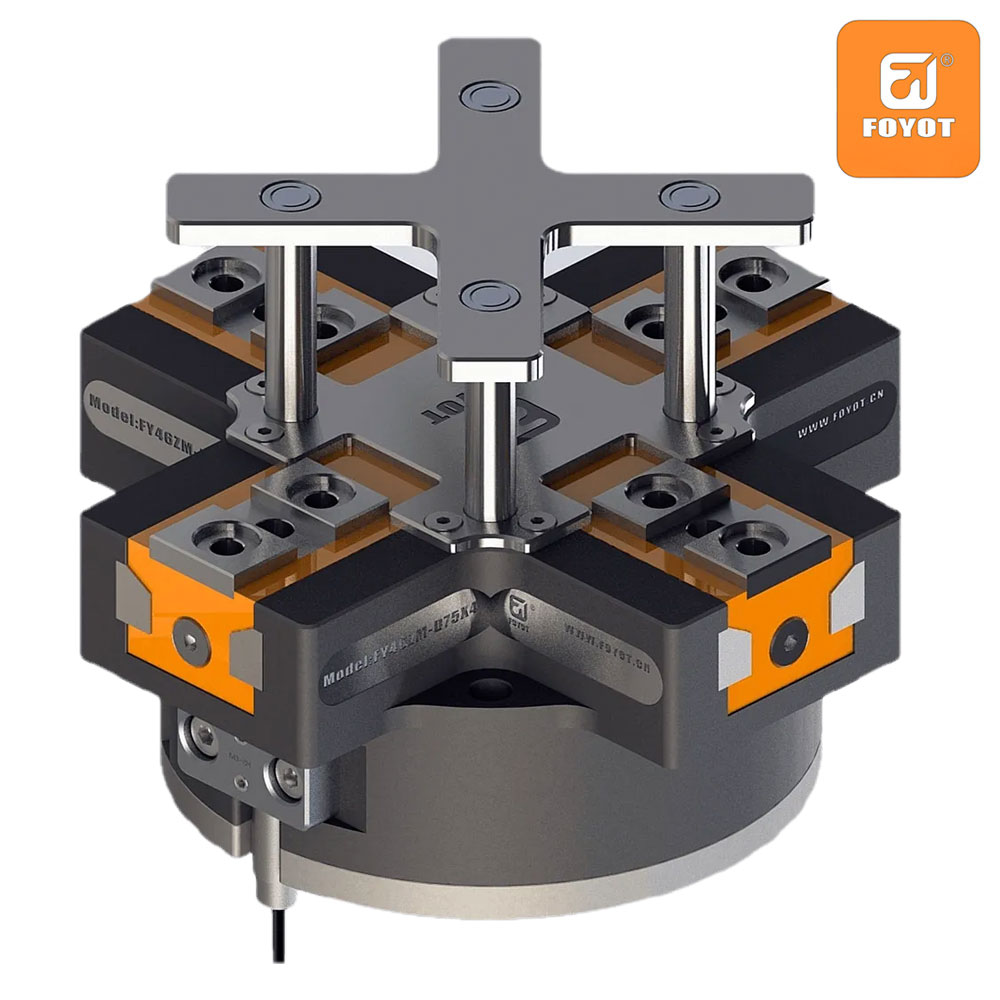

20mm Stroke 2952N 4-Jaw Pneumatic Gripper

  20mm Stroke & 2952N Force for Medium Cylindrical Parts The FY46ZM-D75X4 is a high-force pneumatic parallel 4-jaw gripper engineered for precise, self-centering clamping of medium-sized cylindrical workpieces. With a 20 mm total stroke and 2952.8 N opening force, it delivers strong, uniform gripping for demanding assembly and machining applications. The four-jaw centric design eliminates off-center deflection and ensures repeatable part positioning. High-Precision & Stable Cycling Achieves ±0.02 mm repeat accuracy with 0.10/0.10 sec opening/closing times. Weighing 1.85 kg, it offers a robust yet manageable solution for robotic end-effectors. With 40 consecutive usage cycles, it ensures reliable long-term performance in industrial environments. IP64 Protection & Low Maintenance Rated IP64 for dust and water splash protection. No lubrication required reduces maintenance and enables clean operation. The PF(G) 1/8″ port allows standard tubing connection for easy integration…
