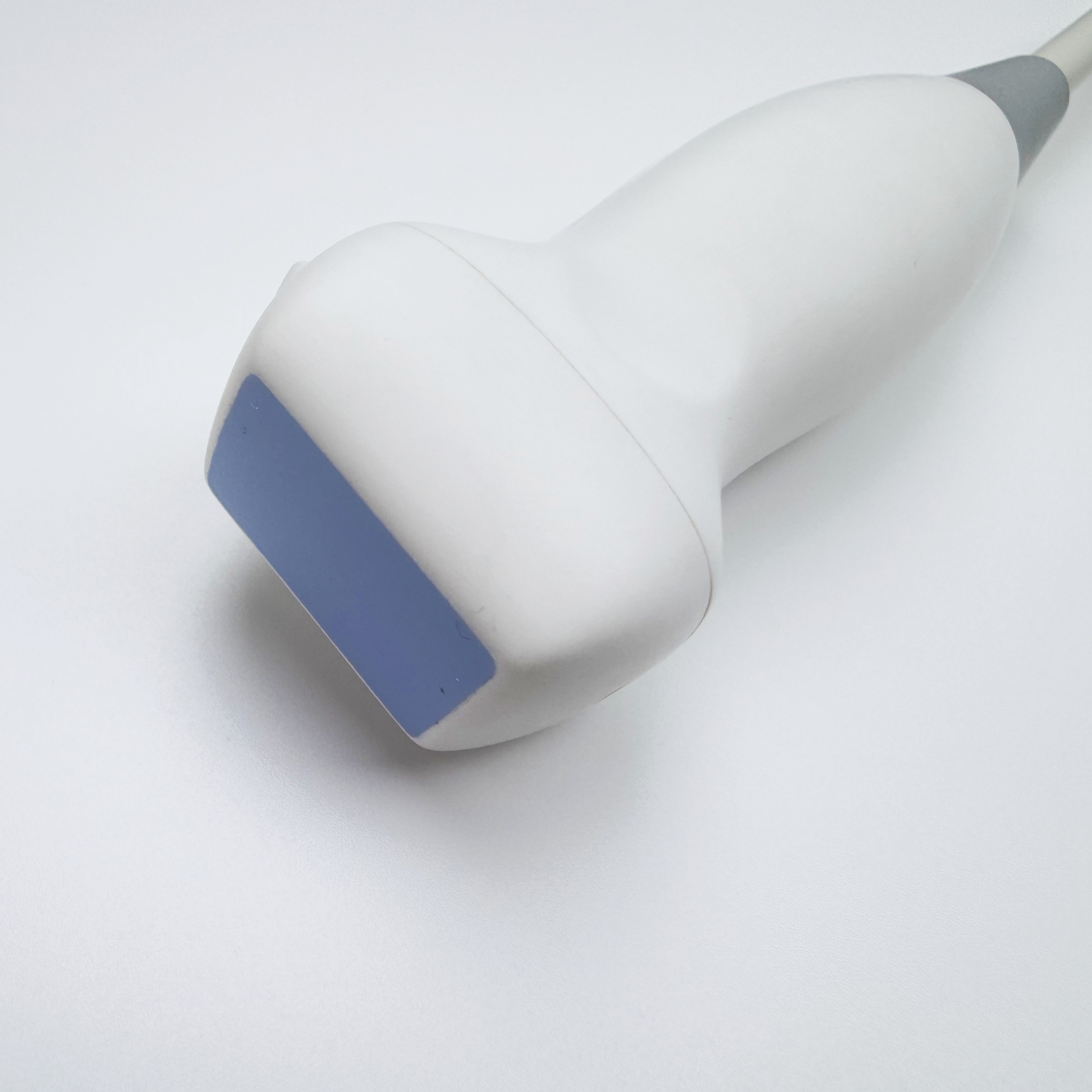

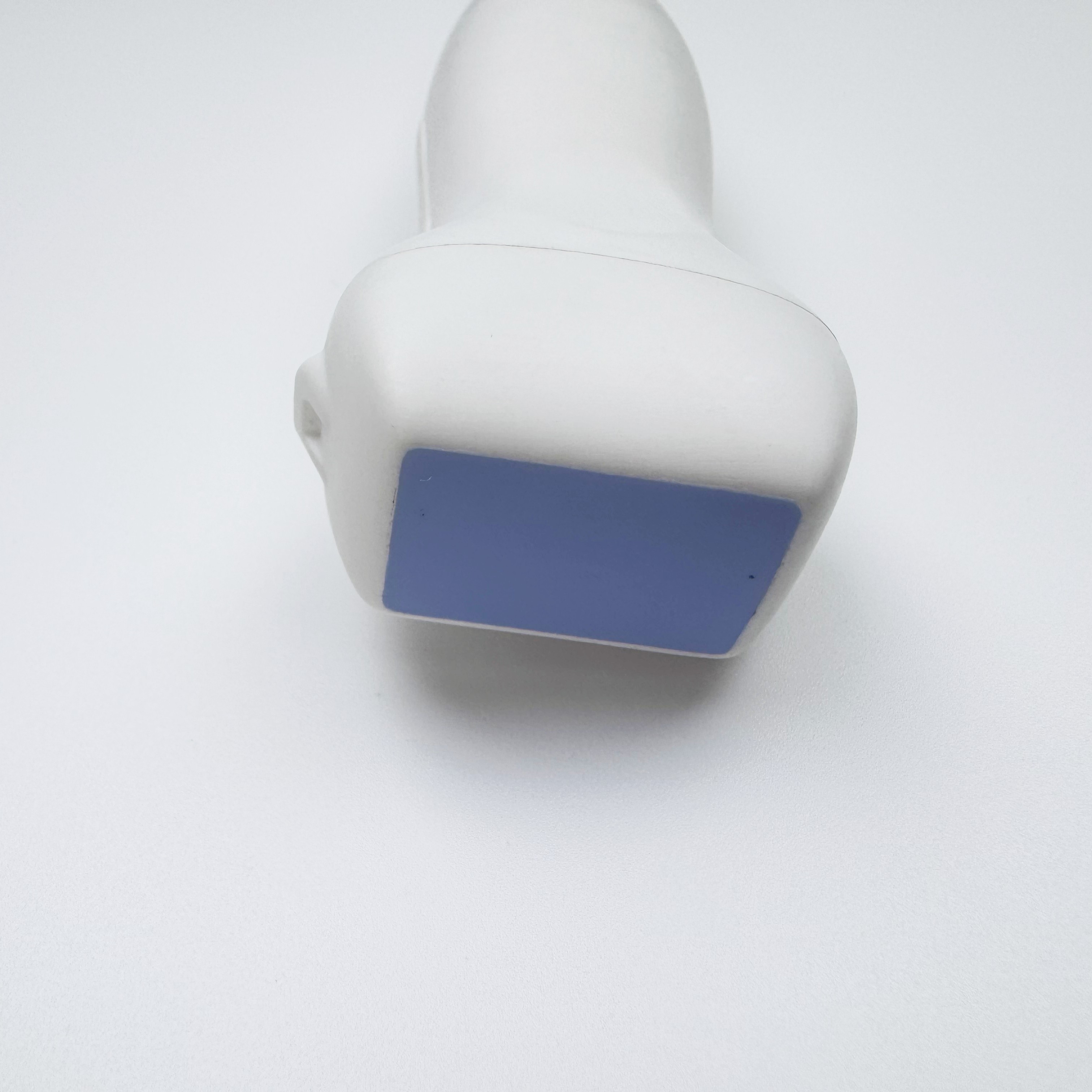

Advanced Phased Array Ultrasonics Probe

Type: Phased Array Array elements: 64 / 80  Scanning Geometry: 16mm / 20mm -6dB Center Freq.: 3.0+/-0.5MHz -6dB RBW: ≥80% Sensitivity: >-55dB Pitch: 0.25mm Kerf: 0.04mm Array Width: 0.21mm Transverse Aperture: 11mm Focal Length: 55mm Plug: QLC260P is the default model, can be changed according to customer requirements. Customer-Supplied Material: Pin Map of the host plug; other specifications (like host plug circuit board, ID, shell, sheath, nameplate, etc.) are subject to customer requirements.
