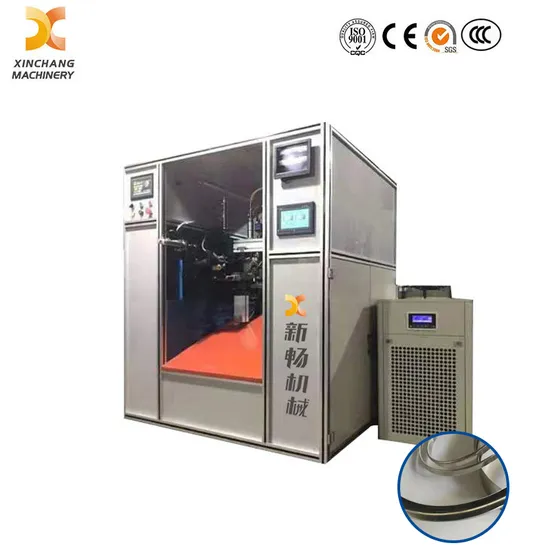

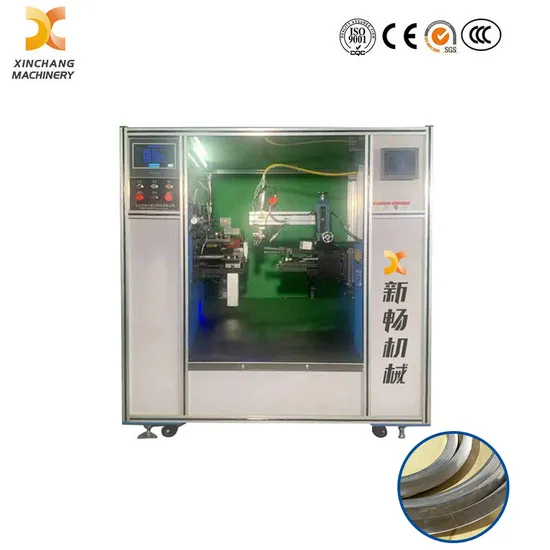

Automatic Continuous Stainless Steel Strip Laser Welder

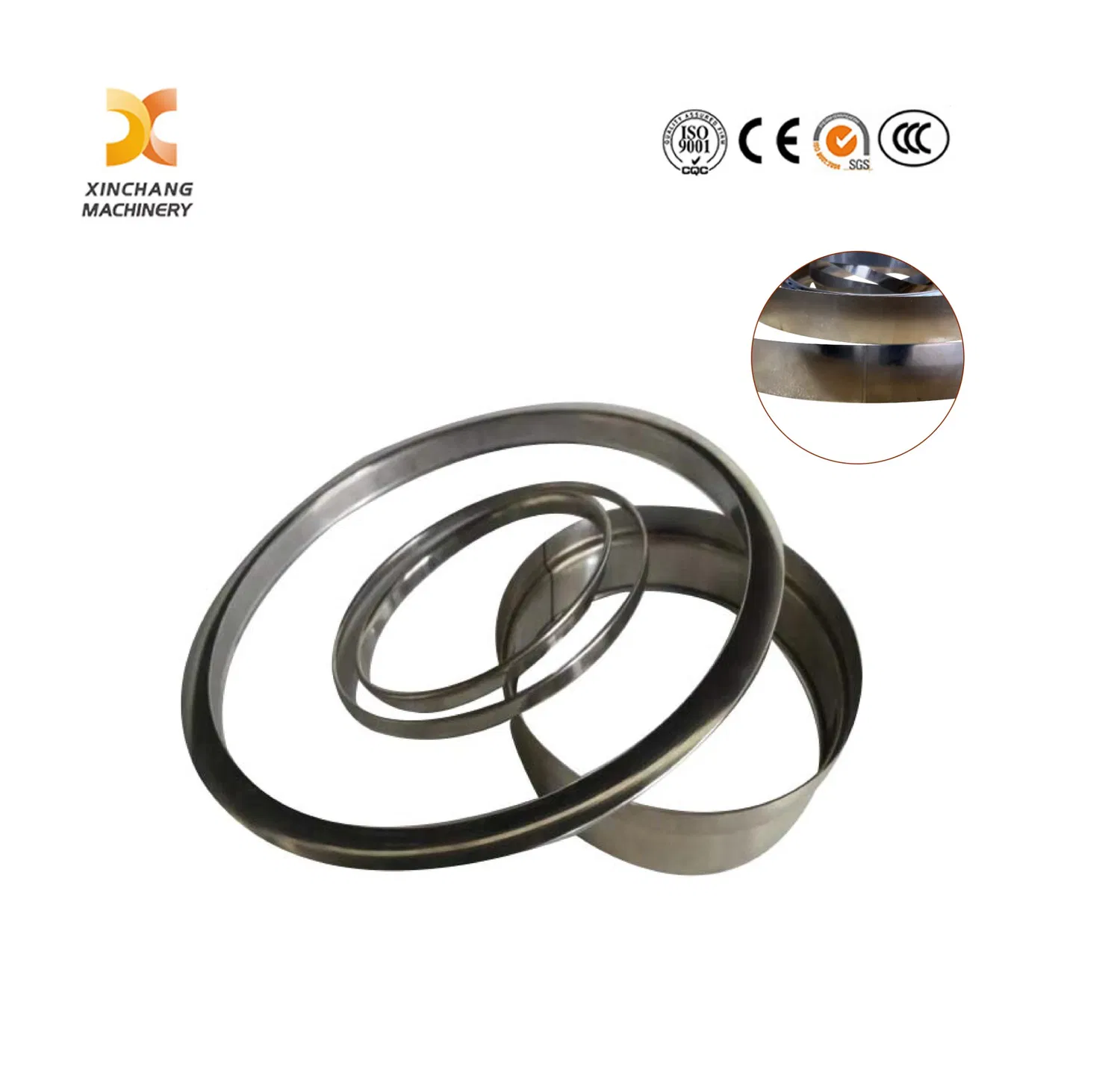

Automatic Continuous Stainless Steel Strip Laser Welder Product Description A. Model and specifications Model XC-K53-1000 XC-K92-1000 XC-K160-1000 Laser power 1000W 1000W 1000W Steel strip width 8-53mm 45-92mm 80-160mm Welding capacity 14-18 pcs/min 12 pcs/min 10pcs/min Steel strip thickness 0.13-0.7mm 0.2-0.5mm 0.2-0.4mm Steel ring diameter 65-700mm 85-700mm 120-700mm Total machine power 5kw 5kw 5kw Input voltage 220V 220V 220V Nitrogen protection Optional Optional Optional Mark function Optional Optional Optional Cooling mode Water Water Water Machine weight 1350kg 1350kg 1350kg Overall size 148x128x168 cm 148x128x168 cm 148x128x168 cm   B. Application It's used for the stainless steel strip of Glass cover, Basket, Flour sieve, Enamel pot, Trash can, Steamer etc. The steel strip specification is 10-200mm width, 0.1-1mm thickness and material SS430/410/304/202/201, GI, Tinplate etc., ideal processing scope for Laser Equipment. C. Advantages Beaut…
