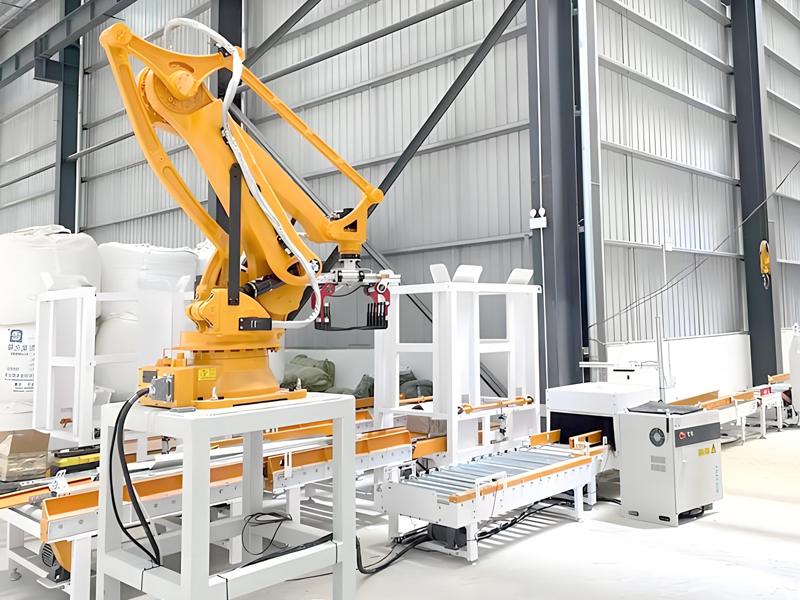

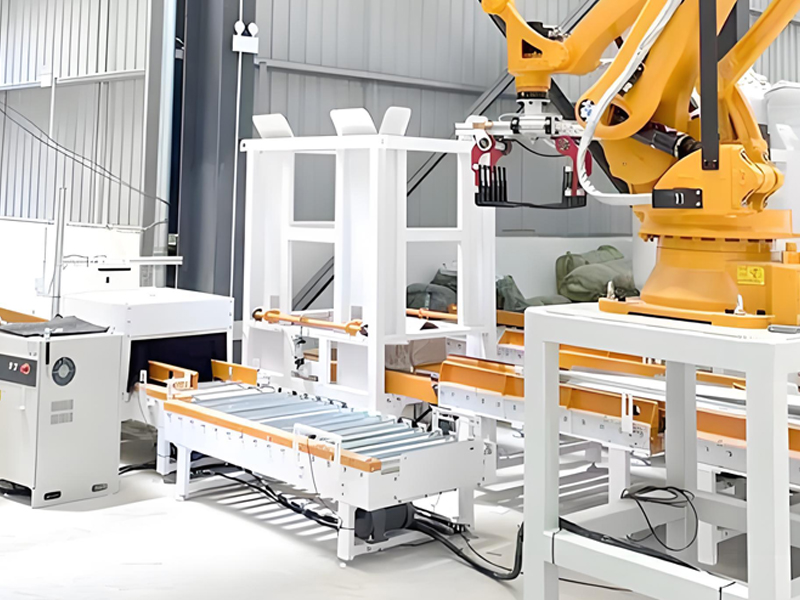

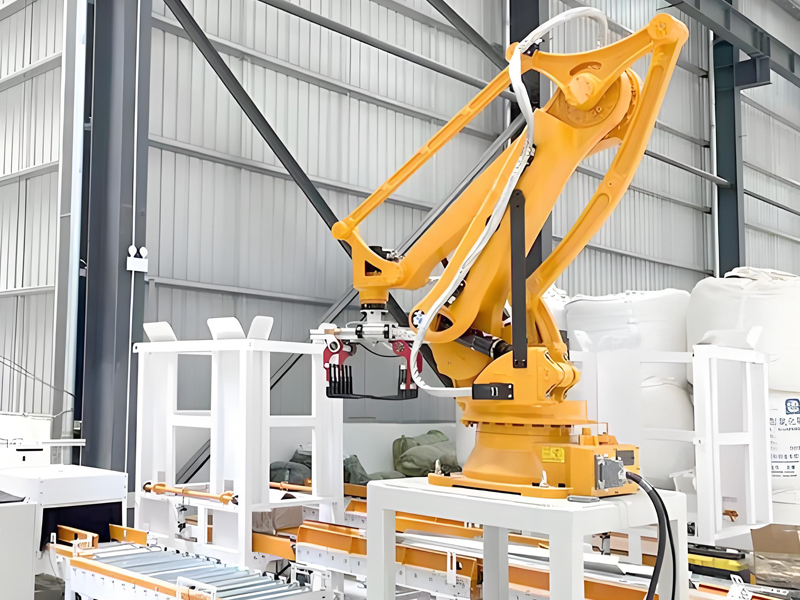

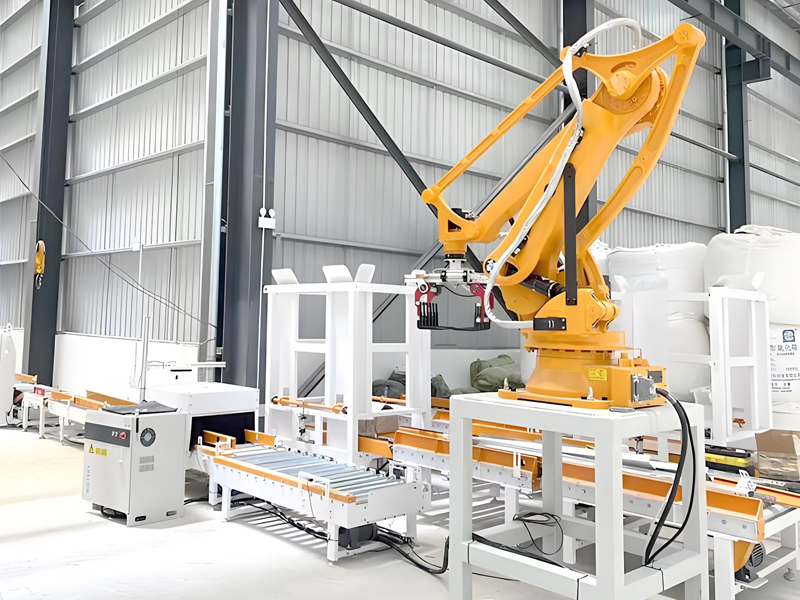

Automatic Palletizing Robot System

The Automatic Palletizing Robot System features high efficiency, flexibility, precision, and low energy consumption, enabling seamless integration with production lines, conveyor systems, and warehouse management systems. It can be used in the packaging and warehousing stages of industries such as food and beverages, chemicals, pharmaceuticals, grain and feed, building materials, and logistics. Palletizing machines are suitable for automated handling and stacking of regular packaging units such as cartons, bags, barrels, and boxes.     Configuration Parameters of Automatic Palletizing System Number of Axes: 4 axes Body Weight: 1500 kg Body Rated Load: 165 kg Maximum Working Radius: 315 cm Repeat Positioning Accuracy: ±2 mm Protection Rating: IP54 Installation Method: Floor-mounted Humidity: 20% — 80% RH (no frost) Vibration: Below 4.9 m/s²     Motion Range of Each Axis J1 Axis: ±180° J2 Axis: +5° - +130° J3 Axis: ±15° — -60° J4 Axis: ±360°   Maximum Speed of Each Axis J1 A…
