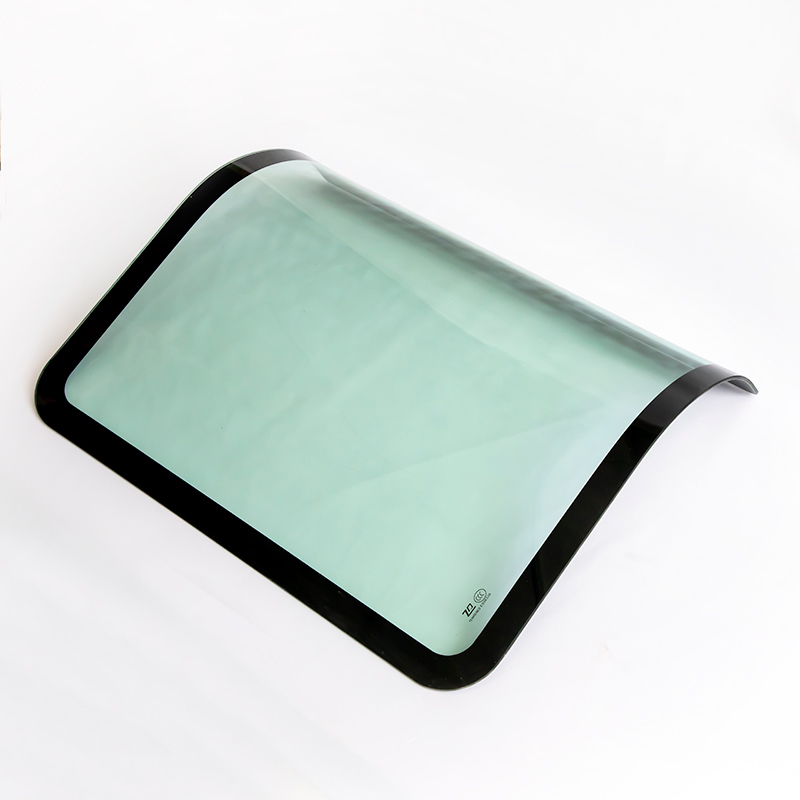

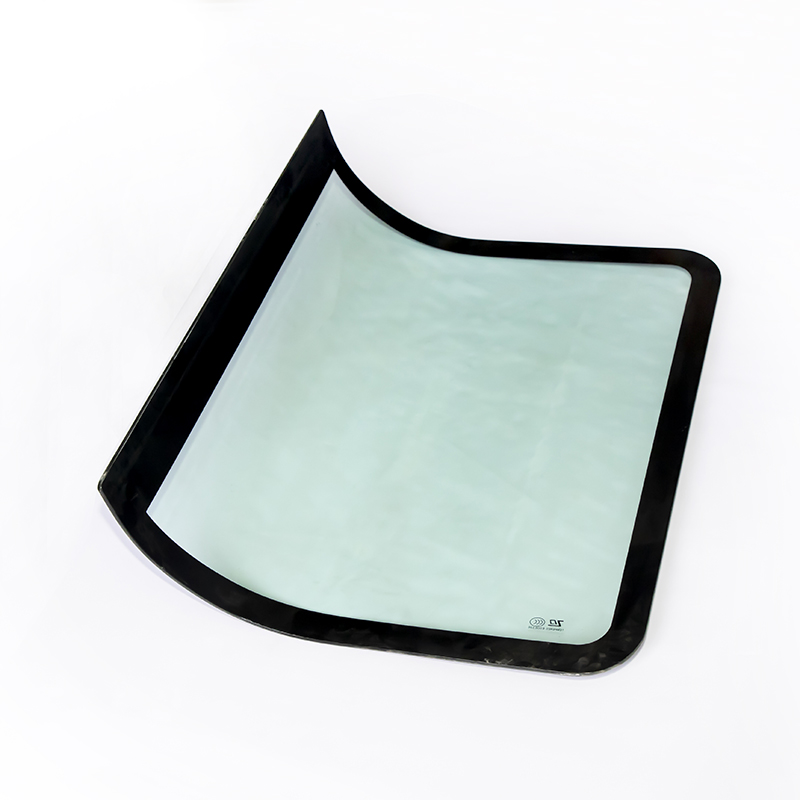

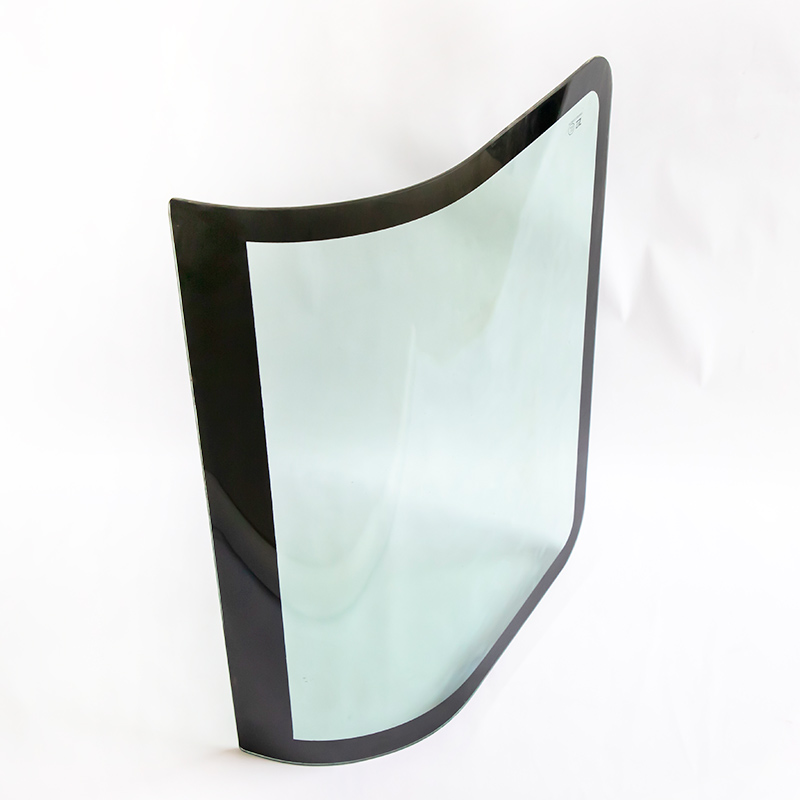

Automotive curved windshield tempered glass

Complete processing flow of curved rear windshield tempered glass (OEM OEM OEM factory standard) All openings, edging, and screen printing must be completed before tempering, and cannot be cut or polished again after tempering 1、CNC cutting and material cutting Cut according to the 3D model of the whole vehicle, with a dimensional tolerance of ± 0.1mm, distinguish the glass rolling texture, and avoid optical deformation. 2、Four sided precision grinding+four corner R-chamfer Rough grinding fine grinding polishing, eliminating micro cracks at the edges; The corners are high-risk areas for self explosion, and the rear gear of buses is forced to be fully chamfered. 3、CNC drilling/slotting The reverse camera hole, license plate installation hole, and electric heating wire terminal hole have polished hole walls without any broken edges. 4、Fully automatic ultrasonic cleaning and drying Remove cutting oil and dust, ensure the adhesion of black glaze ink, and steel without pitting or pin…
