Bellows of Gangway for Railway

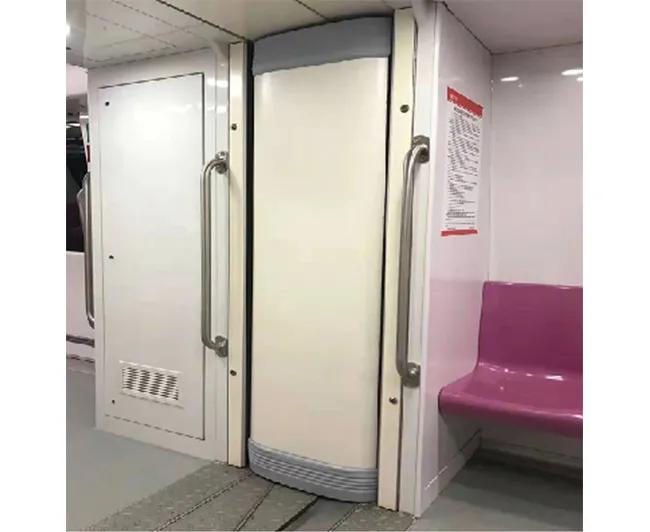

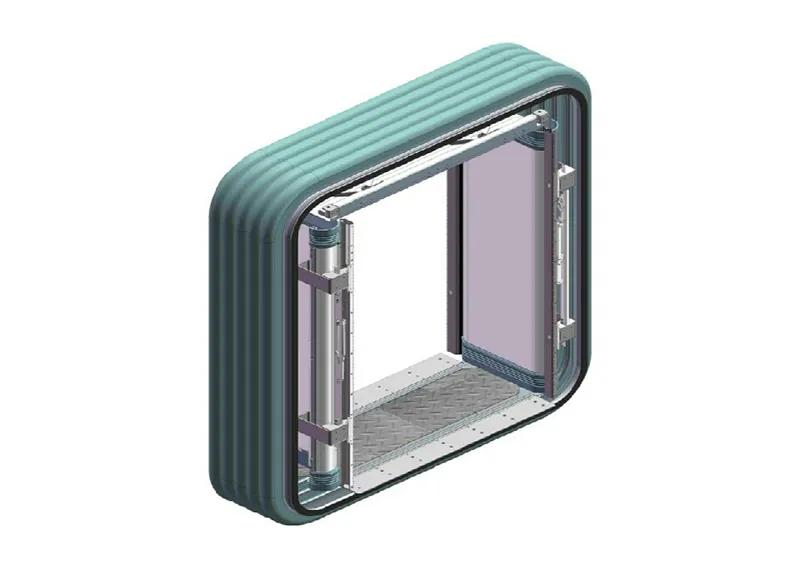

Gangway systems for trains and buses Always safe, extremely durable A vehicle is only as safe as the gangways connecting the vehicle segments – an interface where extreme forces are at work. In the preceding decades, BIDE has made outstanding developments in the production of high-performance gangway systems. Thanks to this demonstrated expertise, the company is the global leader in this area.  The BIDE gangway system is widely used in mainline trains for regional, long-distance, and high-speed transportation, tourist buses and city buses, trams, subways, subways, and suburban railways. No. Performance Parameter Type A Metro Gangway Type B Metro Gangway 1 Car End Distance 920mm 520mm 2 Minimum Passage Width ≥1500mm ≥1300mm 3 Minimum Passage Height ≥1900mm ≥1900mm 4 Fire Safety Standard EN 45545 HL3 EN 45545 HL3 5 Sound Insulation Performance (80km/h) ≥36dB ≥36dB 6 Sound Insulation Performance (120km/h) ≥40dB ≥40dB 7 Thermal Conductivity Coefficient (K Value) ≤3.…
