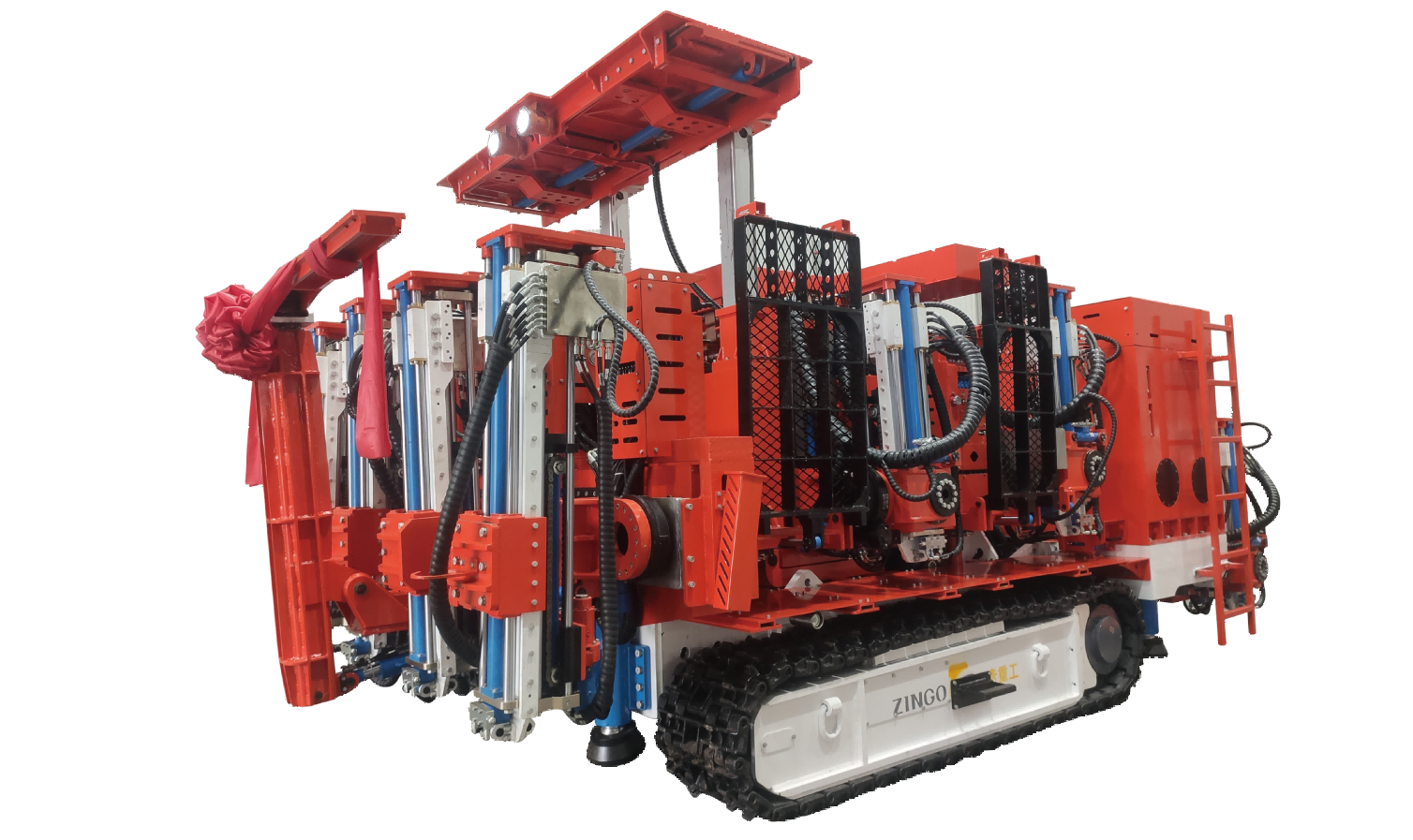

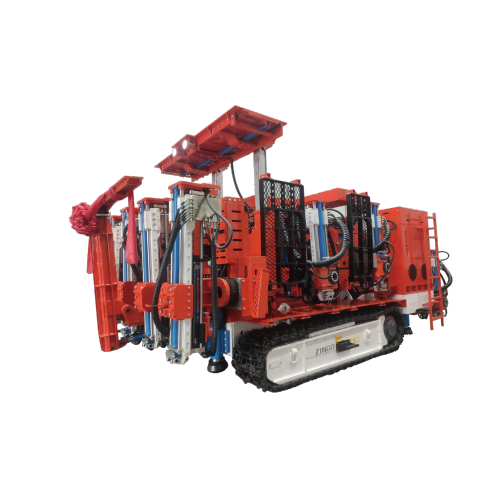

CMM10-36Y -Hydraulic Bolt Drilling Rig For Coal Mines

Main purpose and scope of application: The CMM10-36Y coal mine hydraulic anchor rod drilling truck is designed by our company for tunnels with a cross-sectional width range of 5.0-6.8 meters and a height range of 3.2-5.4 meters in the double tunnel excavation working face. The overall layout is that the first row is equipped with 4 drilling arms for top anchor rods, the second row is equipped with 2 drilling arms for upper anchor rods, the third row is equipped with 2 drilling arms for anchor rods, and the fourth row is equipped with 2 drilling arms for lower anchor rods. The front 8 drilling arms adopt an integrated lifting platform in structure and function, which can adjust the height of operators and drilling machines up and down according to the height of the tunnel through platform lifting, making it very convenient to achieve different heights and angles in the tunnel. Mechanized construction of anchor bolt holes. The two bottom drilling arms at the rear are equipped with indep…
