Compact Chemical Resistant Solenoid Valve

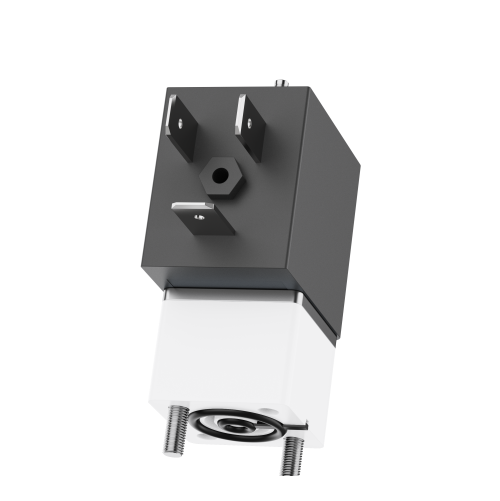

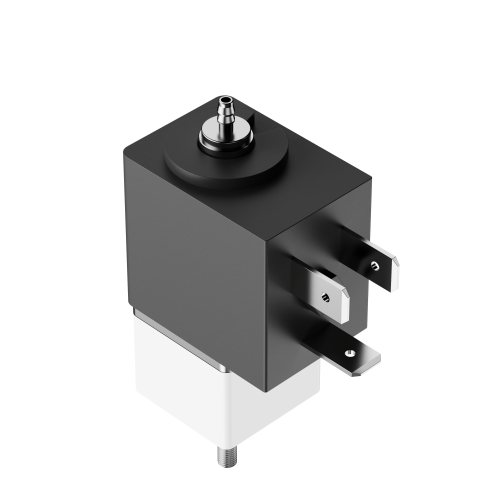

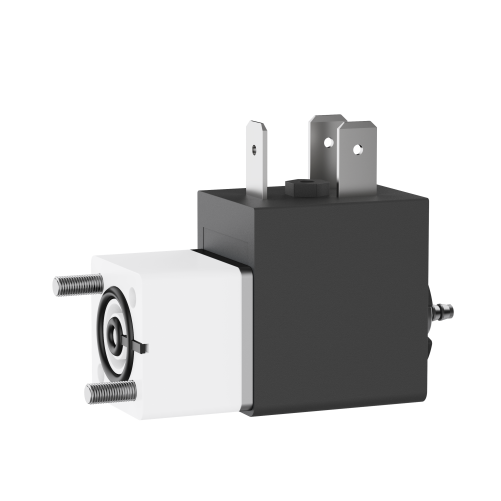

Product Description J-Tron 24V DC solenoid valve is three port direct acting normally closed. It is POM for the valve body. EPDM or FFKM for the bobbing gasket. Customized EPDM from Germany for the valve bushing seal gasket. The operating pressure range is -0.8bar to 4bar. 30ms for the response time. 0 Deg C to 60 Deg C for the media temperature range and ambient temperature range. Bubble tight at 6bar for the leak rate. More than 7,000,000 cycles by lifetime. 24V DC. Flat tabs or wire for the coil connection. Advantage There are lots of benefits of using mini solenoid valves and J-Tron miniature solenoid valve has a lot of advantages: *Low power consumption *High performance: corrosive resistance, excellent sealing performance, high and low temperature resistance *Cost-efficient*Compact design: less dead area and esay to install *Long-lasting life cycles: more than 7,000,000 cycles by life time Application J-Tron DC solenoid valve is made for industrial markets specially for i…
