Compact Wheeled Diesel Generator with Noise Reduction

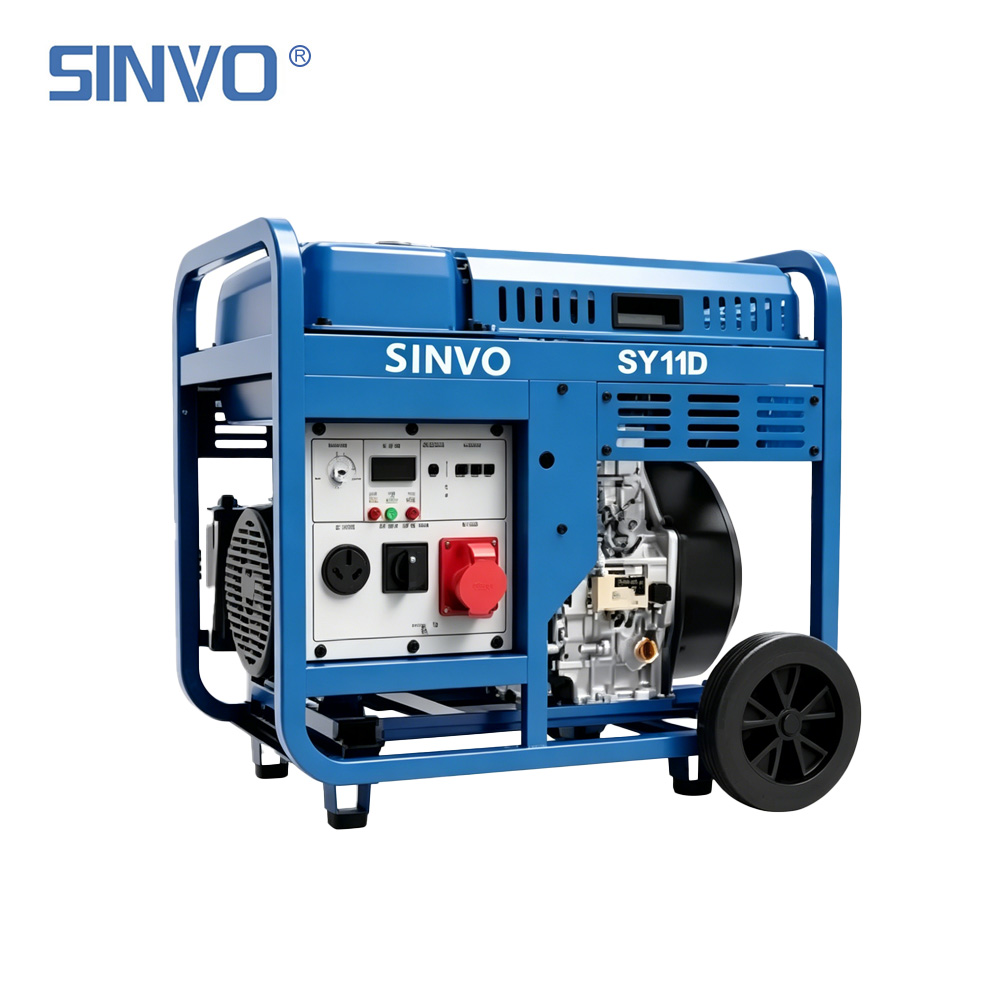

Our Small Diesel Generator with Wheels model SY11D is a heavy-duty open-frame dual-voltage portable Diesel Generator Sets, equipped with push handles and two 9-inch directional wheels for convenient on-site movement. Driven by CP1103FE single-cylinder four-stroke air-cooled diesel engine with electric start, it runs steadily at 3000rpm and outputs 50Hz frequency power. This unit supports 230V single-phase and 400V three-phase equal-power output, with rated power 8kW/10kVA and maximum power up to 9kW/11.25kVA, satisfying high-power demands of construction machinery and industrial equipment. The open frame structure delivers excellent heat dissipation and easy access for daily maintenance. The 18L fuel tank enables 8 hours of continuous operation, with noise controlled below 103dB(A) at 7 meters. The overall dimension is 796×532×685mm and net weight is 140kg. Built-in AVR brush self-excitation constant voltage system stabilizes output voltage to safeguard various electric loads. Each…
