Conductive Cotton Hot Hydraulic Press

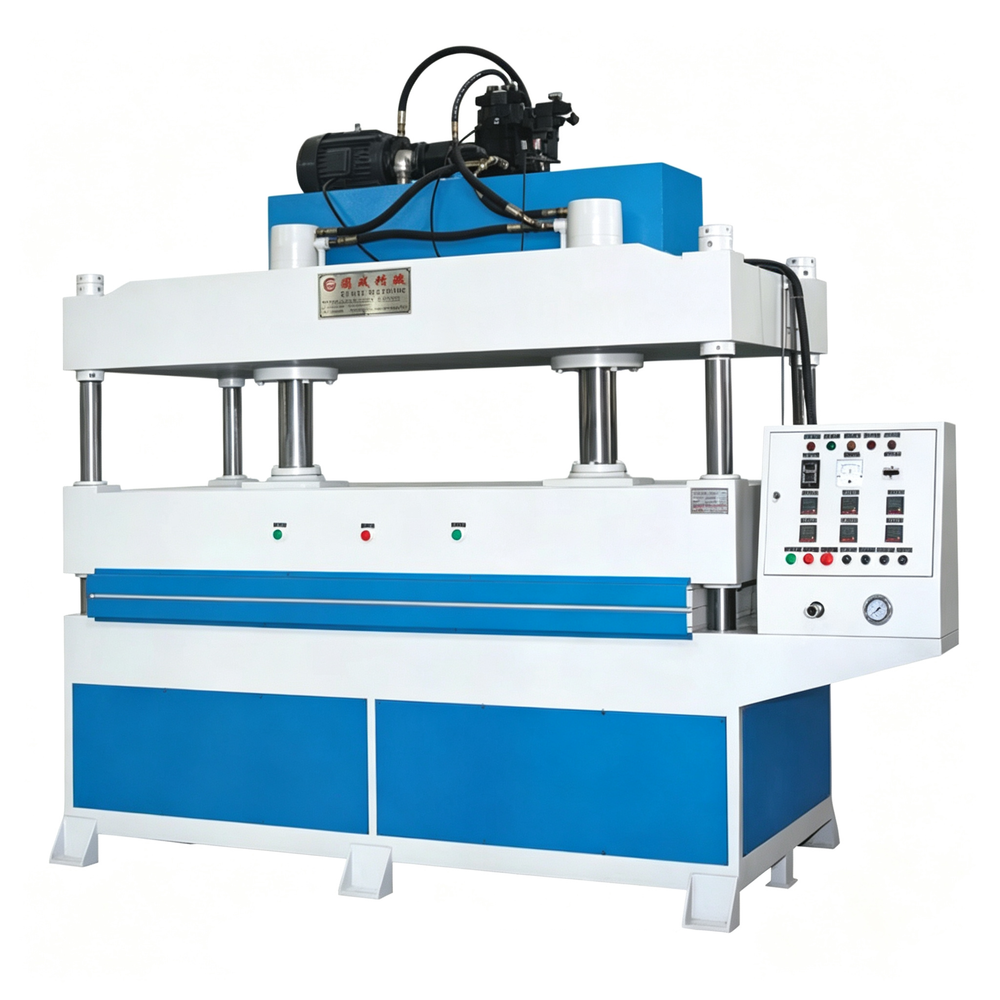

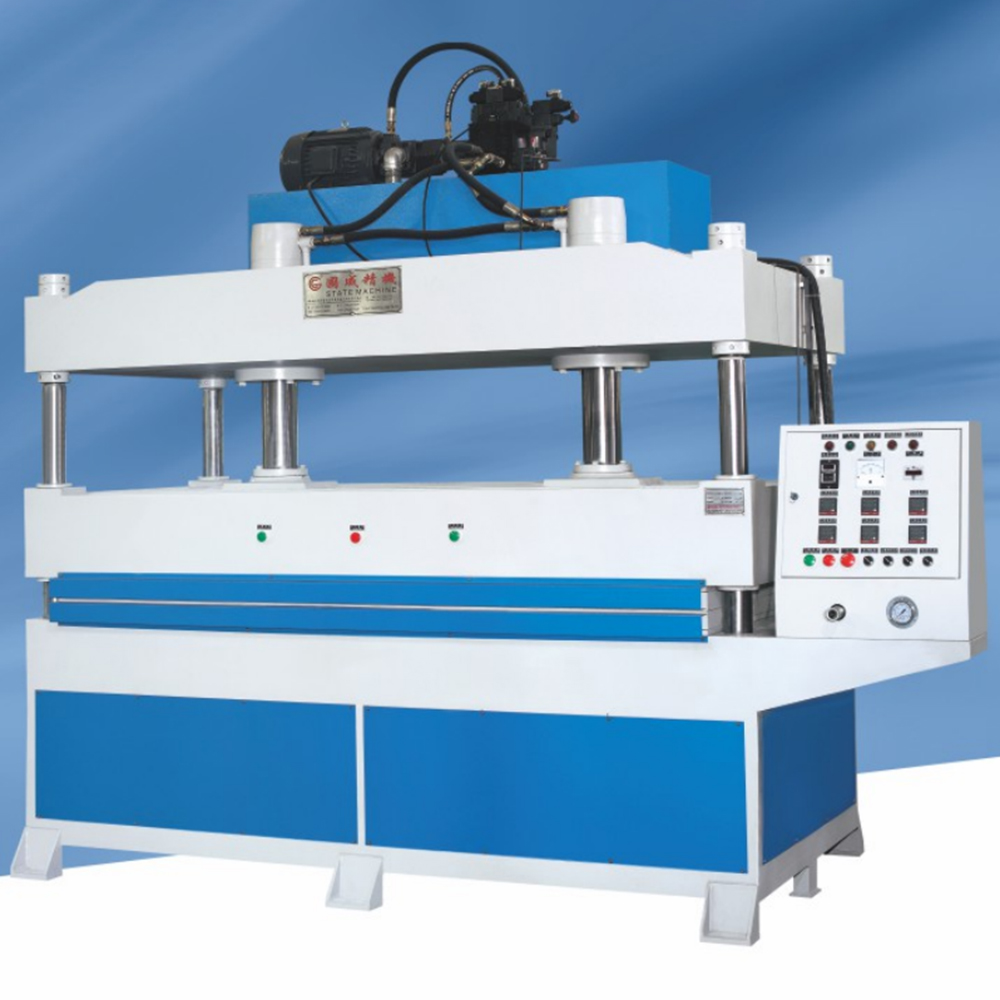

Conductive Cotton Hot Hydraulic Press   Even Heating for Conductive Cotton and Foam Forming   The Conductive Cotton Hot Press is designed for heat pressing, compression forming and embossing work where both pressure and temperature need to be controlled. The machine uses a microcomputer control system, so operators can set the heating process without dealing with a complicated interface. Its four-column guide structure keeps the moving beam running steadily and helps maintain good positioning during repeated pressing. Specification GCS‑10 GCS‑30 GCS‑60 GCS‑80 Rated Pressure 10T 30T 60T 80T Moving Beam Stroke 300mm 300mm 300mm 300mm Table Effective Area 500 × 400 1000 × 600 1300 × 800 1300 × 1000 Motor Power (HP) 3 4 4 7.5 Heating Plate Power (KW) 12 14 18 18 The frame and plates are welded with copper plate and tempered after welding, which helps reduce deformation during operation. The heating plate is machined from cast iron and finished on the working surface…
