CORRUGATOR DOUBLE LEVEL STACKER

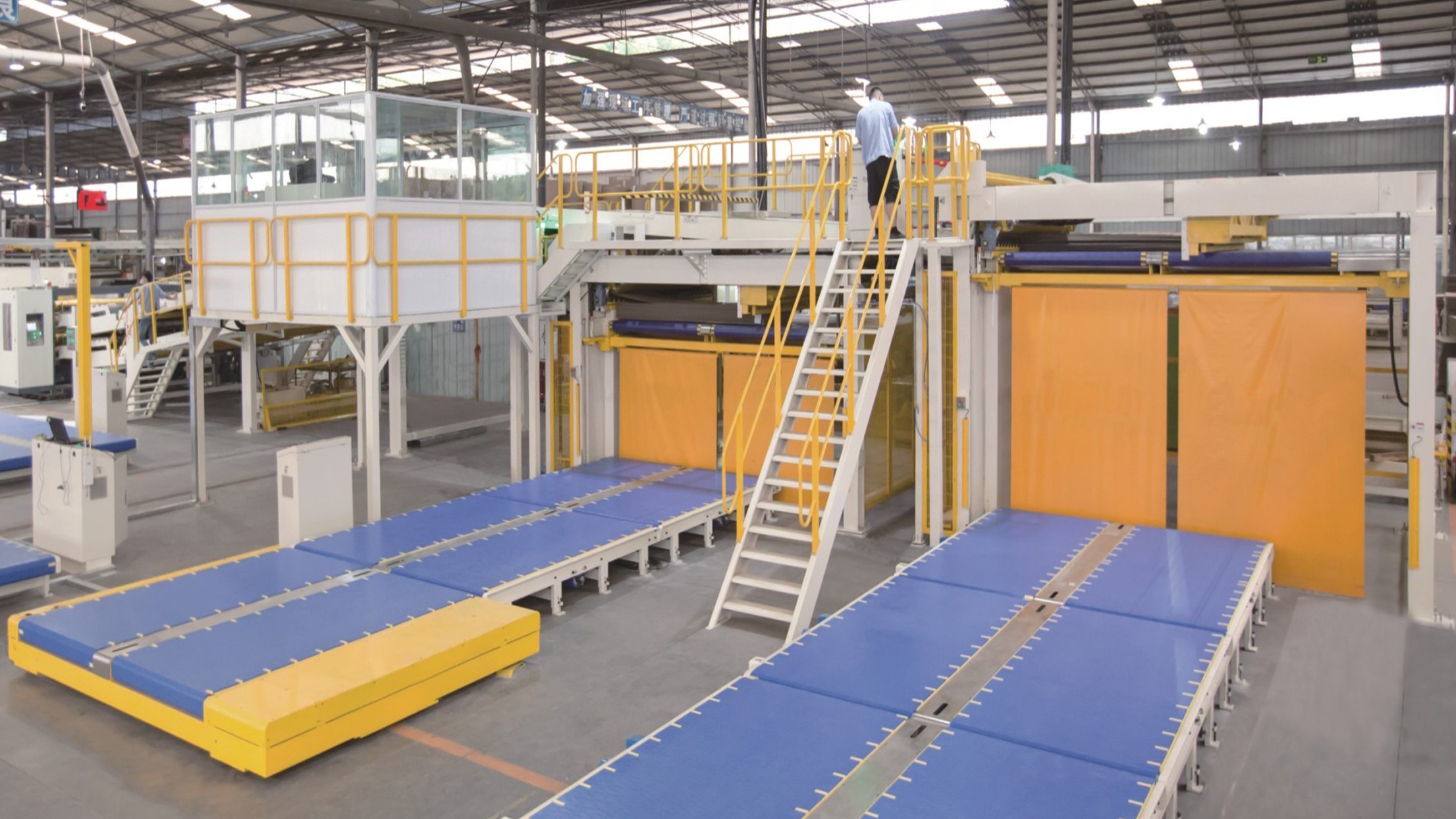

This automatic basket stacker (option single or double level down stacker, up stacker, or up down stacker) collect the whole pile corrugated board after NC cutter of corrugated board production line.   Optional Size: 1800mm, 2200mm, 2500mm, 2800mm, 3100mm, 3300mm, 3500mm. Optional Speed: 250m/min, 300m/min, 350m/min, 400m/min.   Description: 1) The braking device composed of vacuum adsorption belt and automatically controlled brush group can neatly arrange the paperboard on the stacker to ensure its high-quality stacking effect. 2) The automatic pressure control system can set a unique pressure curve for each user and automatically adjust it according to the length, width, ridge type and production speed of paperboard. 3) The paperboard separation mechanism without spacer can separate each stack of paperboards clearly and accurately without redundant stacking. It can successfully complete the order change of 250m / min production line and maintain high-quality stacking ef…
