Custom Shell and Tube Heat Exchanger

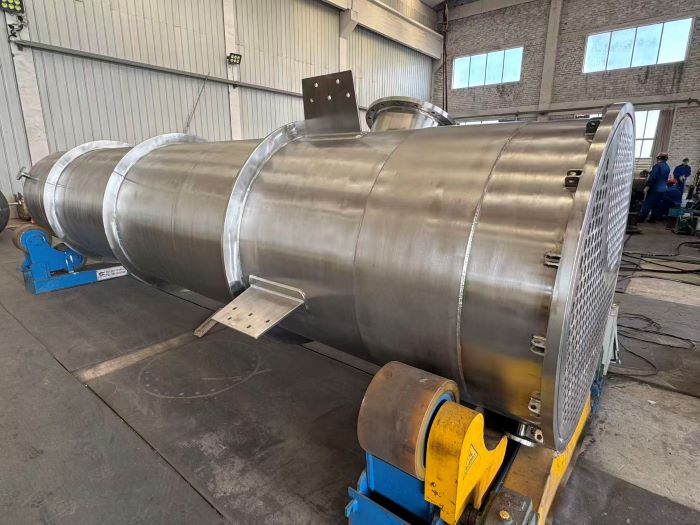

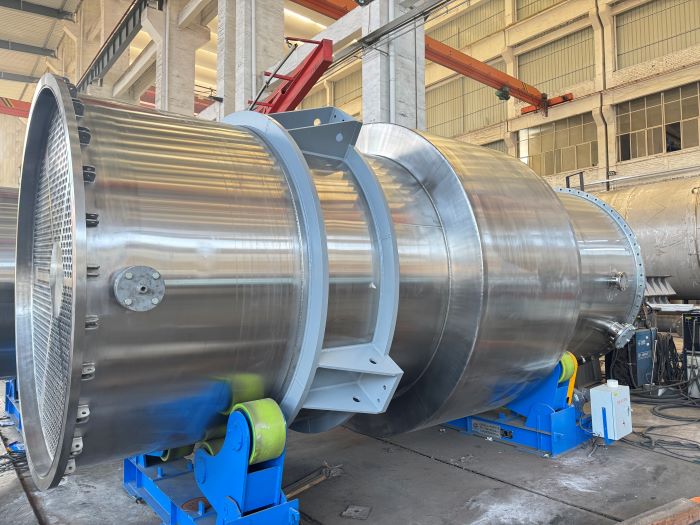

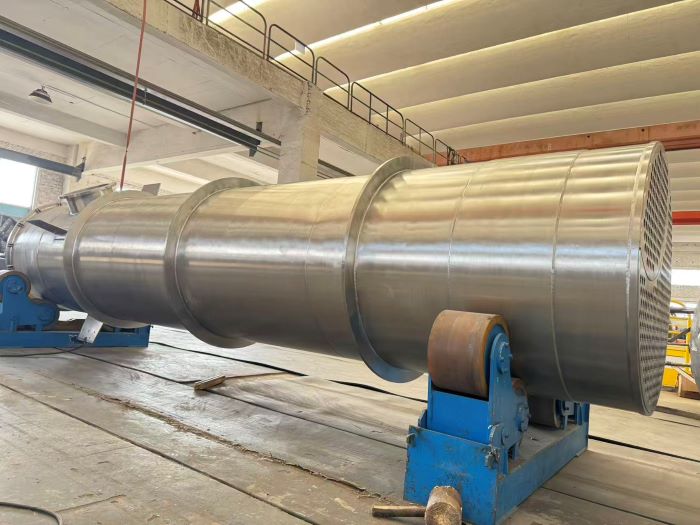

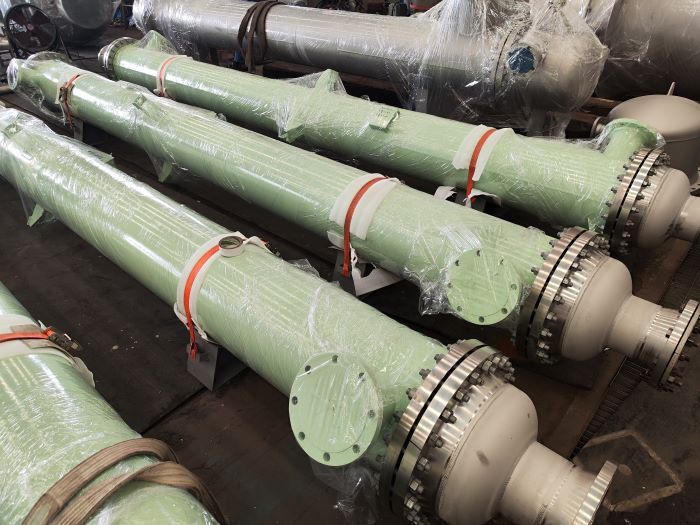

Product Overview What Is an ASME U Tube Heat Exchanger? An ASME U Tube Heat Exchanger is a type of shell and tube exchanger where the tubes are bent into a U shape and connected to a single tubesheet. The tube bundle consists of multiple U-shaped tubes installed inside the shell, allowing fluid flow through the tube side while another medium flows around the outside of the tubes. The unique U tube design eliminates the need for a floating head or expansion joint because the curved tube section naturally absorbs thermal expansion. This makes the equipment particularly suitable for high-temperature services and applications with significant temperature variations. Technical Advantages Advantages of ASME U Tube Heat Exchanger 1. Excellent Thermal Expansion Capability The U-shaped tube design allows tubes to expand and contract freely during heating and cooling cycles. This significantly reduces thermal stress and improves equipment lifespan. 2. High Temperature Resistance Designed for se…
