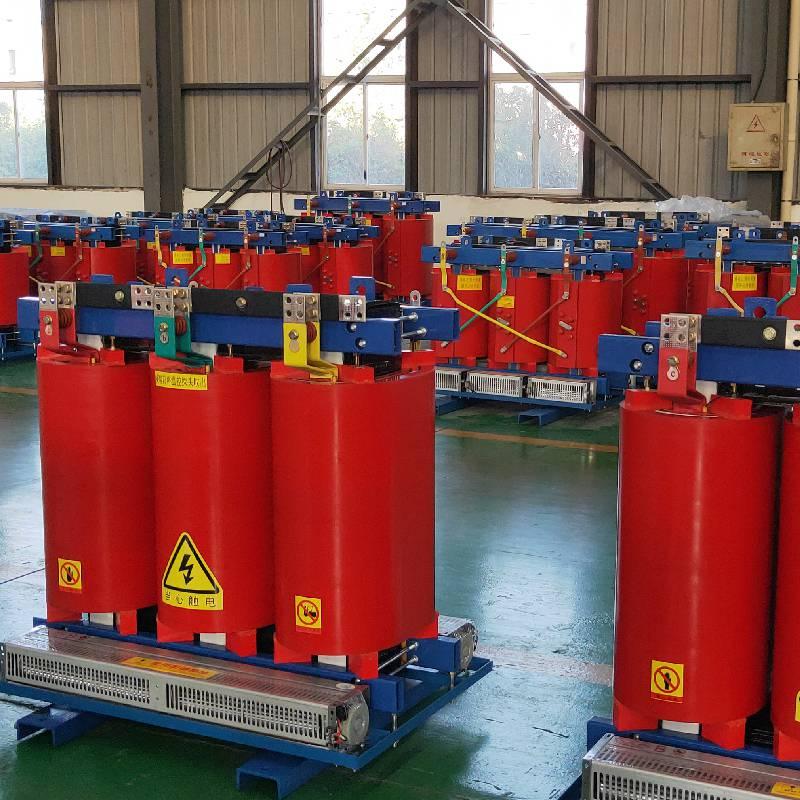

Epoxy resin cast dry transformer

The 10kV SC (B) 13/14/18 epoxy resin cast dry-type transformer can be used as a replacement product for oil immersed distribution transformers. It is a high-performance product for various dry-type transformers, especially suitable for important places such as urban power grids, high-rise buildings, business centers, theaters, hospitals, hotels, tunnels, subways, stations, docks, airports, underground power stations, laboratories, and combination substations. Temperature control, temperature display The temperature control system consists of a temperature controller and PTC temperature measuring elements installed at the top of the low-voltage winding, which is the hottest point of the product, to measure and control the temperature of the transformer. If the temperature of the transformer winding is too high due to overload operation or fault, the temperature controller will send an alarm signal, and it will trip automatically when the temperature exceeds the safe value. When using…
