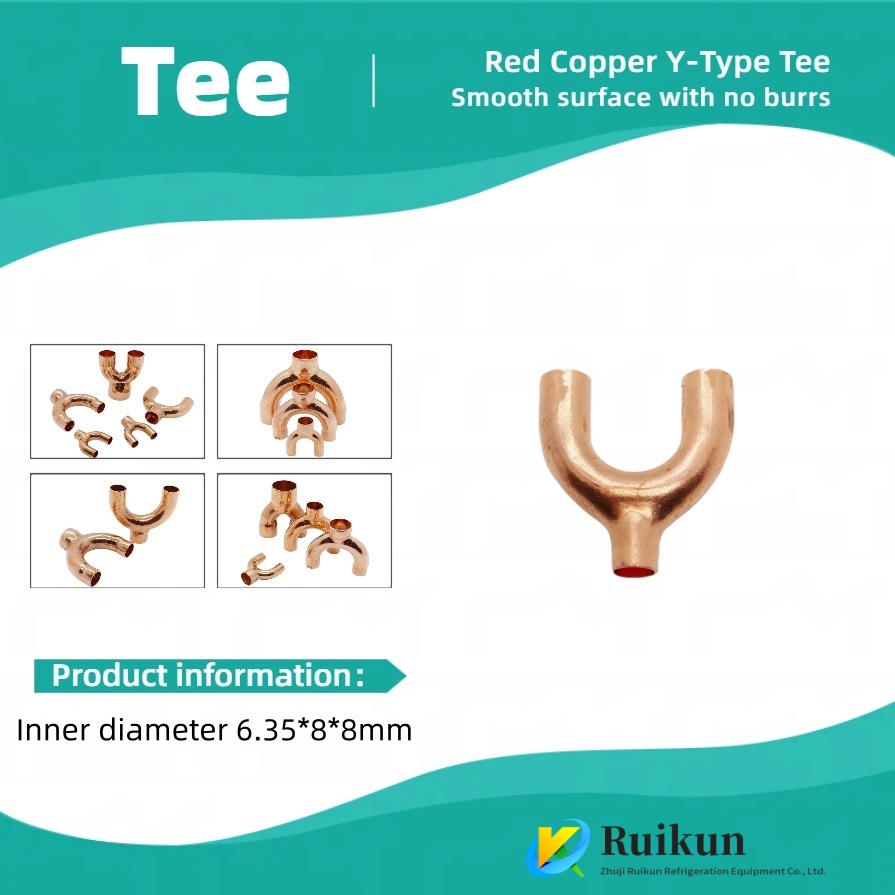

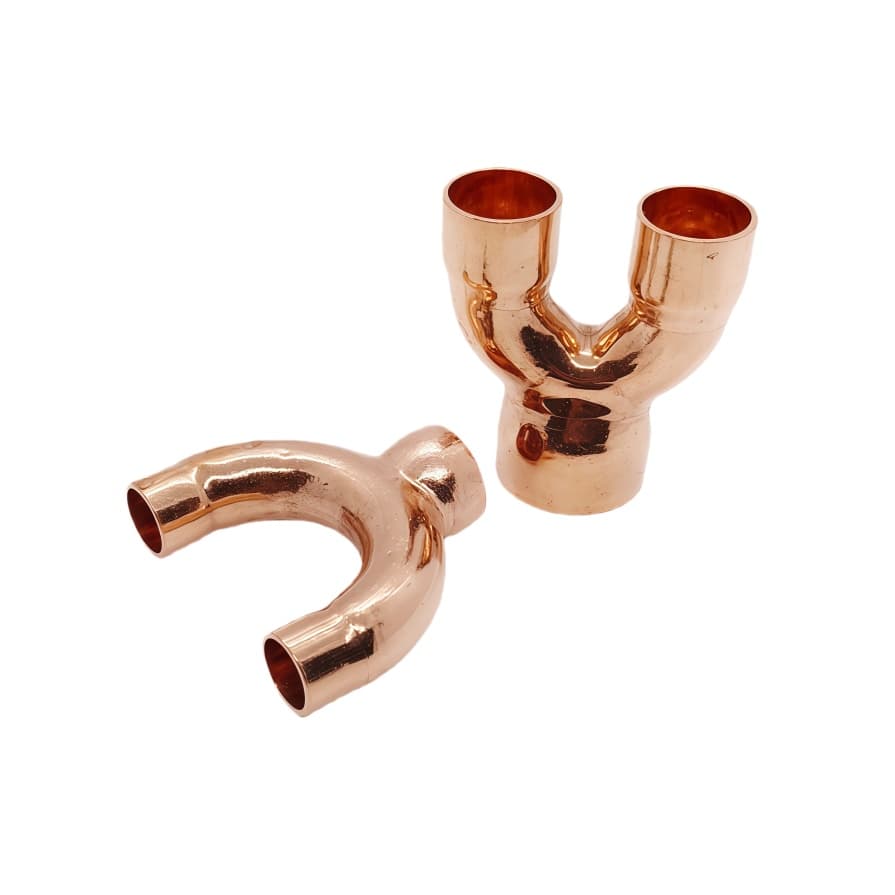

Flared Insert Copper Y-Tee

The flared insert copper Y-tee is made of UNS C12200 phosphorus-deoxidized copper with copper content ≥99.9%, complying with ASTM B819 standard. Its socket end undergoes professional flaring treatment, and the bell mouth angle is precisely controlled at 74°-76°. The plug-in connection design makes the assembly gap between the copper pipe and the fitting ≤0.1mm, forming a firm sealed structure after welding. The Y-type branch pipes are distributed at 30° angles, ensuring uniform medium diversion and avoiding eddy currents, which can reduce cold loss by more than 15% in cold storage refrigeration systems. The thickness of the thickened fitting body reaches 2.5mm, which is 0.8mm thicker than ordinary fittings, with significantly improved mechanical strength and excellent impact resistance. The product cleanliness reaches medical grade, with inner wall residues ≤0.03g/m², which can be used for biomedical fluid delivery. Standardized sizes cover various reducing combinations, with conveni…
