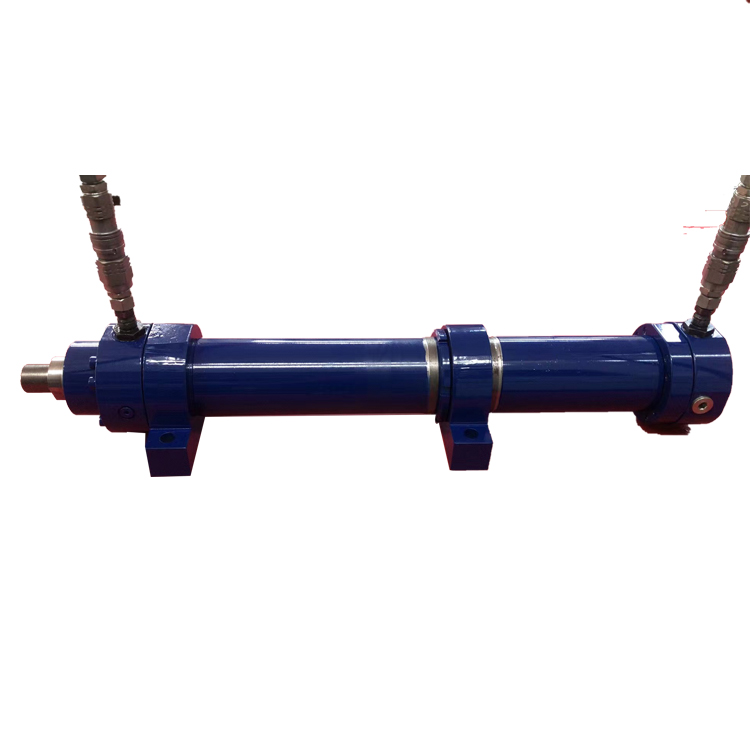

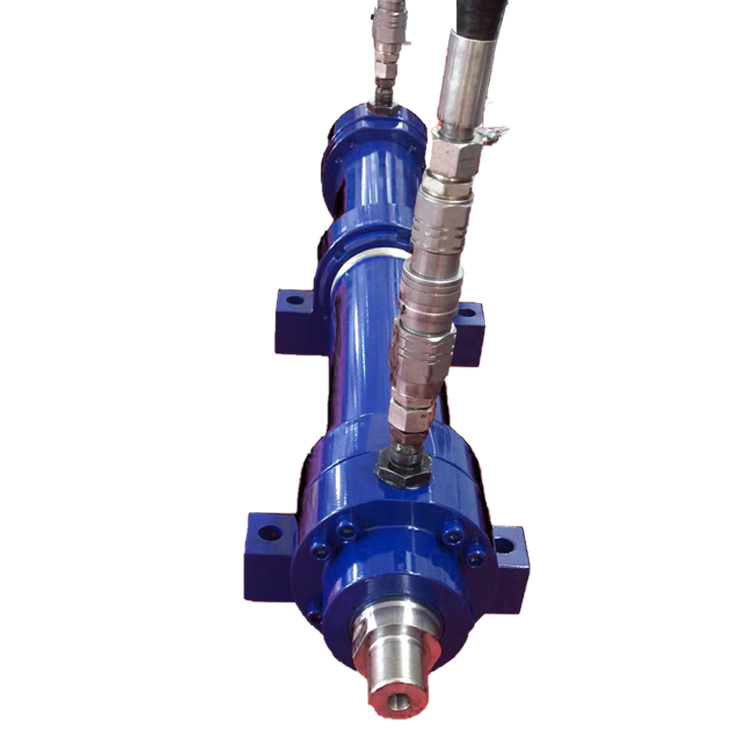

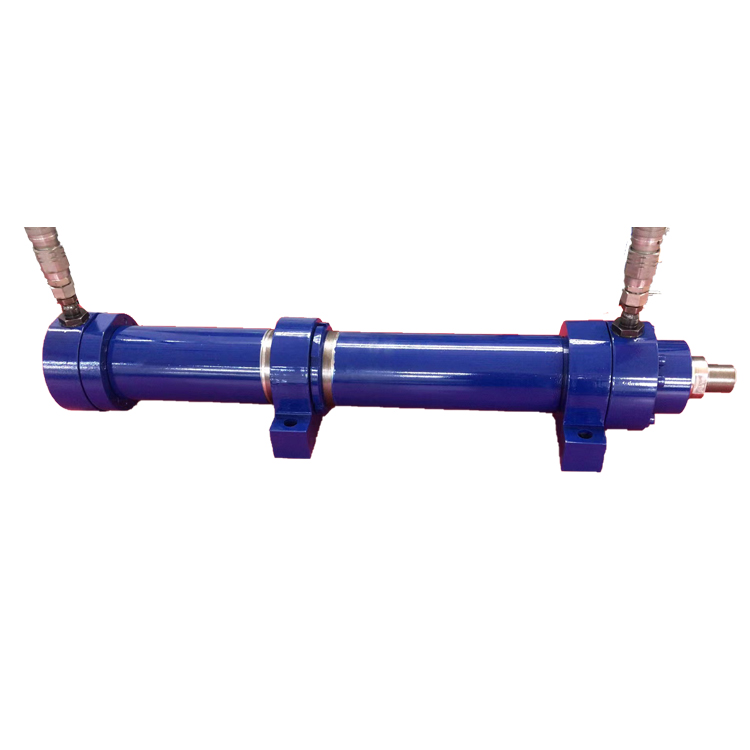

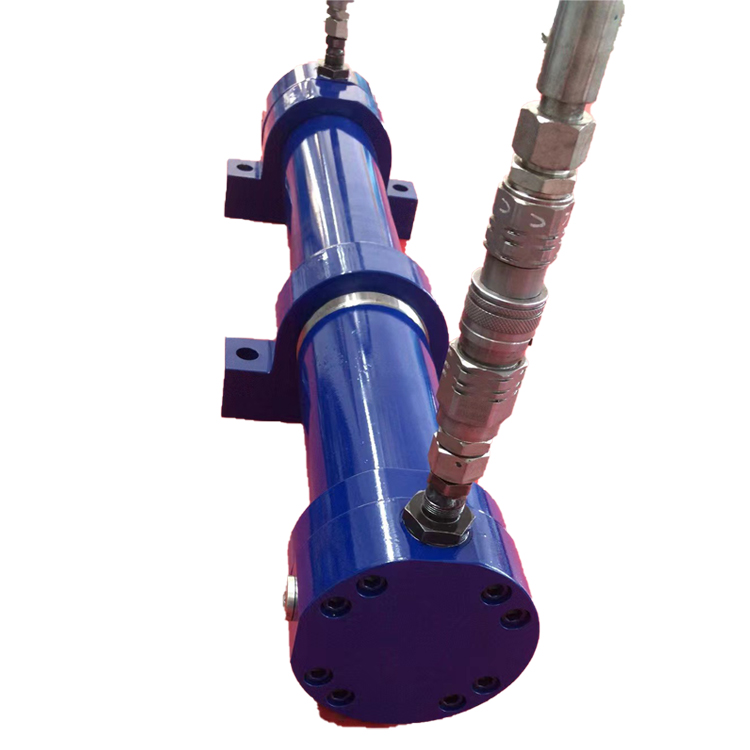

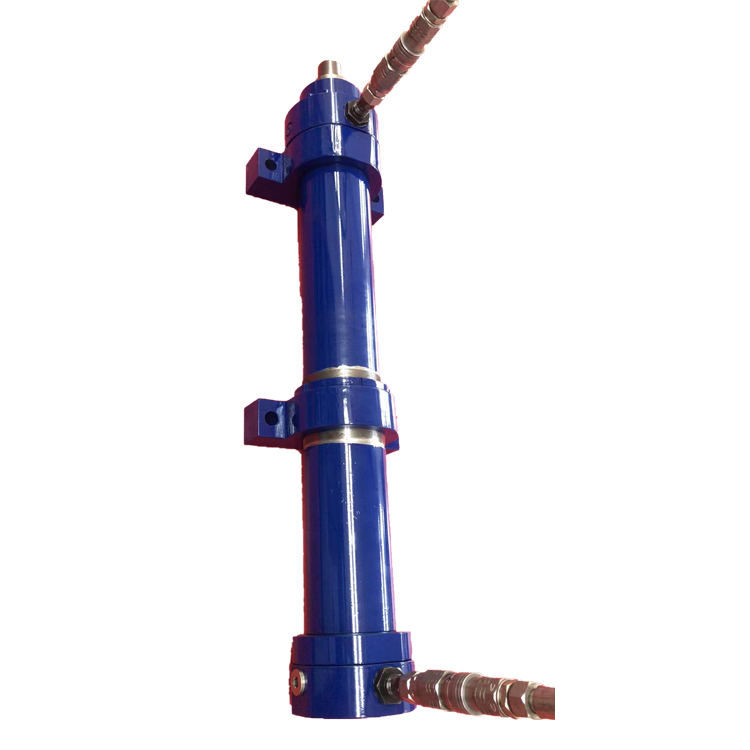

Horizontal clamping hydraulic cylinder

Horizontal clamping hydraulic cylinders provide precise lateral force for workpiece fixation in manufacturing systems, delivering uniform pressure distribution across flat surfaces. These specialized actuators feature low-profile designs with reinforced tie rods to withstand side loads during machining operations, maintaining clamping forces from 500kg to 50 tons with positional accuracy within ±0.05mm. Their through-bore piston designs enable balanced force application, while integrated wear strips prevent metal-to-metal contact in high-cycle applications. The cylinders operate reliably in harsh conditions, with chip-resistant wiper seals and hardened guide surfaces that endure continuous vibration in metal cutting processes.     Critical applications include CNC machining centers where they secure aluminum aerospace components during high-speed milling, preventing vibration-induced surface defects. Automotive production lines utilize them for engine block fixturing during precision…
