Integrated Silicone In-Mold Heat Transfer Molding Machine

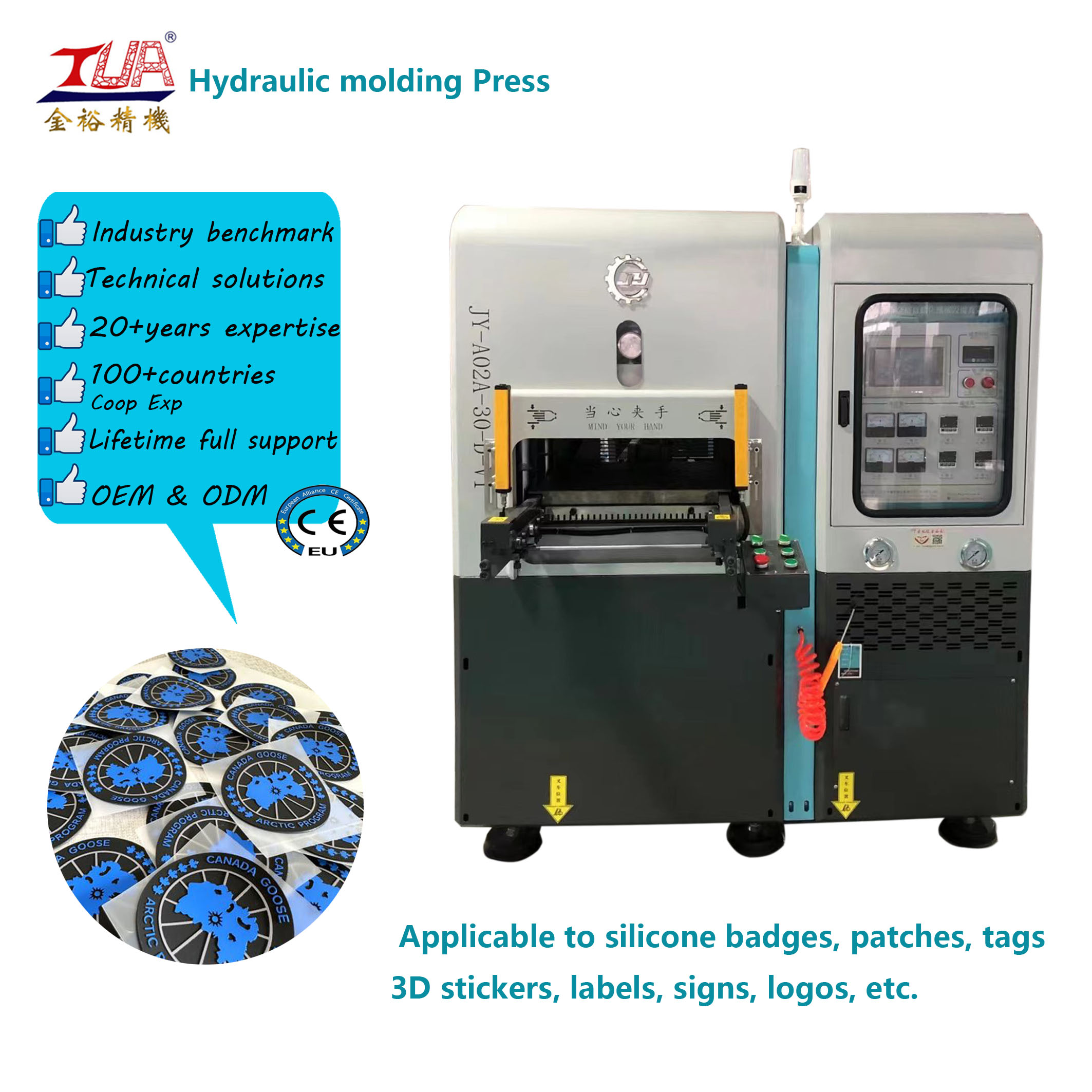

Integrated 3D Silicone In-Mold Heat Transfer & Molding Production Line (Silicone In-Mold Heat Transfer Machine) Model JY-A02A-30-D-V1 JY-A02A-30-F-V1 JY-A02A-30-D-V3 Voltage 380V,3phase 380V,3phase 380V,3phase Max working pressure 30 Ton 30 Ton 30 Ton Work area 400*400mm 300*300mm 400*400mm Power 3.7kw 3.7kw 3.7kw Total Power 16kw 16kw 16kw Max temp 400℃ 400℃ 400℃ Vucuum pump power 1.5kw 1.5kw 3kw Size 1460*1700*1680mm 1250*1530*1550mm 1450*1780*1470mm Weight 1600kg 1200kg 1650kg   This Jinyu Machinery's  Silicone In-Mold Heat Transfer Machine is currently the most advanced and efficient equipment solution for producing branded 3D silicone labels. It combines the two processes of "silicone drip molding" and "heat transfer printing" into one, directly completing the molding of silicone and bonding with fabric within the mold.   What is "In-Mold Heat Transfer"? Traditionally, silicone patches are made first, followed by a secondary heat transfer process.…
