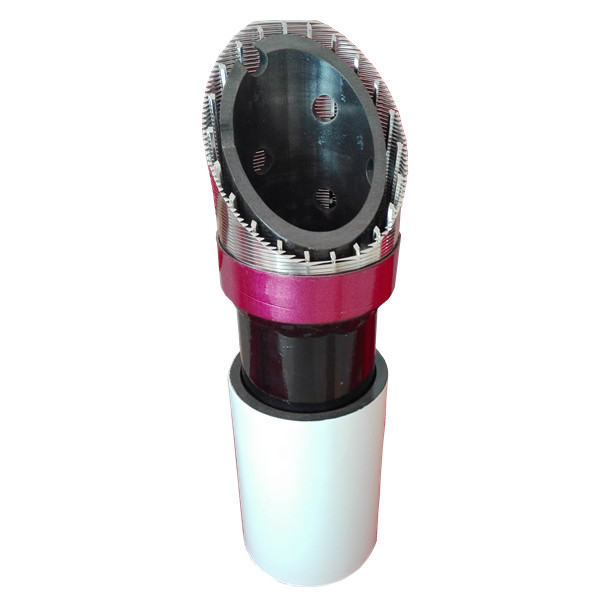

Johnson Screen Wedge Wire Sand Control Pipe

1. Brief Introduction The Johnson screen wedge wire sand control pipe is a kind of tubal johnson screen. It is made up of base pipe (perforated seamless steel pipe) or PVC pipe, combined with high precision wedge wire screen, in accordance with API standard. The V-shaped section structure of wedge wire greatly reduces the risk of blockage, operates more efficiently, and ensures the smoothness of water filtration. 2. Parameter 2.1 Basic Data Sand Control Screen (mm) ID(mm) OD(mm) OD (base pipe)(mm) Rib Numbers Notes  60 63.1 76 60.3 18   73 75.8 89 73.0 20   89 91.7 105 88.9 24   114 117.2 130 114.3 30   127 130.3 143 127 34   140 142.7 155 139.7 36   168 171.6 184 168.3 44   178 181.1 194 177.8 46   194 197.2 210 193.7 50   219 222.7 235 219.1 56   245 248.5 261 244.5 58   273 278.0 291 273.0 66   340…
