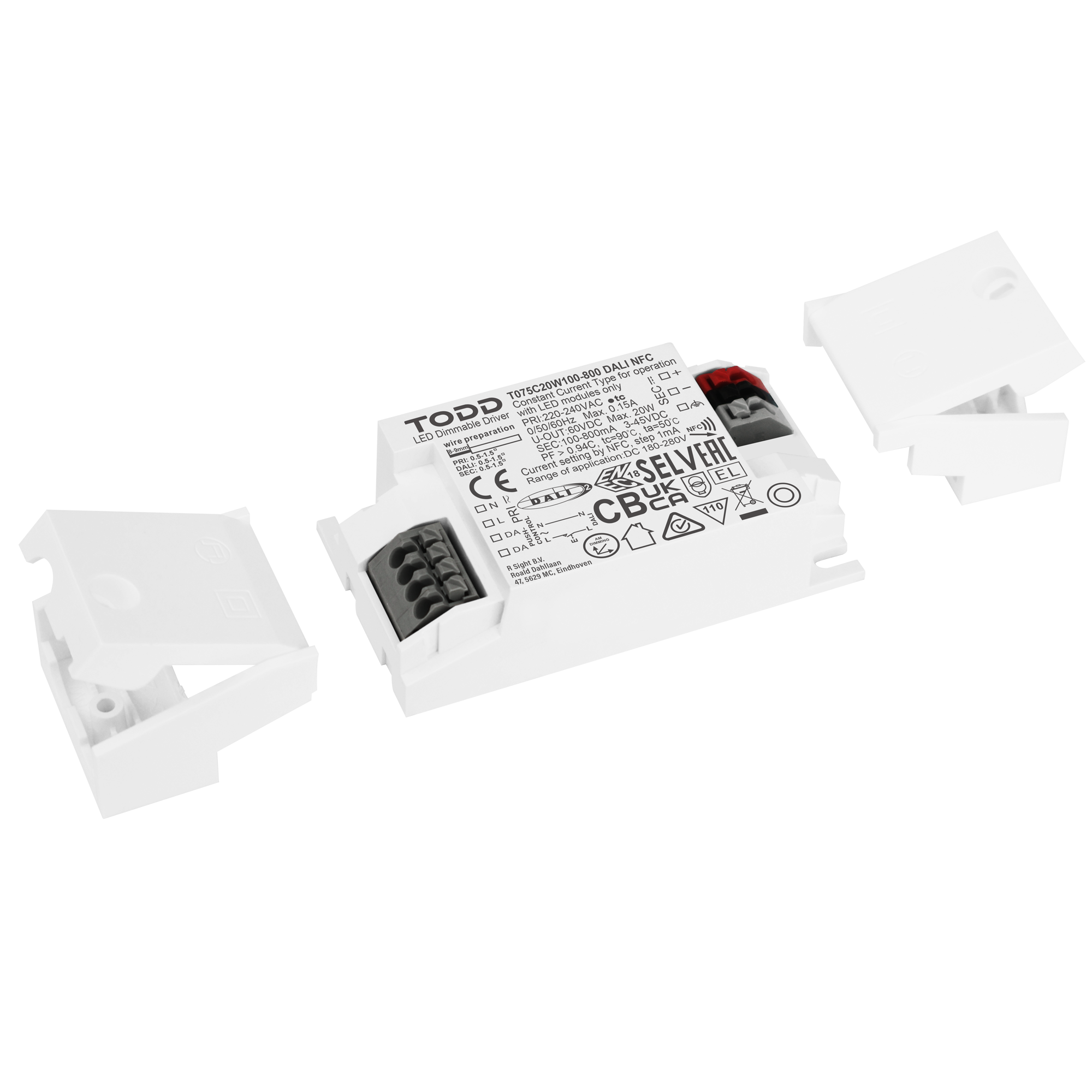

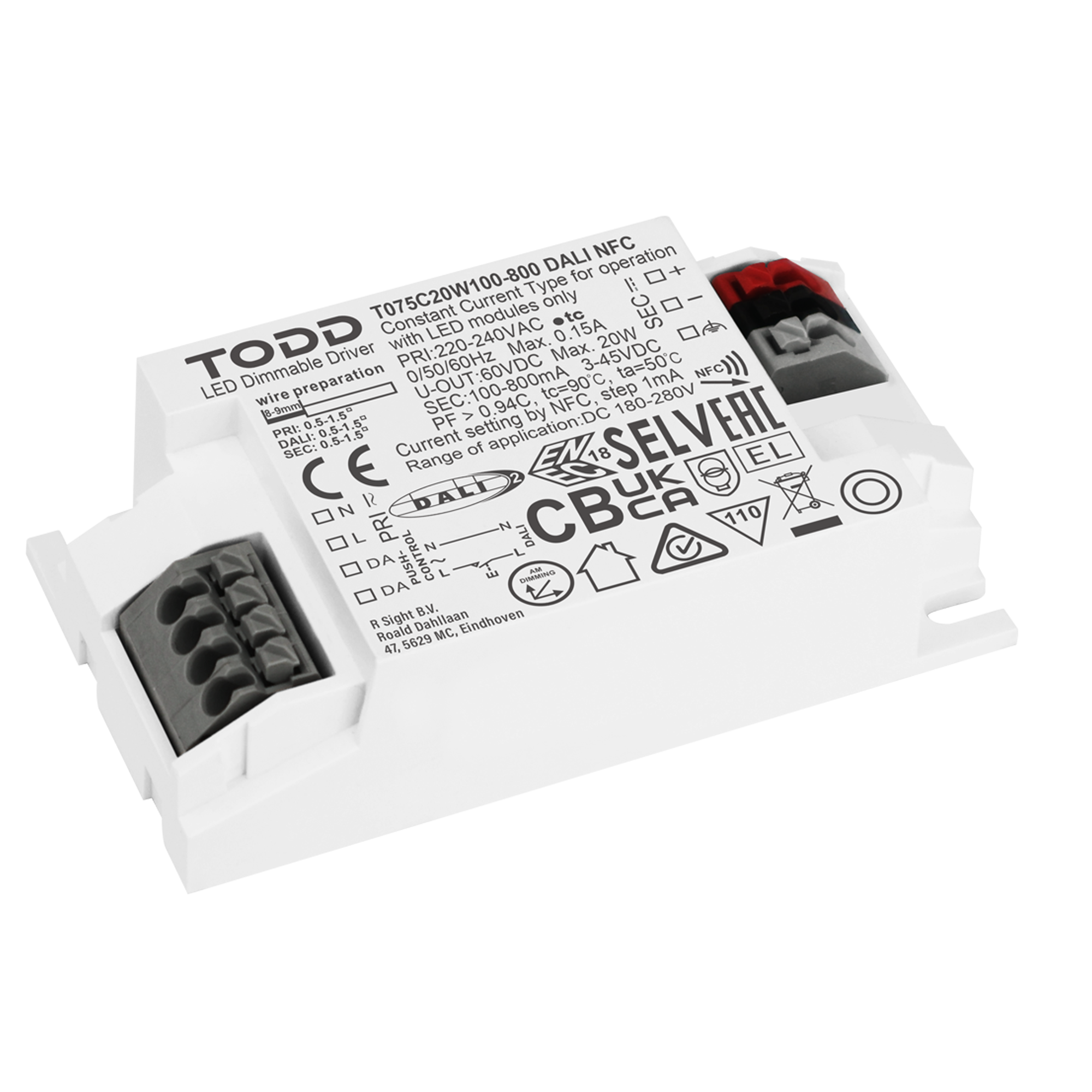

LED Driver DALI NFC 100-800mA 20W

The housing is made from V0 flame retardant PC materials from COVESTRO. Small size and light weight. Wide range of applicable lamps. Class 2 LED driver, Safety Extra Low Voltage (SELV). Innovative thermal management technology intelligently protects the life of the LED driver. Overheat, overload, short circuit protection and automatic recovery. Up to 50,000-hour life time. 5-year warranty (AiSHi capacitor). PRODUCT DESCRIPTION TECHNICAL SPECIFICATIONS HOUSING CHARACTERISTICS FUNCTIONS Constant Current LED Driver Output Current adjustable via NFC Switch dimmable ：DALI 100-800mA 3-45V up to 87-88% Efficiency Life Time 50.000h 5years warranty Input Voltage 220-240VAC Frequency 0/50/60Hz Power Factor ≥0.94 Current ripple (< 120 Hz) ±3% IP Grade IP20 Insulation Class II Built-in/Independent 75x40x21mm Overload Protection Short Circuit Protection SELV NFC current setting NFC Reader(optional) Feature:
Easily on-line read a output current from a driver or write…
