Micro slotless M0.6 copper screws

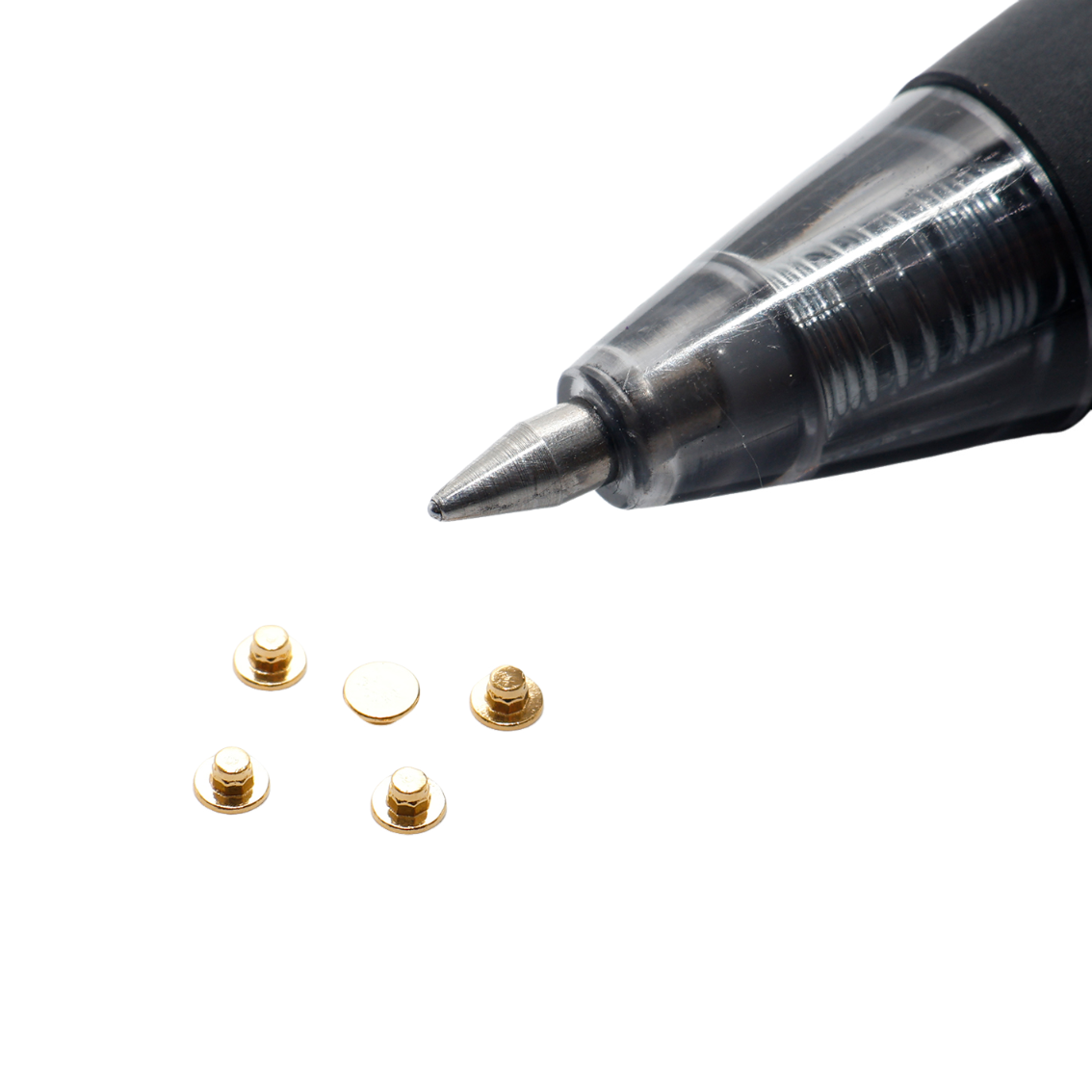

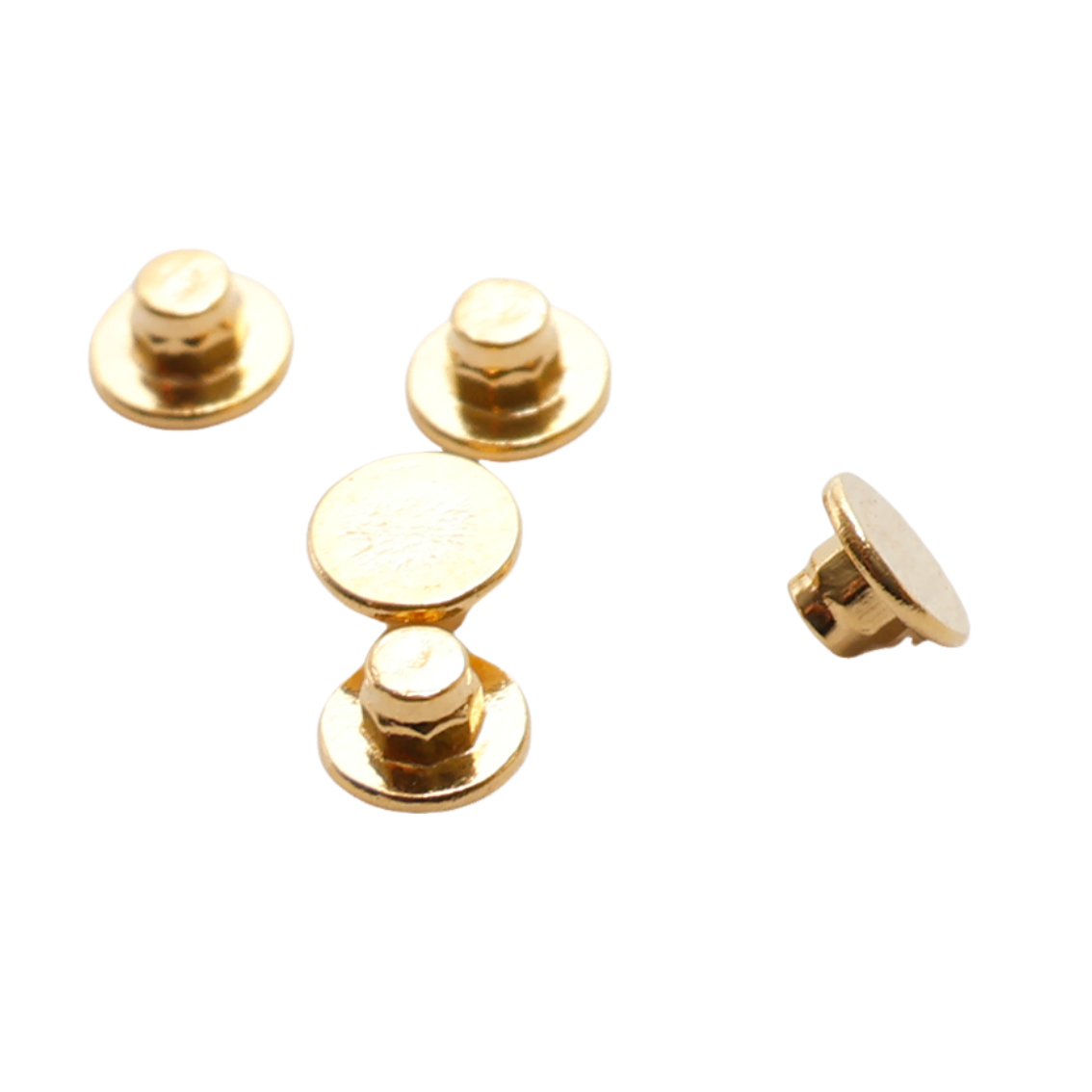

Minimum order quantity for M0.5-M0.8 size screws: 20,000 pieces.   The Micro slotless M0.6 copper screws is an extremely compact Mini screw with a diameter of only 0.6 mm and a length of 1.2 mm. It is made of nickel-plated oxygen-free copper. The slotless polished rod design allows it to be accurately implanted into a 0.25 mm substrate through a vacuum nozzle at one time, making it a common micro screw solution in smartphone camera modules and MEMS sensors.   As a Precision screw, its thread accuracy reaches 6 g and its coaxiality is ≤0.01 mm; the contact resistance is <1 mΩ after mirror polishing, and it is pre-coated with low-temperature curing conductive glue. After 10⁶ thermal cycles, the locking force attenuation remains <2%, ensuring high-frequency signal integrity and long-term reliability.   After passing ASTM F837 certification, this part can be directly used as Aerospace Micro Screws for CubeSat payload plates and drone flight control ground networks. It weighs only…
