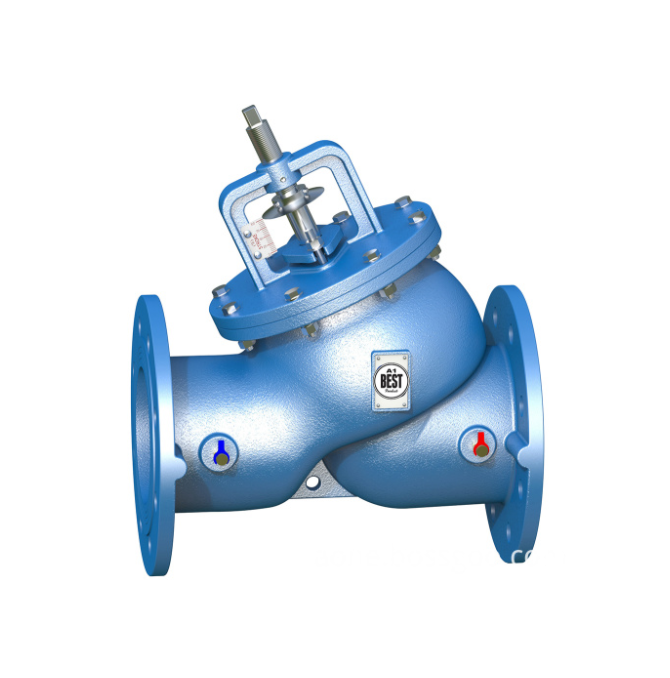

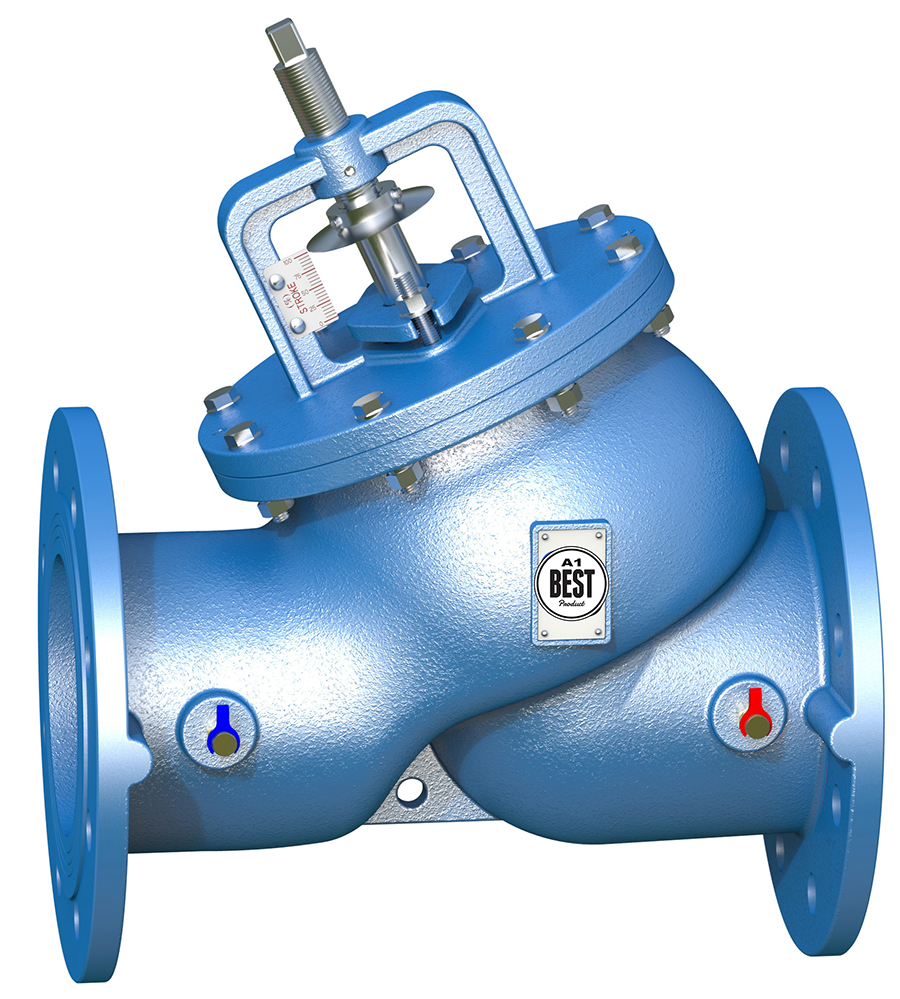

Multi Function Valve DN200 

Product Name: MV08 Multi-Function Valve   Feature: 1. Horizontal or vertical installation 2. Ring seal, ensure no leakage 3. Bronze / Stainless steel trim--long service life 4. Position indicator 5. No lubrication needed 6. Metering Connections 7. Removable Cover design, easy to maintain inline   Material Body: Ductile Iron Cover: Ductile Iron Stem: Stainless Steel Disk: Ductile Iron Spring: Stainless Steel   Pressure Temperature Rating:       Class JIS10K/150LB/PN10 JIS16K/PN16 Working Pressure 10kgf/cm2 16kgf/cm2 Temperature -10°C~120°C -10°C~120°C    …
