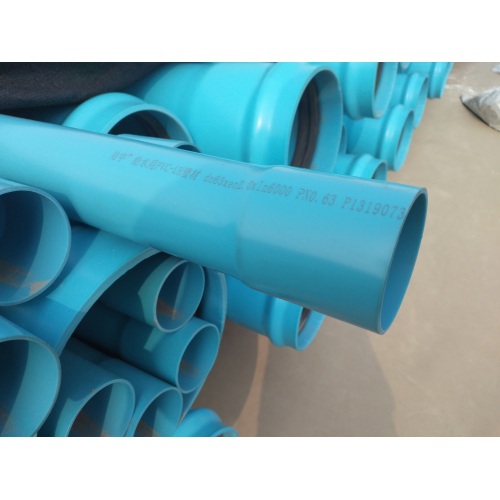

PVC Casing Pipes High Pressure Lightweight

Upvc Water Supply Tube are mainly made of sanitary grade polyvinyl chloride (PVC) resin, with the addition of appropriate stabilizers, lubricants, fillers, color enhancers, etc. They are extruded by plastic extruders and injection molded by injection molding machines. Through cooling, curing, shaping, inspection, packaging and other processes, the production of pipes and fittings is completed.   Two types of PVC pressure pipes for water supply are available:one is joined by solvent cement,and the other by rubber ring.   Outside Diameter(mm) 0.63MPa 0.8MPa 1.0MPa 1.25MPa 1.6MPa 2.0MPa Thickness (mm) Thickness (mm) Thickness (mm) Thickness (mm) Thickness (mm) Thickness (mm) 20         1.5  2.0  25       1.5  2.0    32     1.6  2.0  2.4    40     2.0  2.4      50   2.0  2.4  3.0      63 2.0  2.5  3.0  3.8      75 2.3  2.9  3.6  4.5      90 2.8  3.5  4.3  5.4      110 2.7  3.4  4.2  5.3      125 3.1  3.9  4.8  6.0      140 3.5  4.3  5.4  6.7      160 4.0 …
