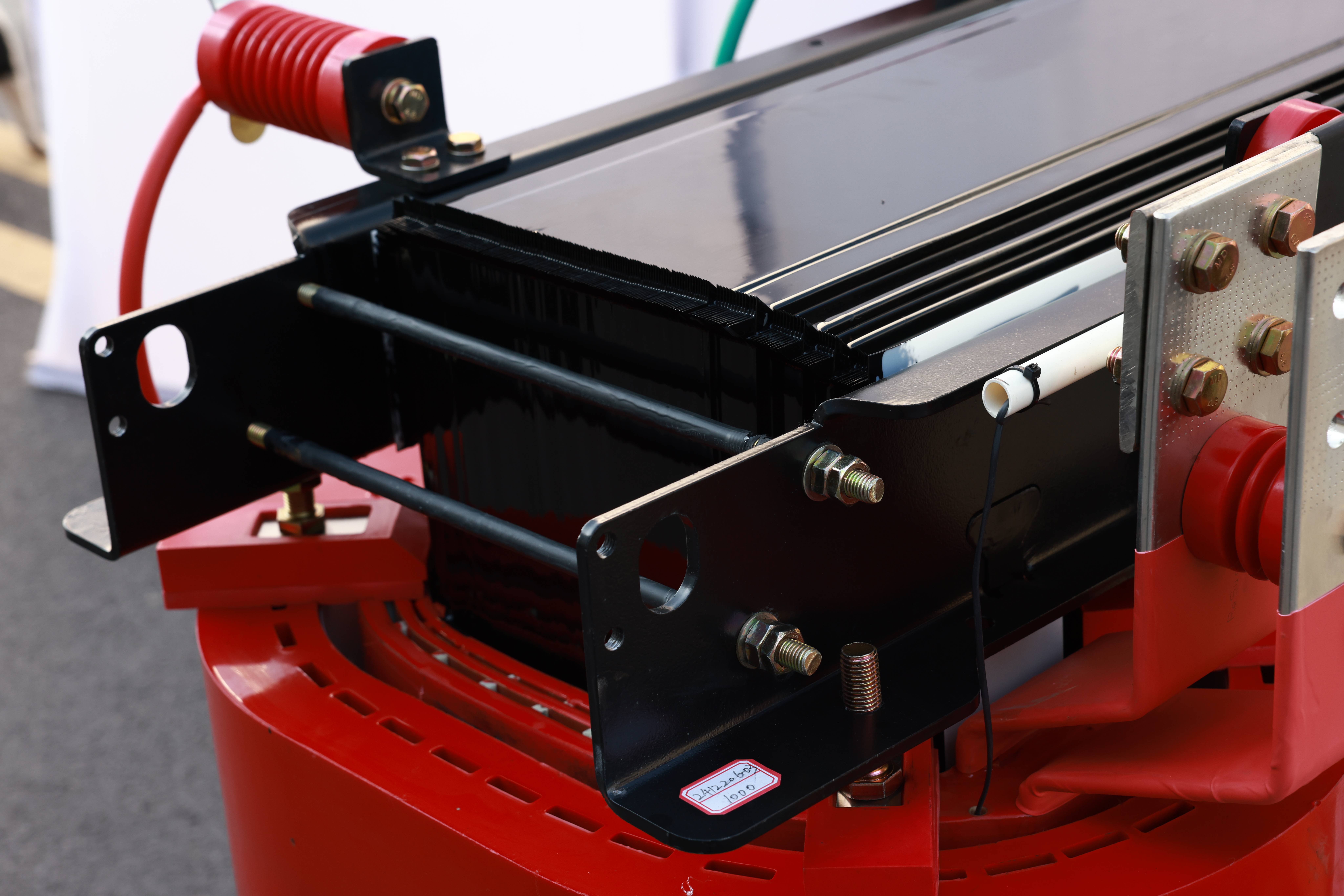

SC(B)10 3 Phase Dry Type Transformer

SC(B)10-13 Environmentally Friendly Transformer Product Summary: The three-phase transformer is a static power transformer. It consists of iron core, winding, insulating material and other components. When the input three-phase alternating current generates magnetic flux through the iron core, the magnetic flux is transmitted to the coil through the closed winding, thereby generating an induced electromotive force. At the output end, the self-inductance principle and mutual inductance principle can generate a current equal to the voltage but opposite in direction. The three-phase dry-type transformer is a generator with a special structure composed of three coils in parallel, and its working principle is the same as that of the generator. Working principle When the conductor in the rotating magnetic field is subjected to a force perpendicular to the magnetic lines of force and the direction of movement, an induced electromotive force will be generated; and the alternating current flow…
