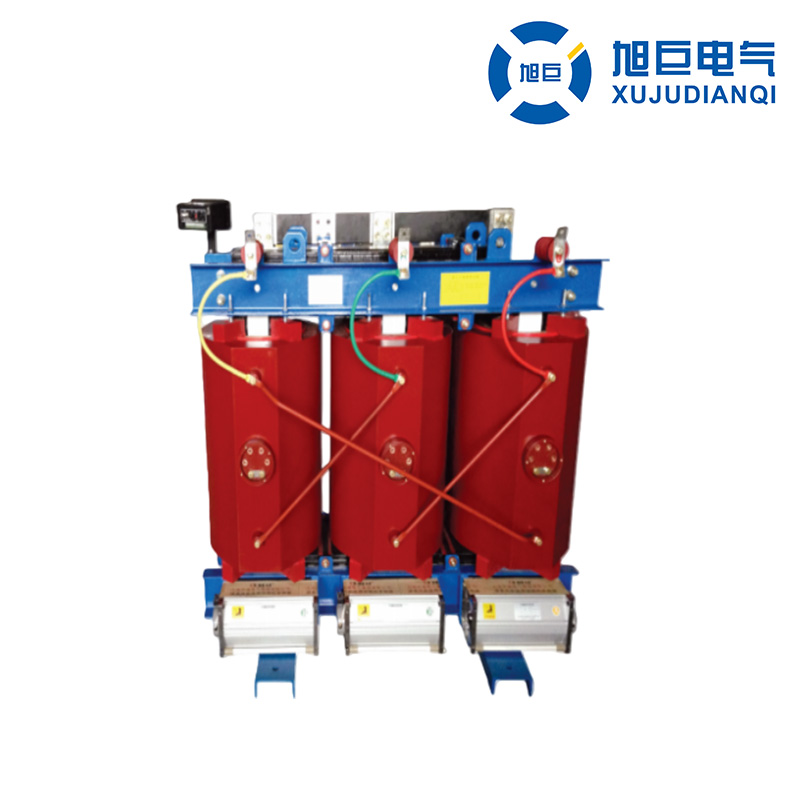

SCB12 2500kVA Epoxy Dry Transformer

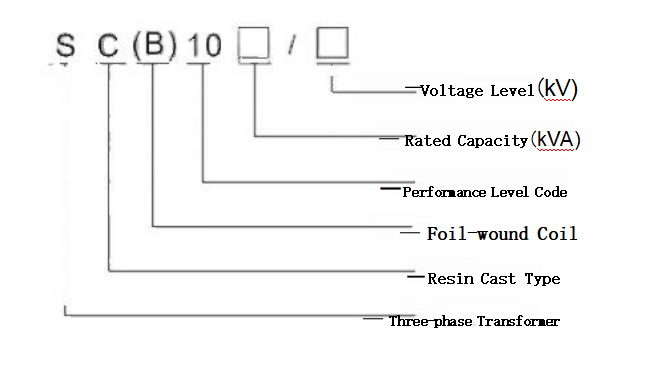

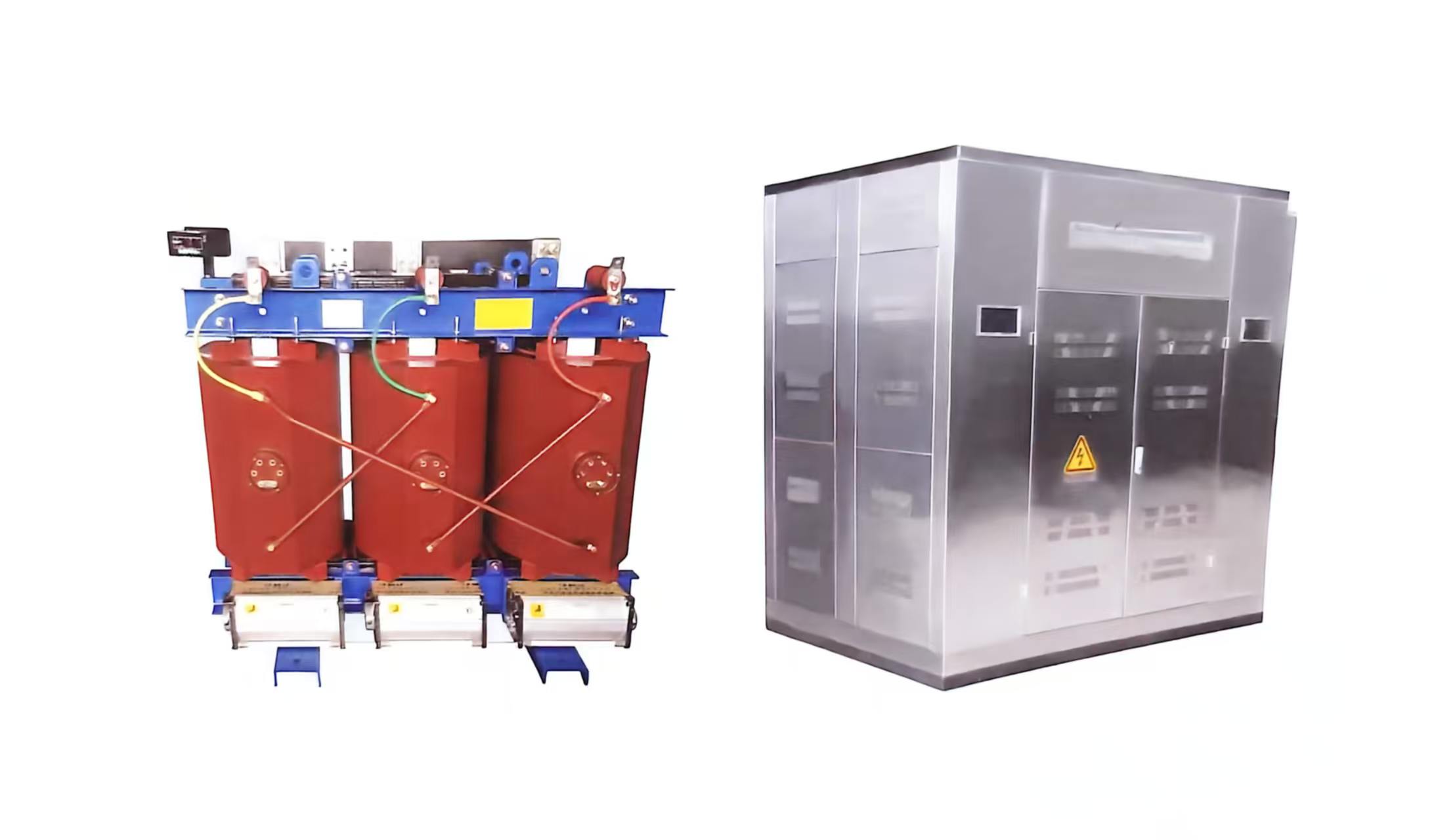

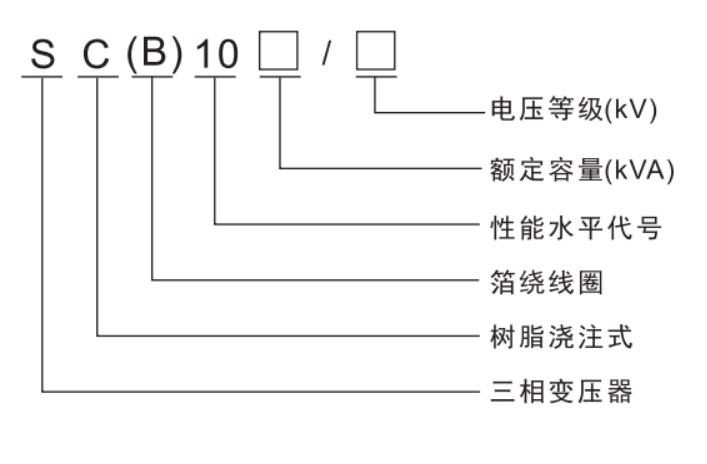

  Product Introduction:   This epoxy resin cast dry-type transformer adopts high-quality materials and scientific formulations, and is manufactured through strict technological processes with advanced production and testing equipment. The product features high reliability and long service life.Housings with different protection grades can be configured or omitted according to different service environments. As an upgraded alternative to oil-immersed transformers, it is widely applied in important and special locations such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants and ships. Model Meaning:   For details, see Fig. 3. Applicable Standards:   ·  GB 1094.11-2007;   ·  GB/T 10228-2008 Specifications and Technical Requirements for Dry-type Power Transformers;   ·  GB 1094.10-2003 Power Transformers – Part 3: Insulation Levels, Dielectric Tests and External Insulation Air Clearances;   ·  JB/T 10008-2004 Sound Level of 6～…
