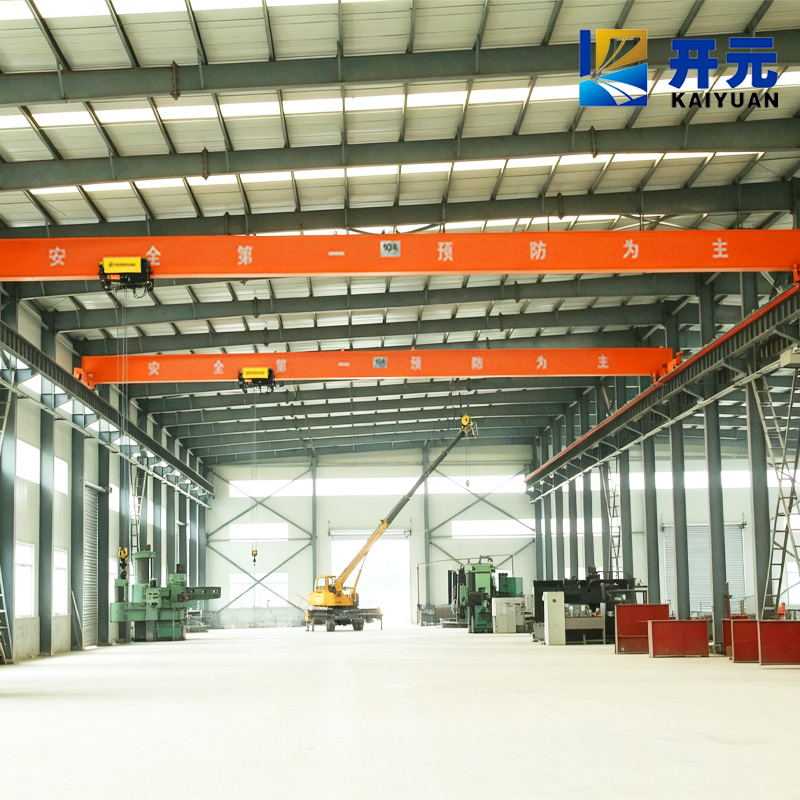

Single Girder Overhead Crane for Workshop Lifting

Product Parameters Model: LD Type Single Girder Overhead Crane Rated Lifting Capacity: 1~32 ton, mainstream models: 3t,5t,10t,16t,20t Span: 7.5m ~ 30m, fully customized according to your workshop dimension Working class: A3~A5, for intermittent light & medium cyclic operation, not suitable for 24-hour continuous heavy duty Power supply: 3-phase 380V/50Hz; 400V/60Hz variant available for North American markets Travelling speed: 20~45 m/min, variable frequency drive optional Electric hoist: CD1 single speed / MD1 double speed wire rope electric hoist Control options: Pendent line control, wireless remote control, operator cabin Safety devices: Load limiter, lifting height limit switch, travel limit, buffer, power-off brake, emergency stop button Localization note: We adjust electrical components and safety packages to meet CE, ISO and local industrial codes for EU, Southeast Asia and Middle East markets. For machinery fabrication workshop owners: Local pain point: Traditional heavy…
