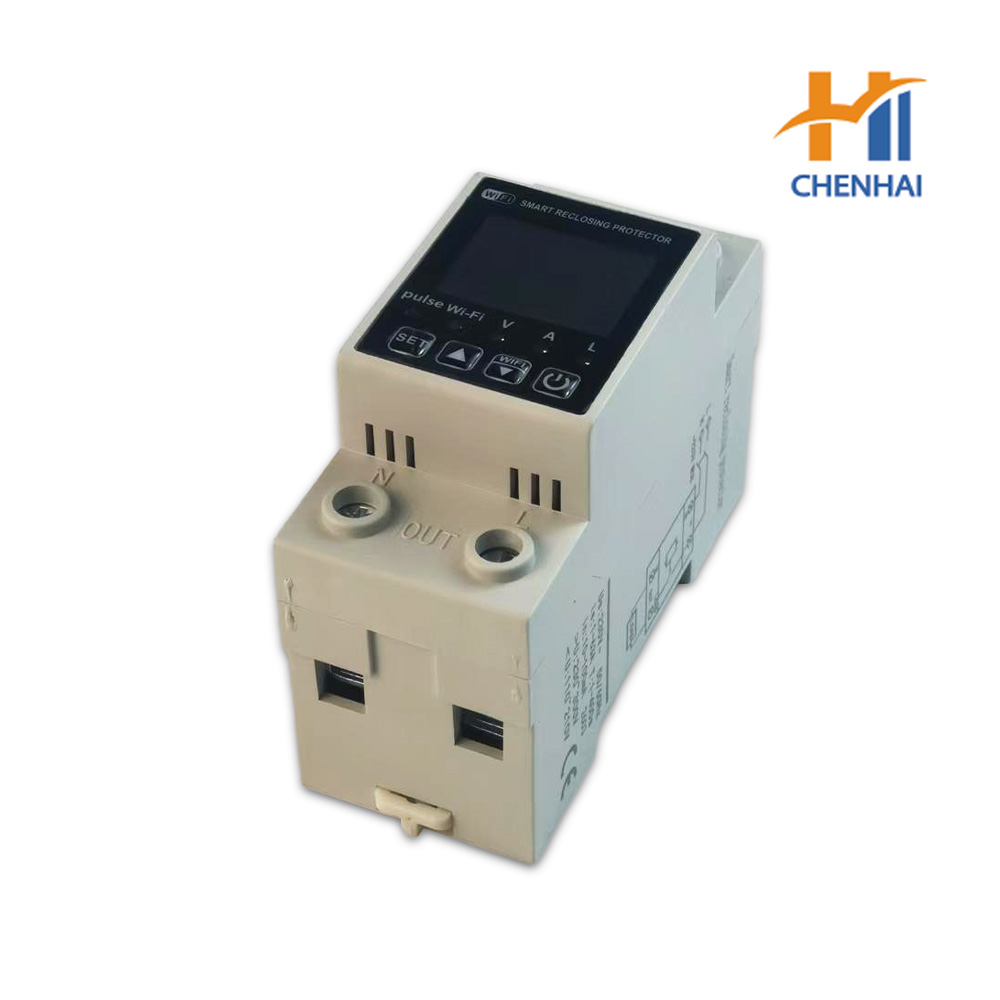

Single Phase 2P Intelligent Auto-Reclosing Protector

The Tuya Single Phase 2P Smart Auto Reclosing Protector from Zhejiang Chenhai Electric integrates protection, measurement, and WiFi control into one DIN rail device. It simultaneously displays current (0‑100A), voltage (40‑300V or 250‑450V), frequency (45‑65Hz), power factor (0‑1.00), active power (0‑30000W), bi‑directional energy (0‑99999kWh, unlimited on app), and leakage current (mA). The LCD color screen updates at 2 times per second. Dimensions are 85×37×85mm, mounting on 35mm C45 rail. Users bind the device via WeChat mini program to view real‑time data, remotely open or close the breaker, and configure protection parameters. Protection functions include overvoltage, undervoltage, overcurrent, overload, delay, time switch, bi‑directional energy monitoring, and overtemperature (settable only in app). All actions and thresholds can be enabled/disabled remotely. The app also records fault events (overvoltage, undervoltage, overload, leakage). This device works seamlessly with Circui…
