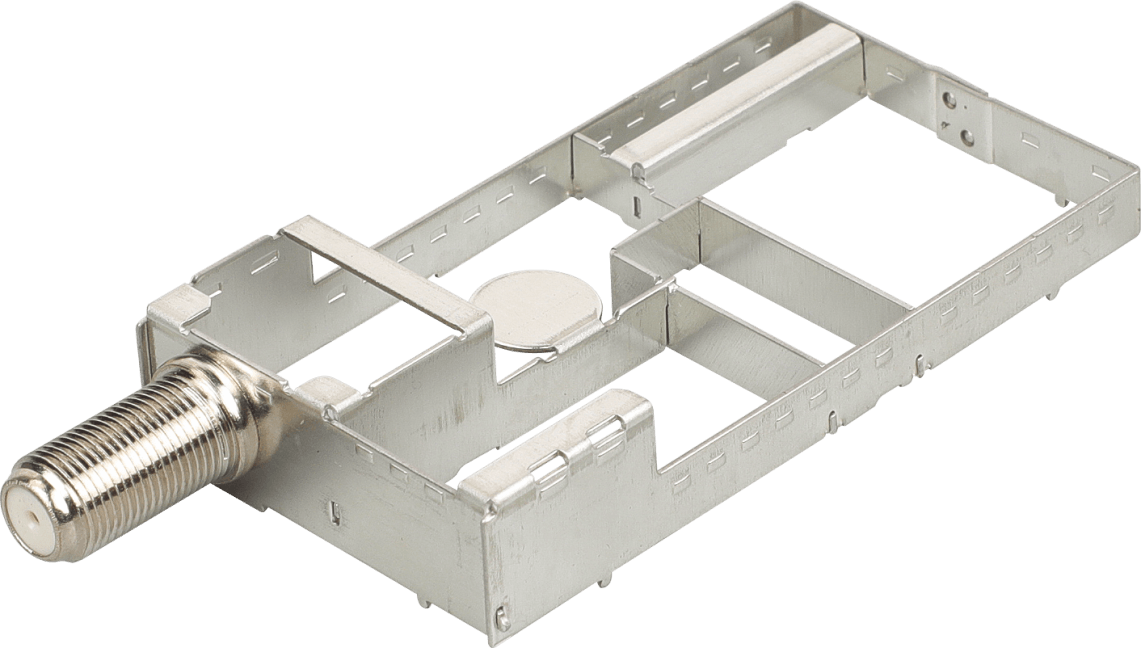

Single Port RF Connector Frame Module

Designed for compact signal transmission assemblies, this product is a practical solution for electronic equipment that requires a stable and precisely formed RF connection structure. It is suitable for routers, gateways, set-top boxes, and other communication devices that need dependable coaxial signal transfer in limited installation space. As one of the reliable RF Connector Parts in this category, the component is developed in accordance with IEC 61169-24 and supports a 75 Ohm RF Interface for stable signal performance. The structure combines a metal frame with a single F-type connector interface, making it suitable for modular signal input layouts where size control and connection stability are both important. Materials typically include zinc steel or copper steel with nickel plating for the connector shell, SPTE or C7521 for the frame, copper with tin or gold plating for the signal pin, and PA6T for insulation. This combination helps create a durable Coaxial Socket Module with go…
