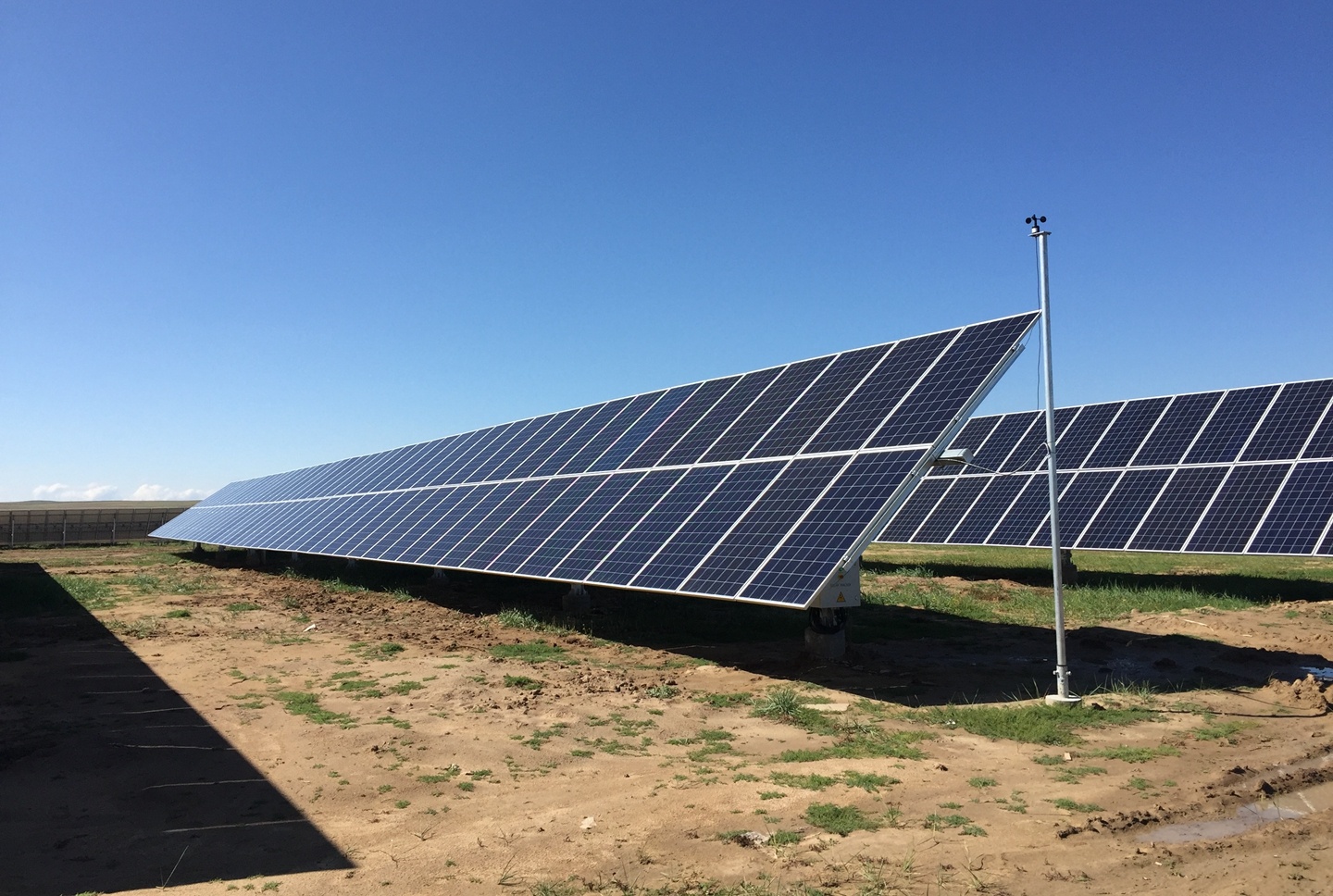

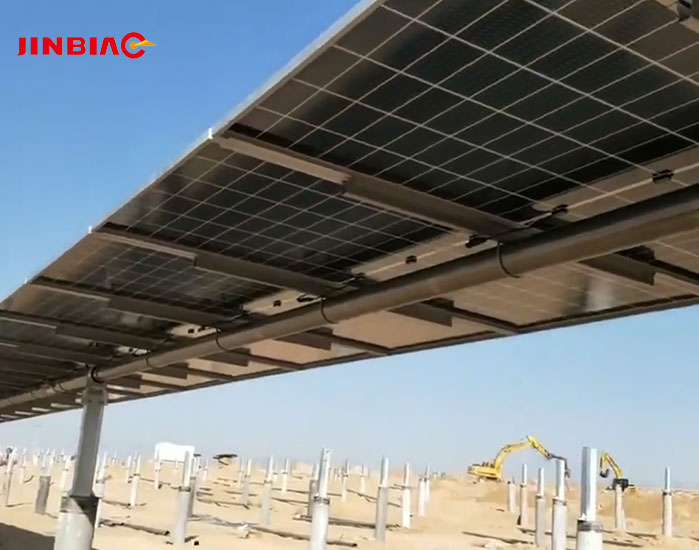

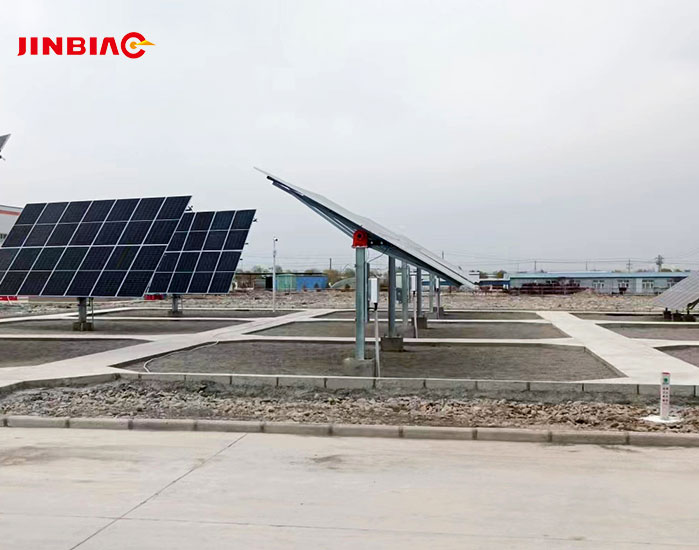

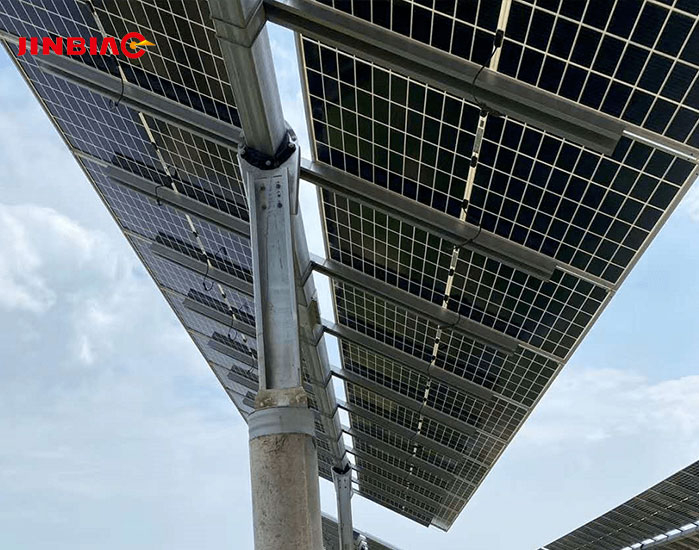

Smart Single Axis Solar Tracking System 200KW

The intelligent single-axis tracking system features only one rotation axis, typically aligned in the east-west direction. Based on the sun's east-to-west trajectory from sunrise to sunset, this system uses a motor to drive the rotation of solar panels around this axis. This allows the panels to follow the sun's movement across the sky, significantly enhancing the solar radiation capture efficiency of the photovoltaic modules and thereby increasing power generation output. Single axis tracking Control system parameters Tracking mode Astronomical algorithm+inclination feedback Tracking range ±45～60° Tracking accuracy ＜1° Supply electricity AC 110/240V(optional DC 24) Drive type Rotary drive/linear drive Driving power ＜200W Drive motor DC 24 Working wind speed 38mph（17m/s） F2F mode Bluetooth / manual Intelligent tracking mode support UPS power supply Optional Intelligent gale protection mode support Self cleani…
