Space-Saving Seawater Desalination RO Cabinet

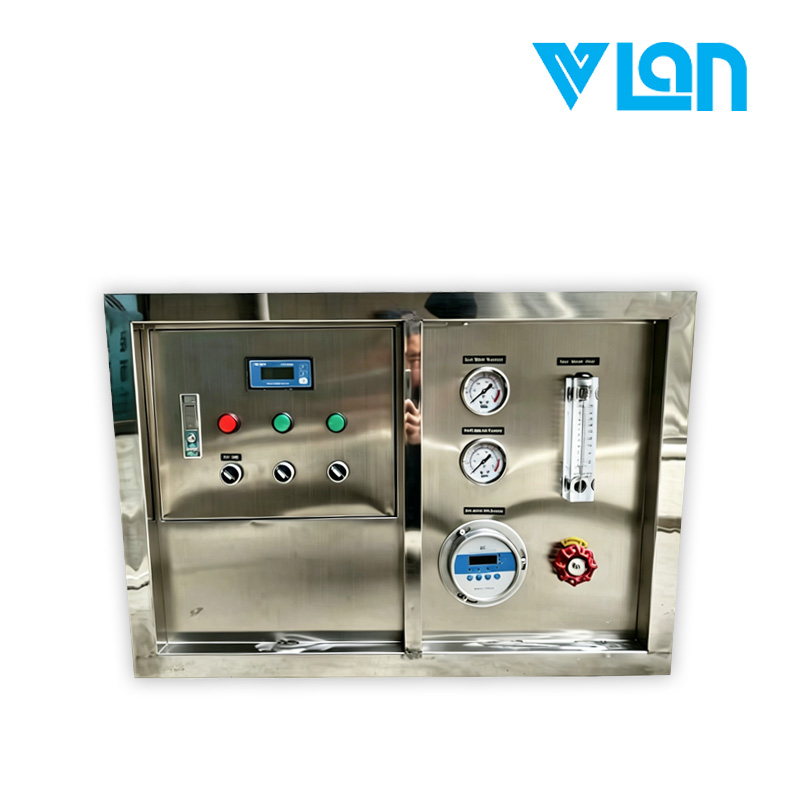

MOdel No.: BP-HD40L-A11. Power: 110V、60Hz2. When the TDS of the raw water is 12,000 - 16,000 PPM, the working pressure is around 35 bar.     When the TDS of the raw water is over 30,000, the working pressure is 55 bar.3. The raw water pump and high - pressure pump are made of 316 stainless steel material. The high - pressure pipe fittings are made of double - layer stainless steel. The ro membrane housing pressure is 1000 PSI.4. Inlet pipe diameter: DN20 / 6 - point port.     Concentrated water discharge pipe diameter is DN15,    pure water pipe diameter is DN15.5. Filtration method: Raw water pump - PP filtration - activated carbon - high pressure pump - reverse osmosis membrane6. Gross weight: 85kg7. Machine size: 85*50*70cm 8. Package: wooden case This 40L/H cabinet‑type seawater desalination RO equipment adopts fully enclosed stainless steel cabinet structure, integrating control panel, pressure gauges and flow meters for convenient monitoring and compact layout. It operates under…
