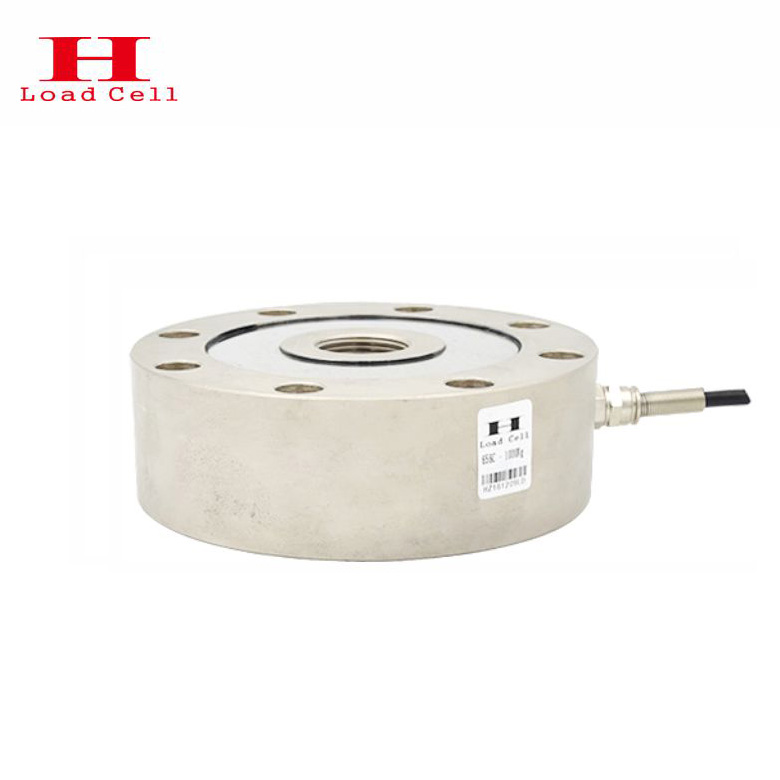

Spoke-type load cell 656C

Zhejiang Huazun Sensing Technology Co., Ltd. is proud to present the 656C spoke-type load cell, which is a precise industrial weighing solution. Composed of high-strength alloy steel, it combines the structural advantages of a disc design (indicated in the "Type of Pressure Measuring Element") with the spoke function to meet specialized force measurement requirements.   Specifically designed for low-key truck scales, material valve weighing systems and dynamometers, it adheres to the OIML R60 C3 accuracy standard to ensure reliable accuracy within the capacity range of 0.5-30 tons. With a sensitivity of 2.0±0.1% mV/V, it can achieve ultra-precise force-to-signal conversion, capturing minute load changes that are crucial for heavy-duty applications. A zero balance of 0.04mV/V maintains baseline stability, while a 30-minute creep of 0.05% and a hysteresis/repeatability of 0.03% both ensure consistent and drift-free performance under long-term or cyclic loads.   With the technical experti…
