Truss-type Steel Bars Transferring and Stacking Machine

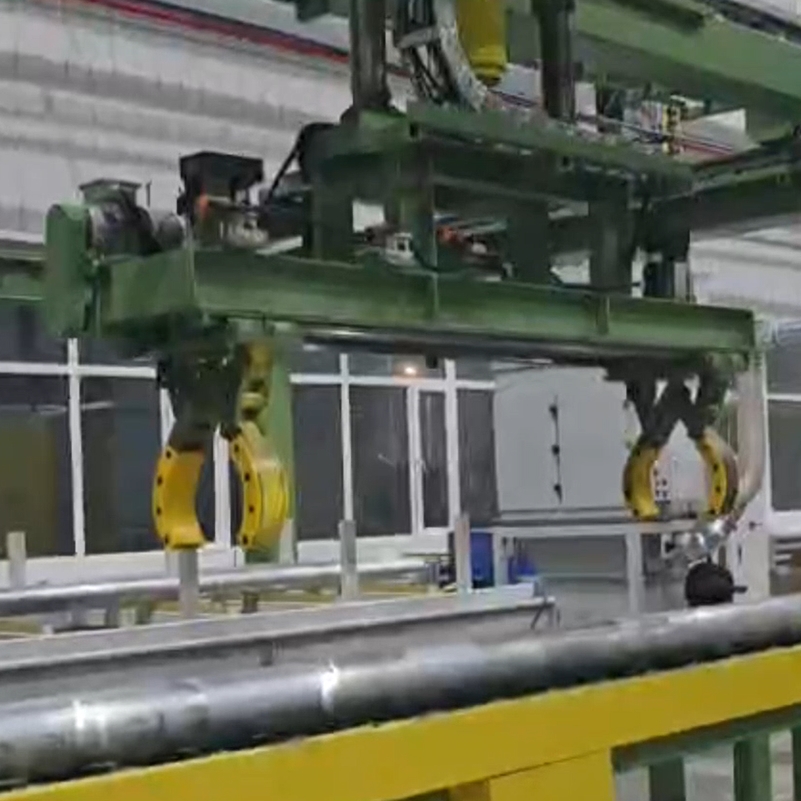

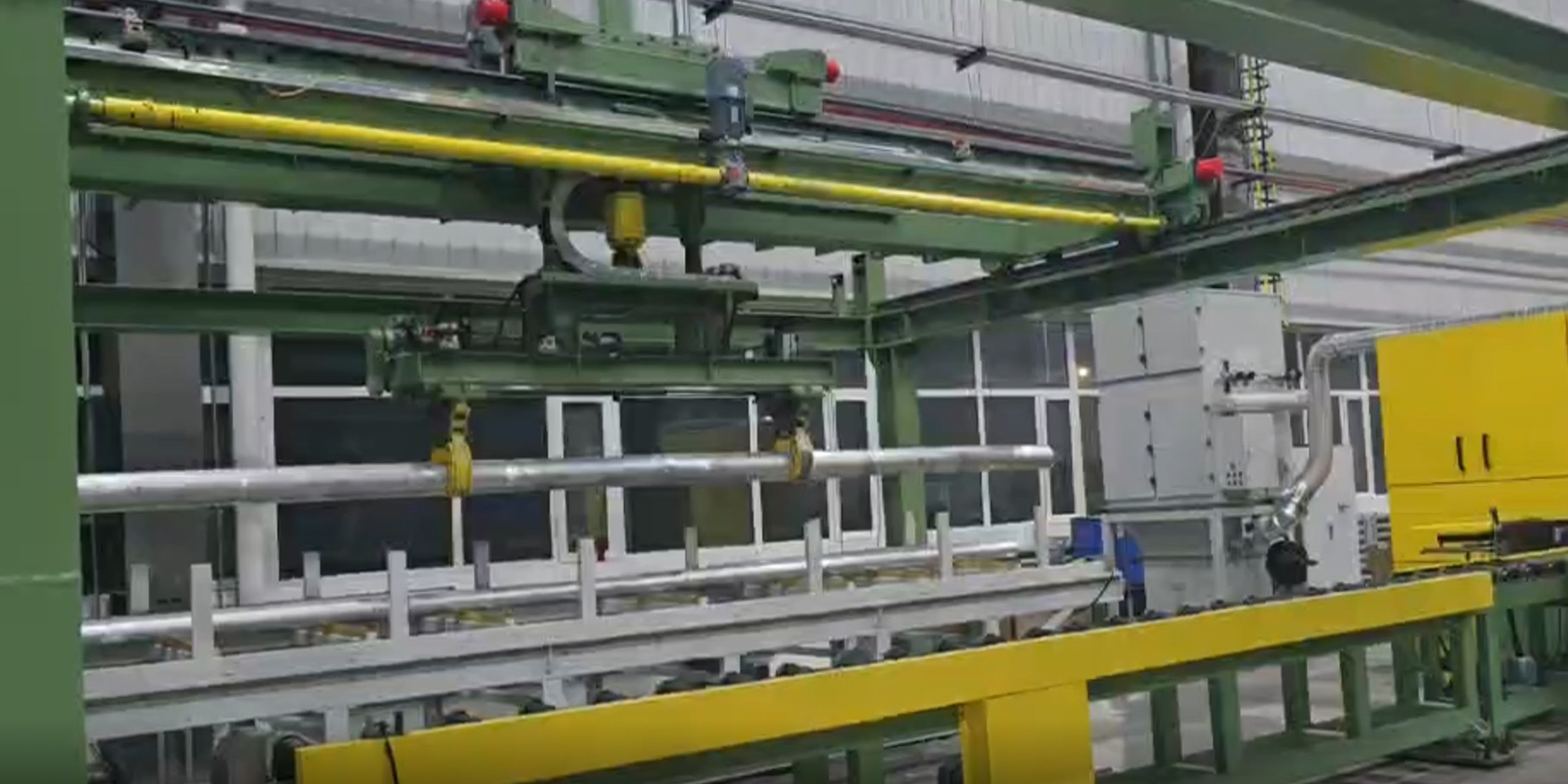

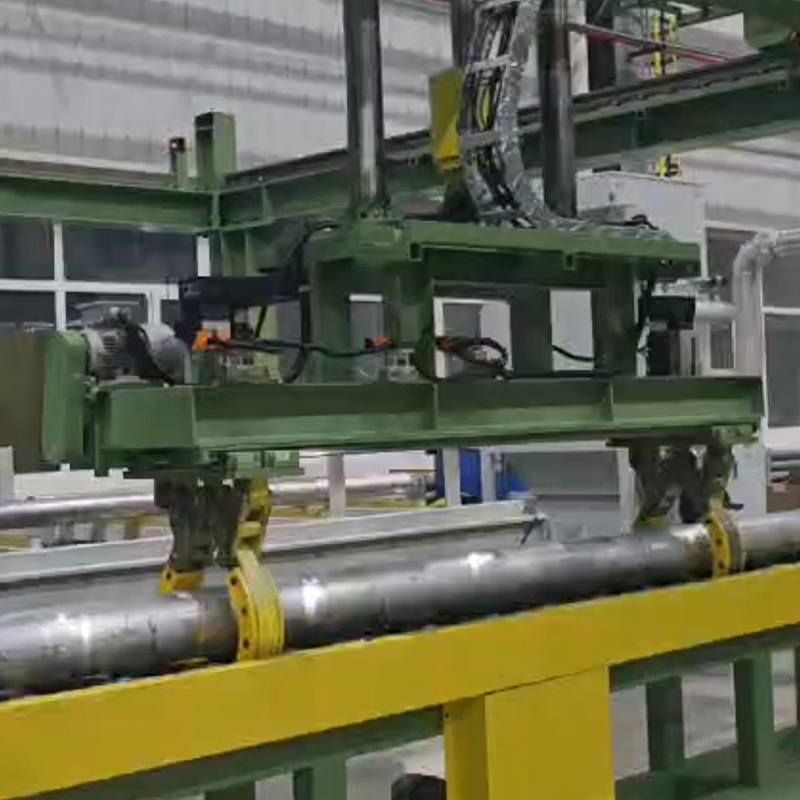

Steel rods/bars/pipes/tubes stacking machine The solid steel bar stacking machine is a specialized equipment used for automatically stacking heavy and long materials such as round steel and bars. Based on its structure and working principle, the stacking machines currently available in our company mainly include three types: gantry type / truss type, articulated arm type, and crane type. The following is a technical analysis and selection reference for the characteristics of solid steel bars: Type Structure Features Application Typical Load Gantry type Truss type The structure adopts a gantry frame design, and the mechanical hand is used to grasp the object through the coordinated linear motion of X/Y/Z axes. The structure has extremely high rigidity and excellent positioning accuracy. The rule stacking method suitable for long-sized steel rods (such as 6-12 meters) is commonly used in the finishing lines of steel mills. Single capture can reach several tons. Articulated arm…
