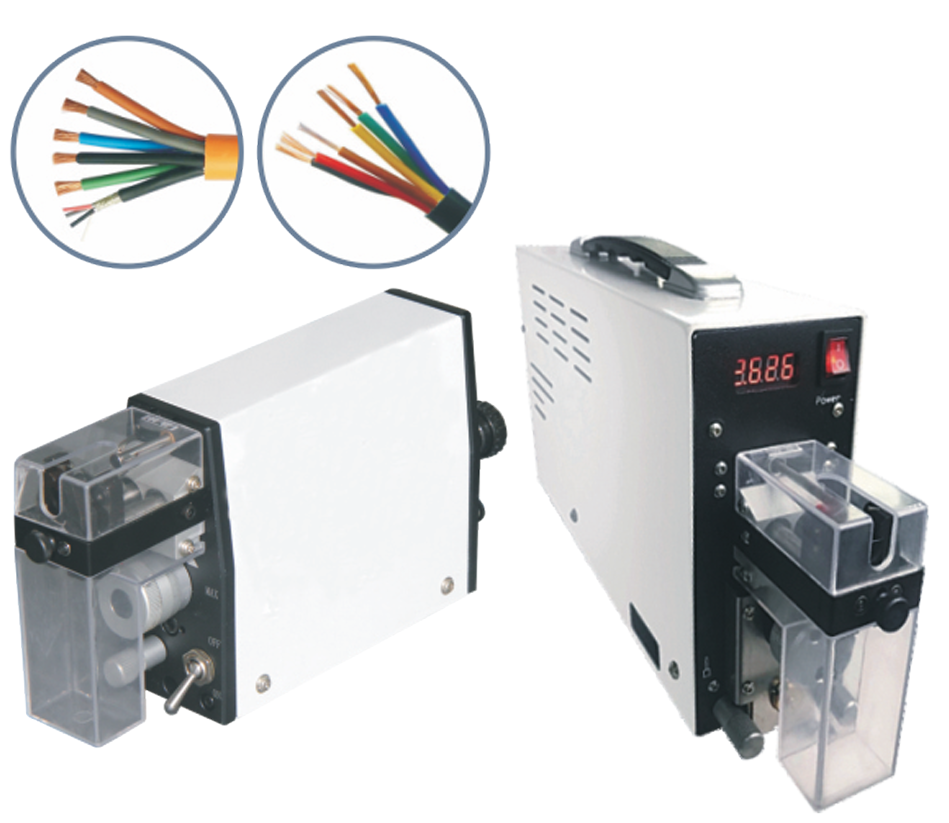

TYDC-GM Series Precision Induction Stripping Machines.

Product Introduction: TYDC-GM series are fetching stripping machines use for controlling heat technology to cut insulation cleanly while saving the core wire. Designed for fine wire and multi core wires, these machines offer suitable stripping quality for electronics, wire harness , and medical field. Key Features: Fetching stripping processing for clear, waste free insulation removal Perfect diameter accuracy up to 0.01 mm Quick stripping cycle 0.3s/0.5s Perfect for fine wires  Maximum stripping length 20mm  Minimal noise and energy saving Specifications: Specification TYDC-GM001 (Pneumatic) TYDC-GM002 (Electric) Drive Type Pneumatic Electric Cable Section 0.03 – 2.08 mm² 0.03 – 4.0 mm² Max Cable Outer Diameter 3.2 mm 4.2 mm Peeling Accuracy Full peel: 0.5mm, Partial peel: 6mm Full peel: 0.5mm, Partial peel: 6mm Diameter Setting Accuracy 0.01 mm 0.01 mm Max Peeling Length 20 mm 20 mm Peeling Speed Approx. 0.3 s Approx. 0.5 s Power/Air Requirement 0.5–0.8 MPa (…
