UL1015 5AWG PE with RNB14-6S ring terminal

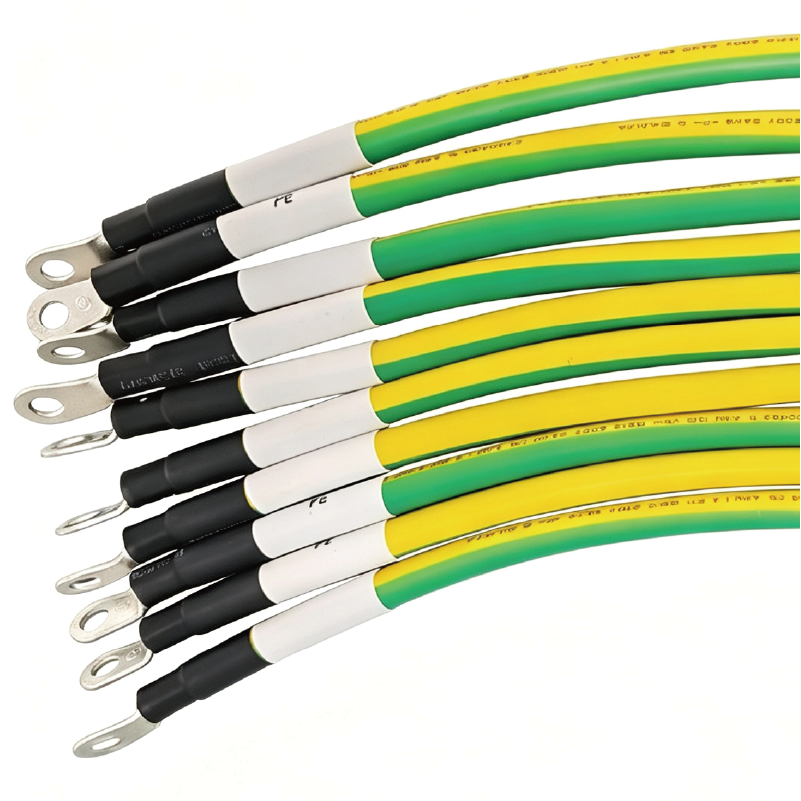

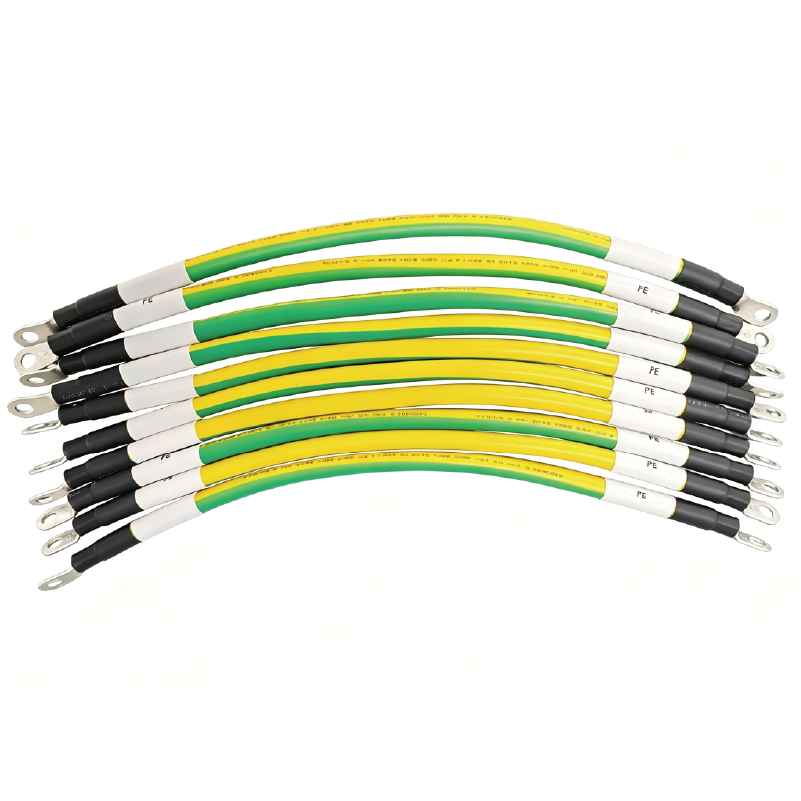

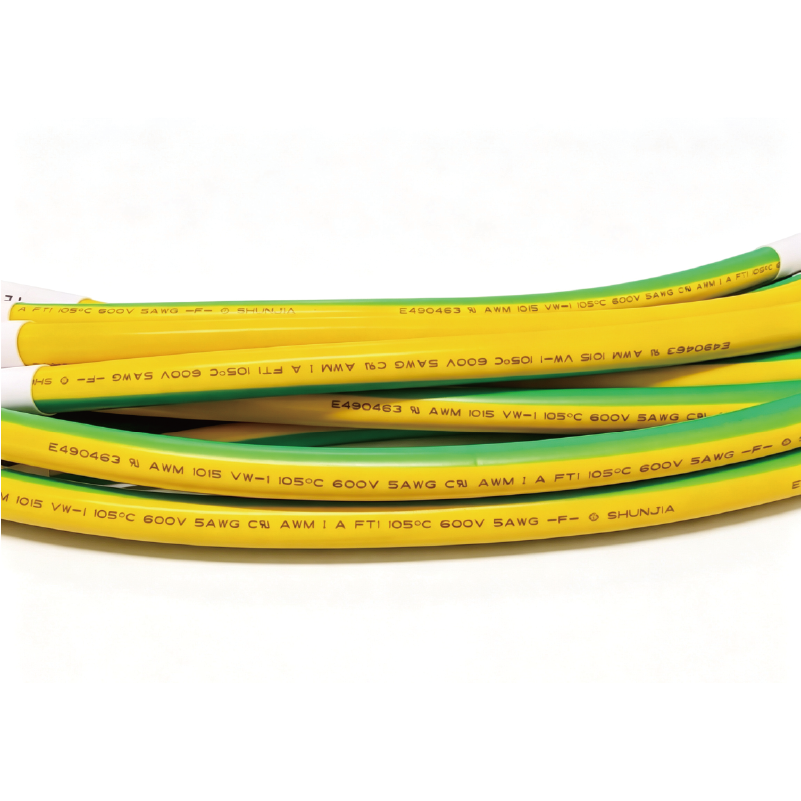

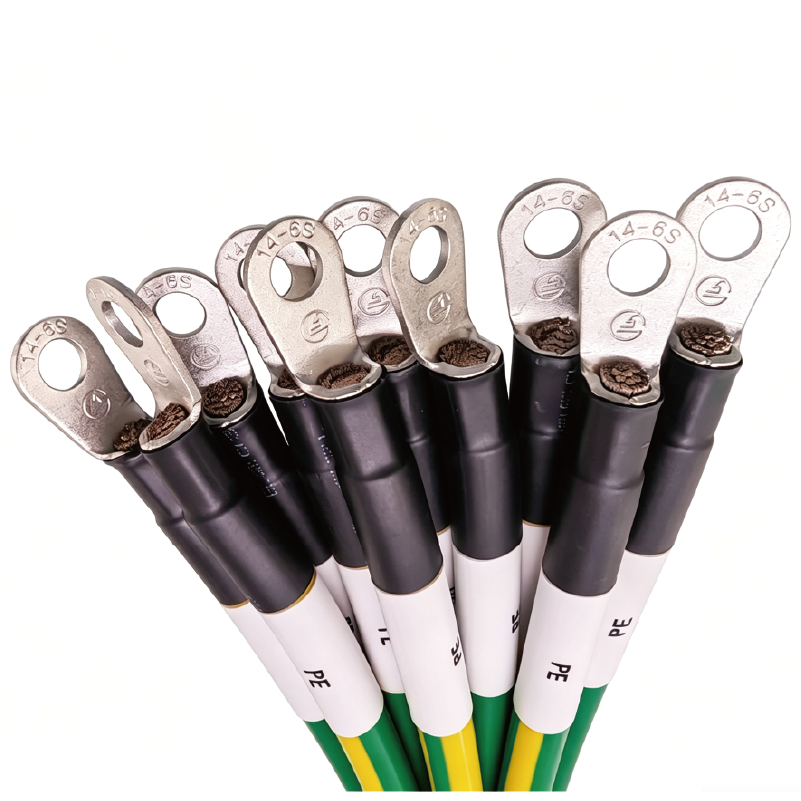

UL1015 5AWG PE with RNB14-6S Ring Terminal   This assembly pairs 5AWG UL1015 PVC-insulated cable in PE yellow-green with factory-crimped RNB14-6S ring terminals. Used as a ‌battery module wiring harness‌, it carries heavy current and pulls metal parts to a common potential, so enclosures, racks and pack shells stay at one voltage and equal-potential bonding is assured. Supplied as a ‌storage battery cable assembly‌, the lead resists oil, abrasion and 105 °C heat, making it a dependable ‌power pack connecting harness‌ between cells, busbars and cabinets. Crimped at both ends it becomes a ‌dual head RNB14-6S ring terminal cable‌; crimped at one end it serves as a ‌customized ring terminal cable for battery pack‌ projects with non-standard stud size, bending angle, length or sleeve requirements.   Basic Information Product name‌: UL1015 5AWG PE with RNB14-6S Ring Terminal Cable style‌: UL1015, 105 °C / 600 V, VW-1 flame retardant, PVC insulated Conductor‌: 5AWG (approx. 16.8 mm²), strande…
