XZ800 Auto Chamber Filter Press

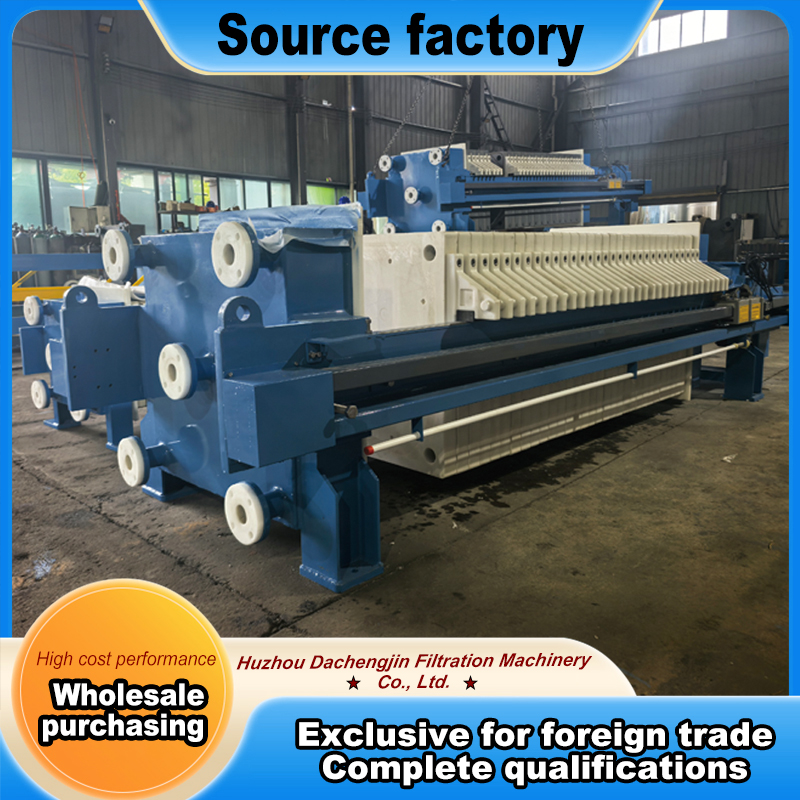

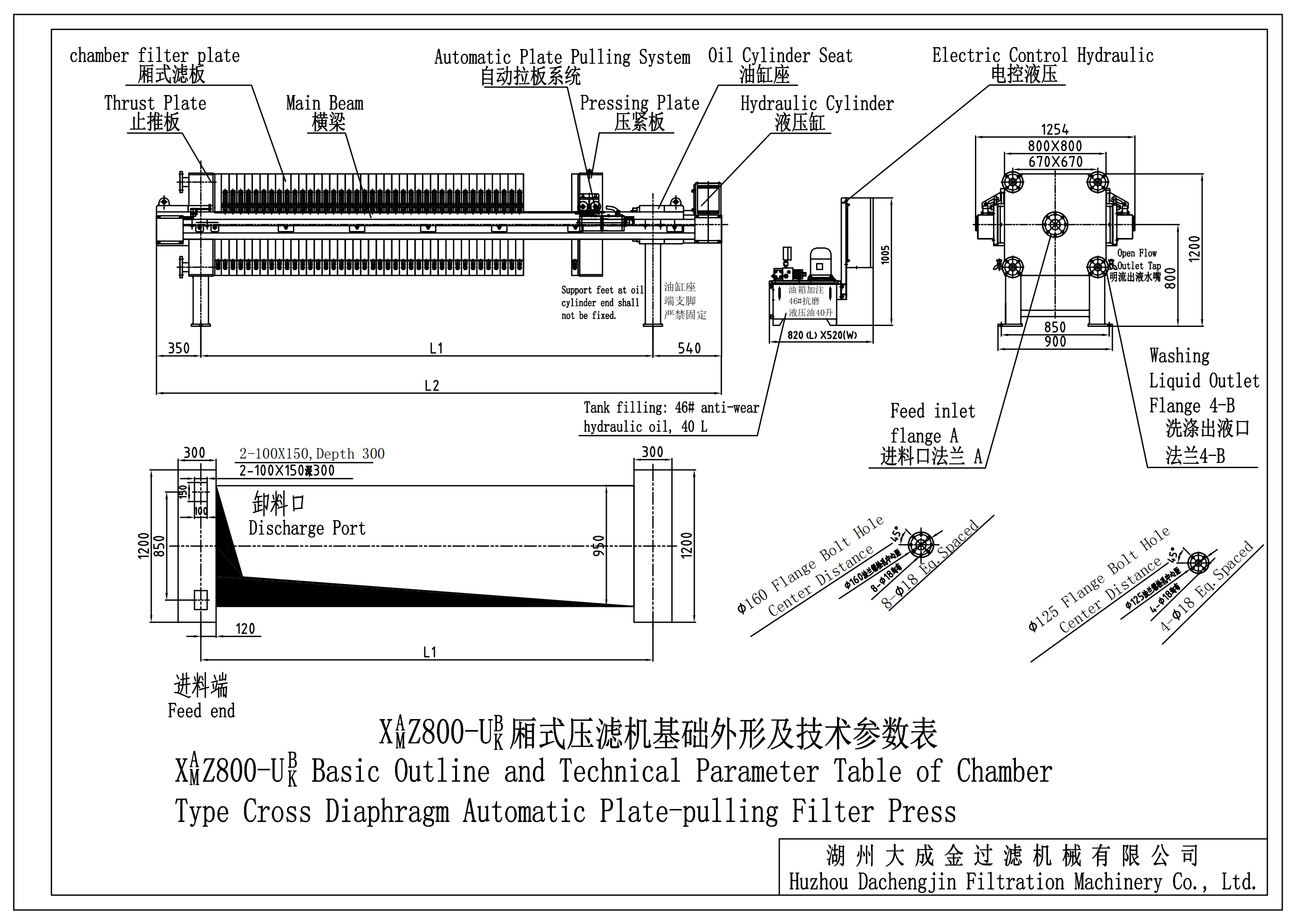

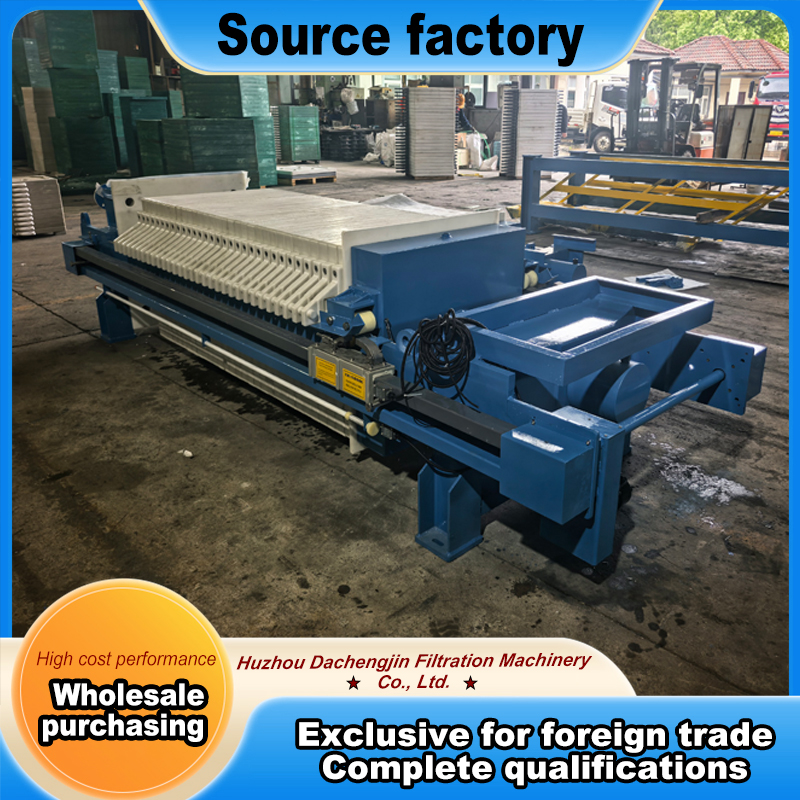

XZ800 Hydraulic Clamping Auto Plate Pulling Chamber Filter Press The XZ800 is a hydraulic clamping auto pressure holding auto plate pulling chamber filter press. It works as a Chamber Filter Press with plate size of 800 by 800 millimeters and 60 millimeters thickness. The filtering area ranges from 10 to 80 square meters depending on the number of plates you choose. This machine is a mainstream model for industrial solid liquid separation. It is built for continuous production and high volume processing. The steel frame structure includes a thrust plate, pressing plate, main beams, and support legs. The overall rigidity is strong enough to handle high filtration pressure and clamping force for industrial long term operation. The chamber plates are made from reinforced polypropylene. This material resists corrosion and handles high temperature well. Filter cloths are placed between each pair of plates. When the machine clamps, the plates form sealed filter chambers. The white handles o…
