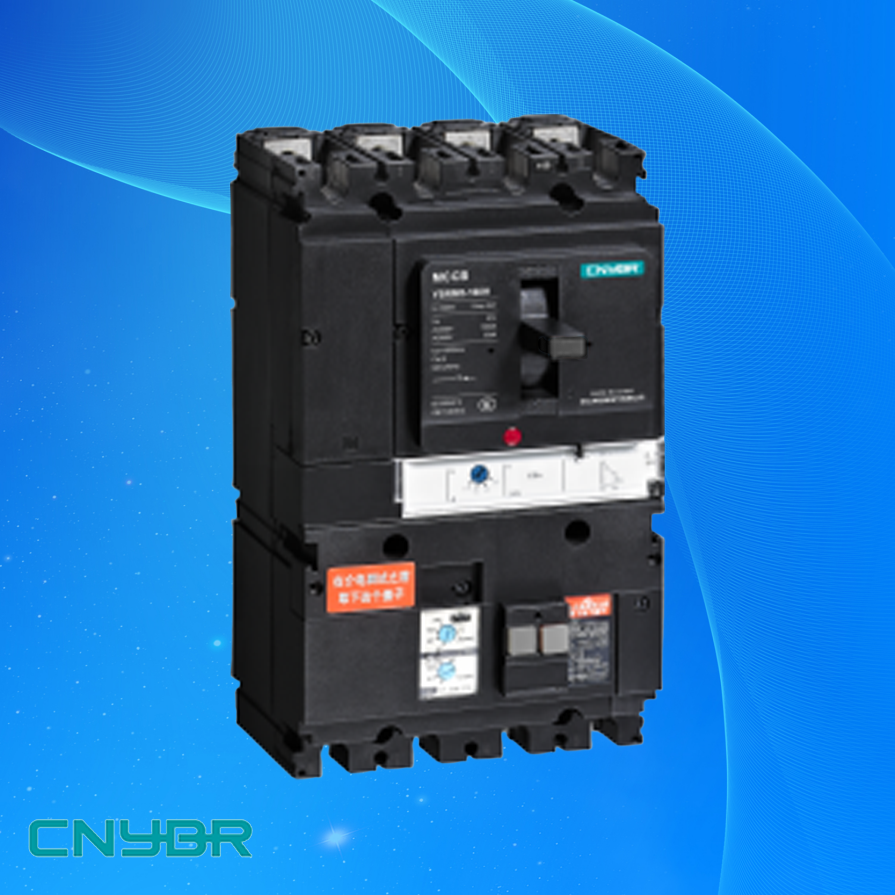

YBRM5 - 160 Thermomagnetic Molded Case Circuit Breaker

The number of poles is 3P/4P, the rated working voltage is AC400/690V, and the rated current includes 16, 20, 25, 32, 40, 50, 63, 80, 100A, etc. Rated insulation voltage AC1000V, rated shock withstand voltage 8KV. Breaking capacity: N-type 400V rated limit short-circuit breaking capacity 55kA, 690V 25kA; H-type 400V 100kA, 690V 35kA; Type S 400V 150kA, 690V 65kA, ICS = 100% ICU. The mechanical life is 30000 times, and the electrical life (400V) is 15000 times. Thermal magnetic tripper long delay (0.7 - 0.8 - 0.9 - 1.0)×In, instantaneous 10×In±20%; Magnetic tripper long delay (0.7 - 0.8 - 0.9 - 1.0) ×In, instantaneous 12×In±20%. Product size W: 105 (3P)/140 (4P), L: 161, H: 86. Using a variety of advanced technologies, such as contact repulsion, PA automatic arc blowing, etc., the operating mechanism is double insulated, can be assembled with a variety of accessories, and there is an anti-misoperation handle lock, which is good and environmentally friendly. Usage: Used in industrial and…
