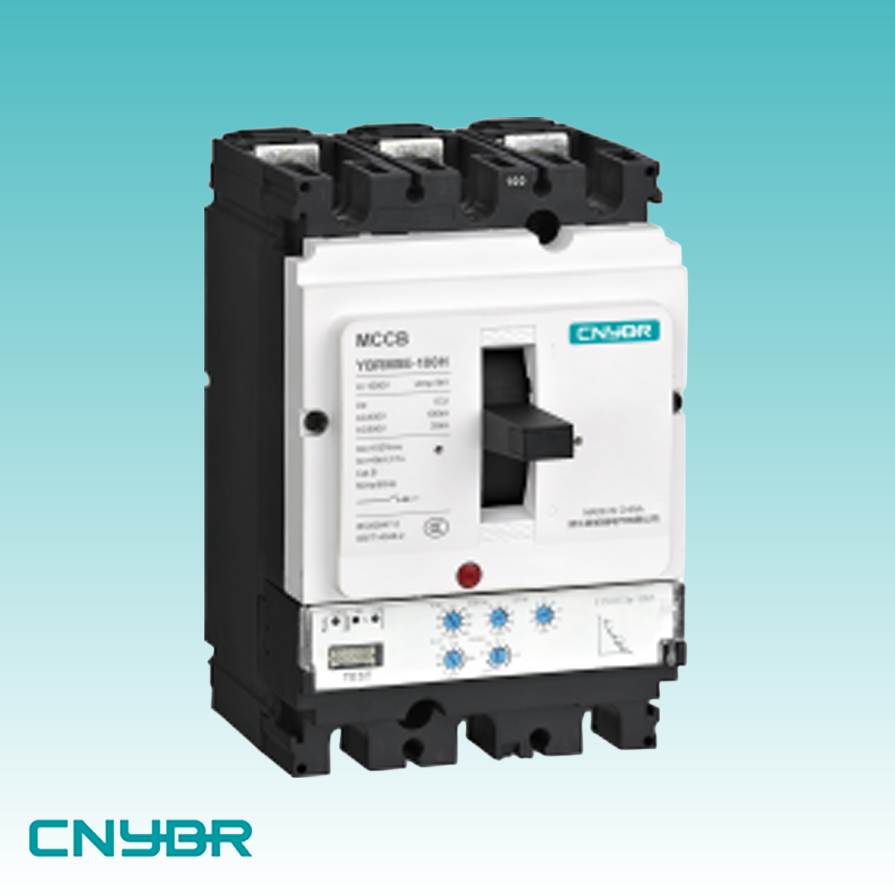

YBRM5E-100 Series Electronic MCCB

YBRM5E - 100 series electronic molded case circuit breaker, rated insulation voltage up to 1000V, rated working voltage AC400/690V, rated current covering 18/40A, 40/100A, 63/160A and other specifications, the number of poles is available in 3P and 4P. The breaking capability level includes N, H, and S types, with a rated limit short-circuit breaking capacity of up to 150kA at 400V and a rated short-circuit breaking capacity of up to 65kA at 690V, and the rated operating short-circuit breaking capacity ICS=100% ICU. Mechanical life of 30000 times, electrical life (400V) of 15000 times, equipped with thermal magnetic tripper and magnetic tripper, tripping current and other parameters can be flexibly set, product size 3P is W: 105×L: 161×H: 86, 4P is W: 140×L: 161×H: 86. This series is suitable for industrial and building power distribution systems at altitude of 2000 meters and below, 50Hz/60Hz, and can provide accurate short-circuit protection and overload protection for cables, electr…
