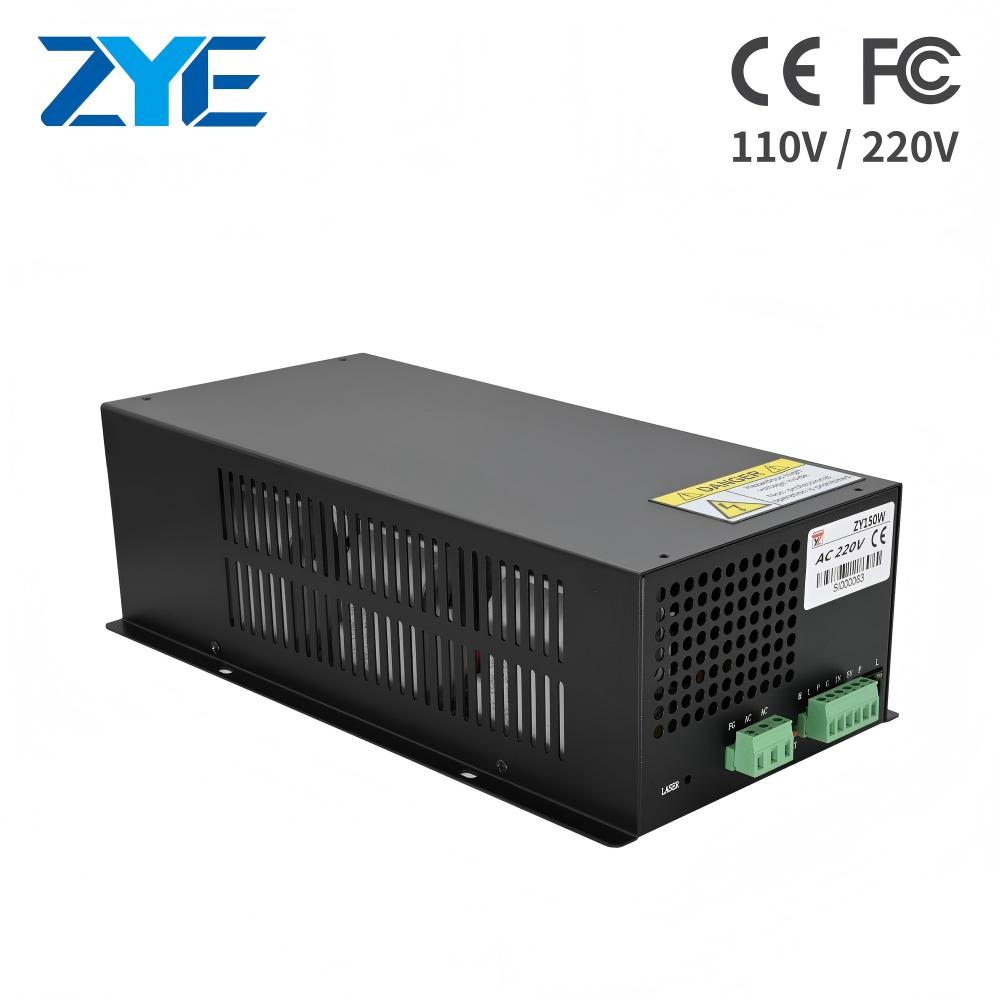

ZY150W 35kV CO2 Laser Power Supply

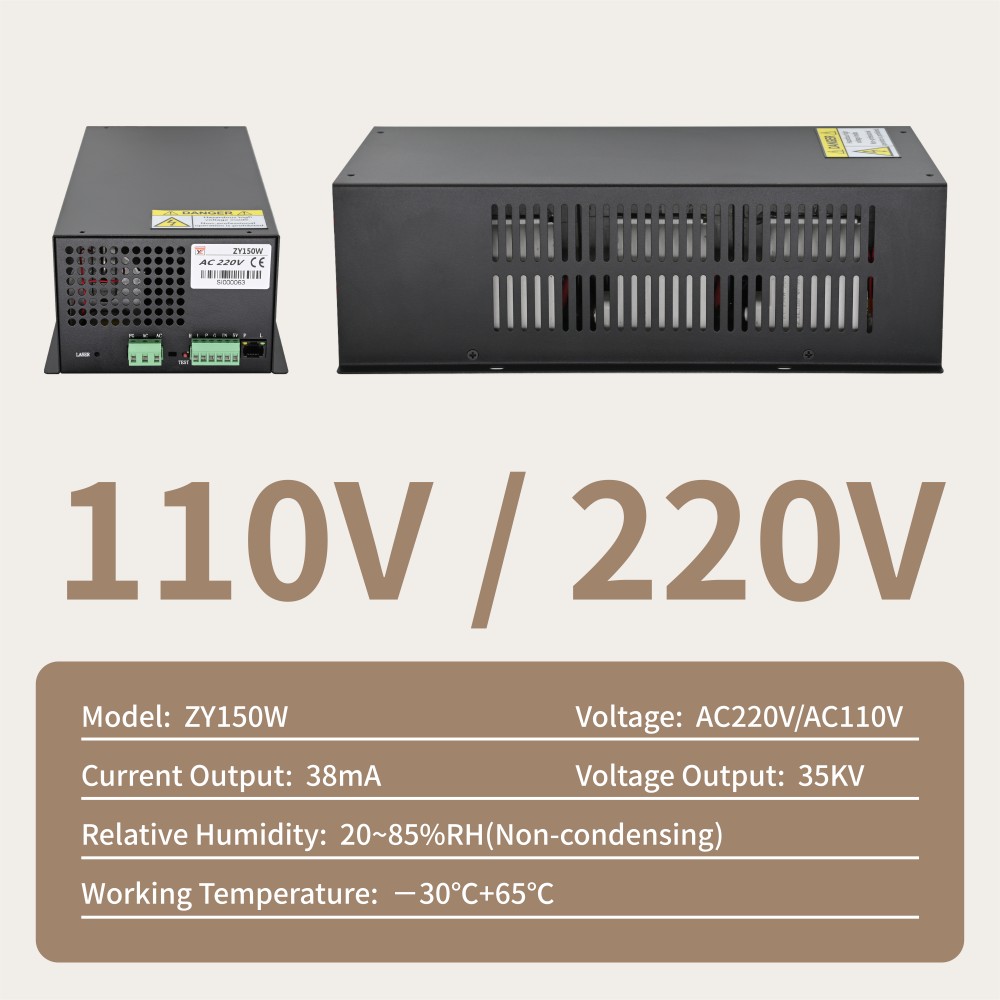

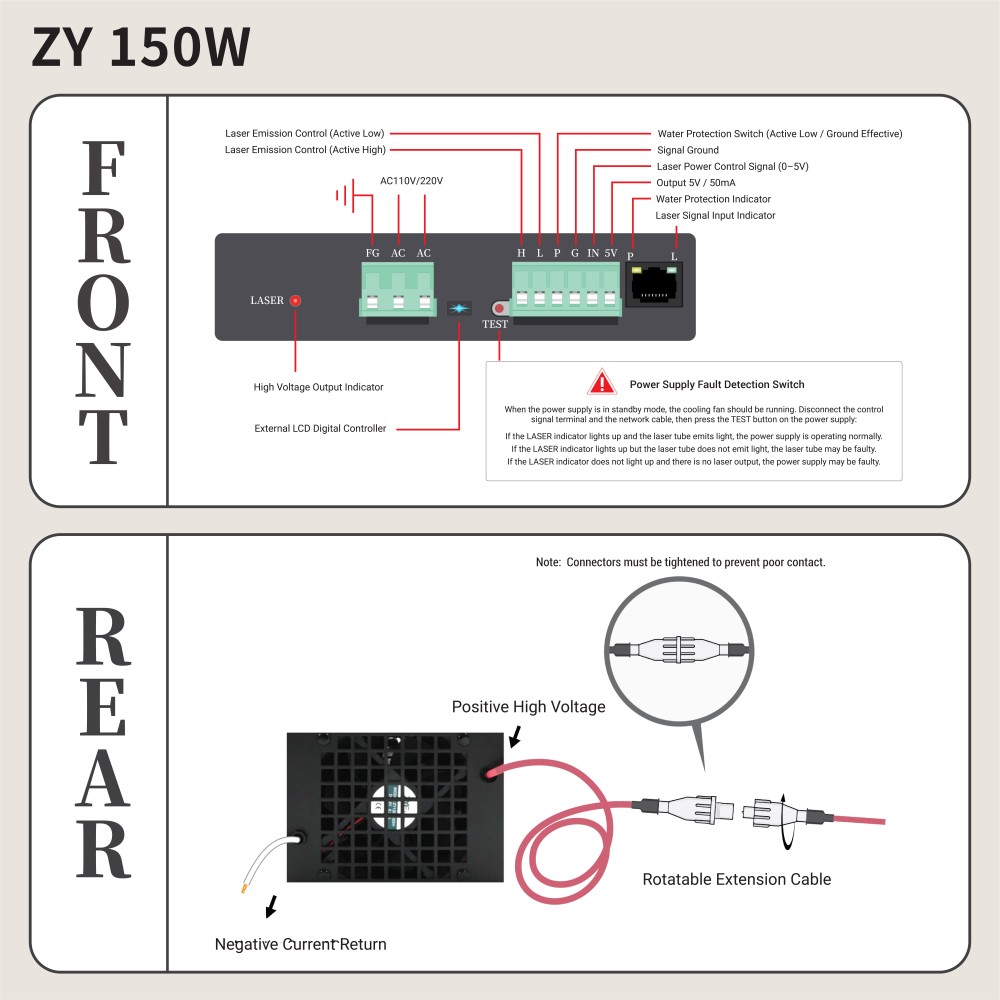

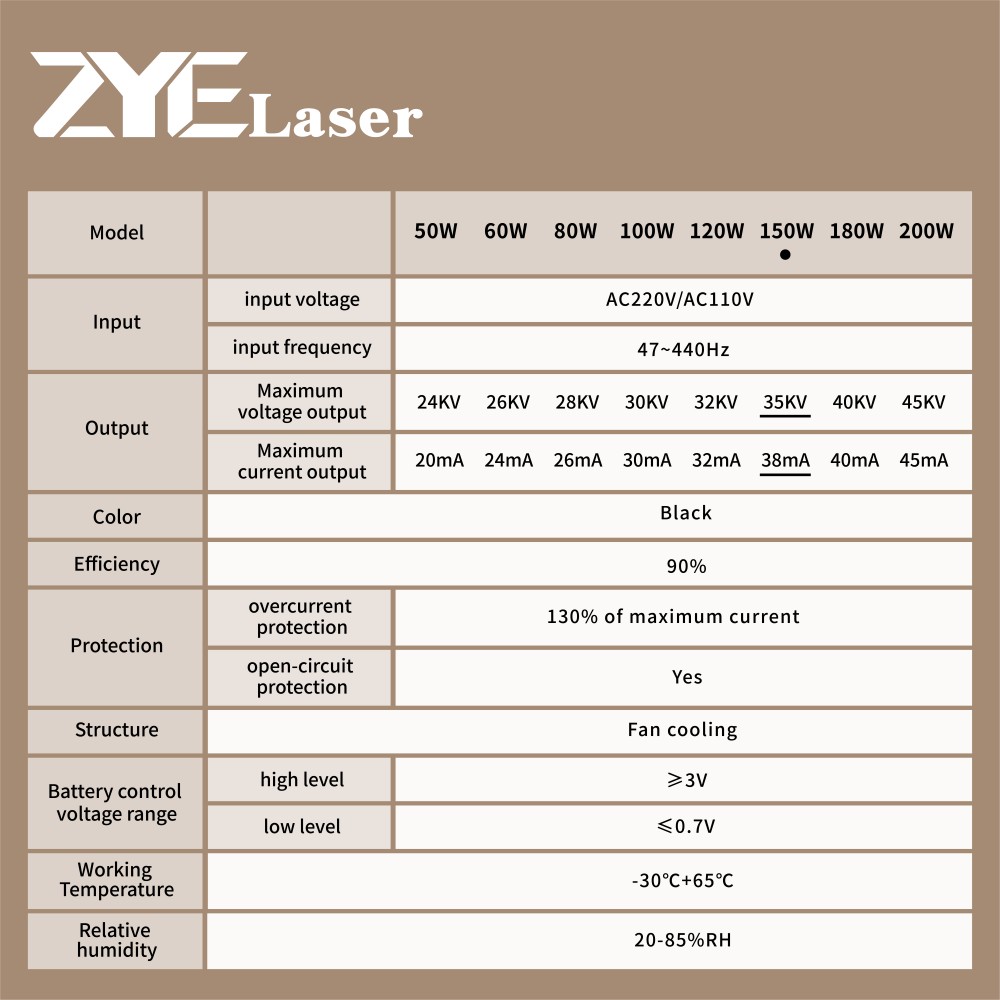

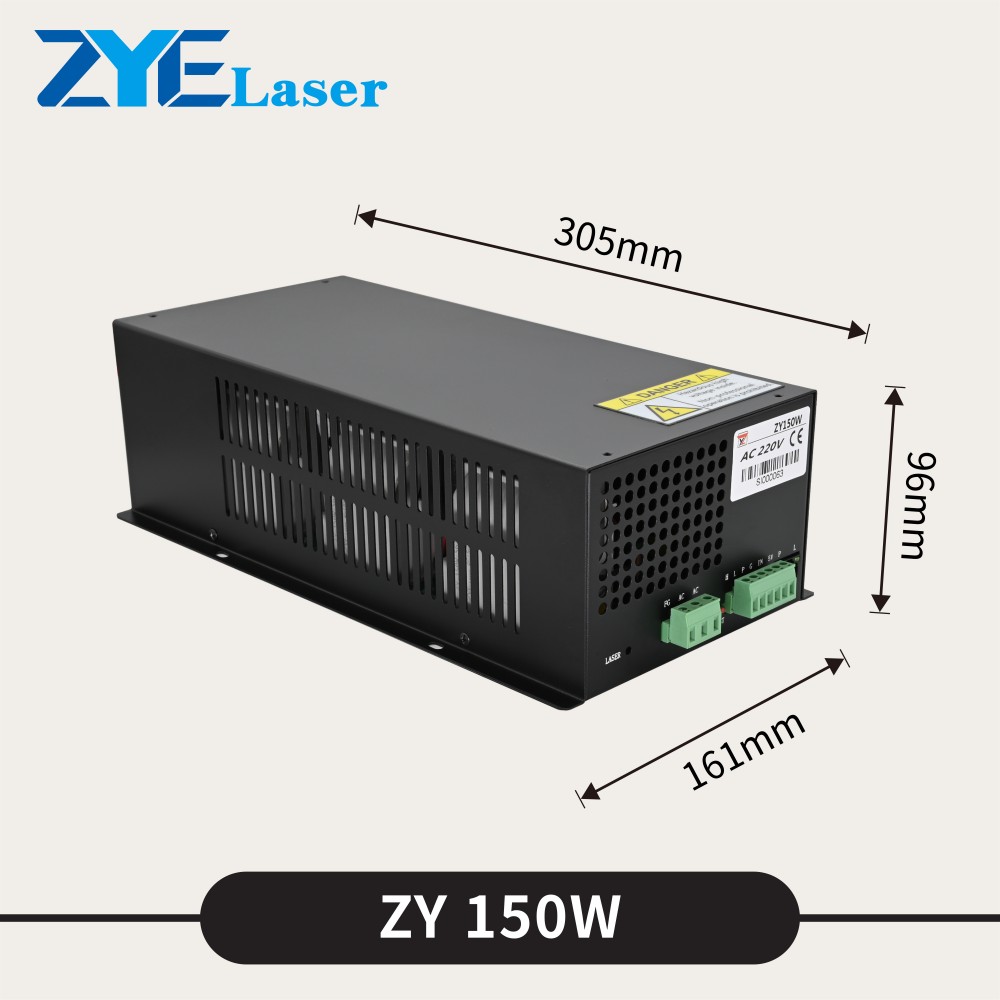

1. Short Product Introduction   The ZY150W is a high-voltage CO2 laser power supply for equipment using a 150W glass CO2 laser tube. It provides a maximum output voltage of 35kV and a maximum output current of 38mA.   AC110V and AC220V input versions are available. The power supply supports 0–5V laser power control, high- or low-level laser activation, and a water protection input. Before ordering, the input voltage, tube requirements, control signals and installation dimensions should be checked against the existing machine.   2. Key Features Model ZY150W for 150W glass CO2 laser tube applications AC110V or AC220V input version available Maximum output voltage of 35kV Maximum output current of 38mA 0–5V laser power control signal High-level and low-level laser activation inputs Water protection input Fan-cooled metal enclosure Open-circuit protection Overcurrent protection Current display options available Test function and operating indicator connections shown on the interface p…
