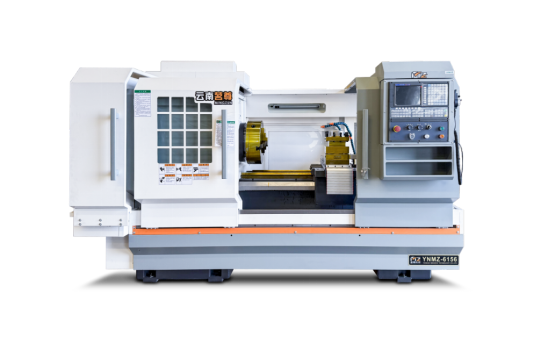

560mm Swing Double Chuck Independent Spindle CNC Pipe Threading Lathe

Product Name: 560 Swing Independent Spindle CNC Pipe Threading Lathe with Double Chucks   Model: YNMZ-56H   Standard Configuration   • Swing over bed: Φ560 • Bed length: 500mm / 6000mm • Independent spindle with stepless speed regulation: 50~1000rpm • Guideway width: 400mm; 1-V & 1-flat guideway structure • Spindle bore: Φ130 • Φ380 front & rear double chucks, manual tailstock, A2-11 spindle, 4-station electric turret, integral bed base / split bed base • CNC System: GSK, FANUC, SIEMENS, SYNTEC • 11KW servo spindle motor   Optional Configuration   • Swing over bed: Φ630 • Guideway type: 470mm / 550mm width guideway • Spindle bore: Φ160, Φ205 • Hydraulic chuck, hydraulic tailstock • 6-station electric turret, 8-station servo turret
