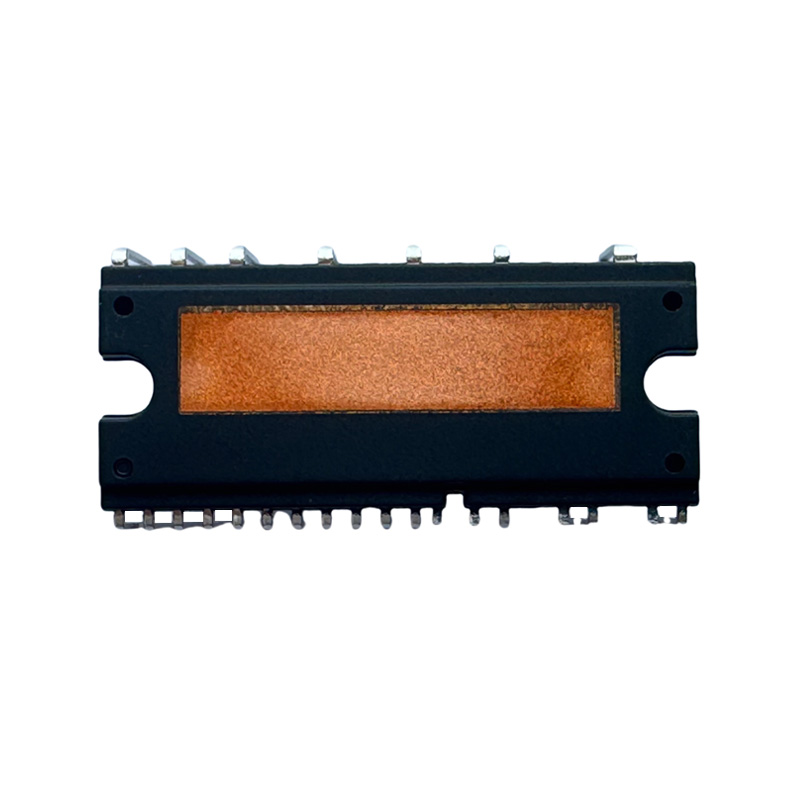

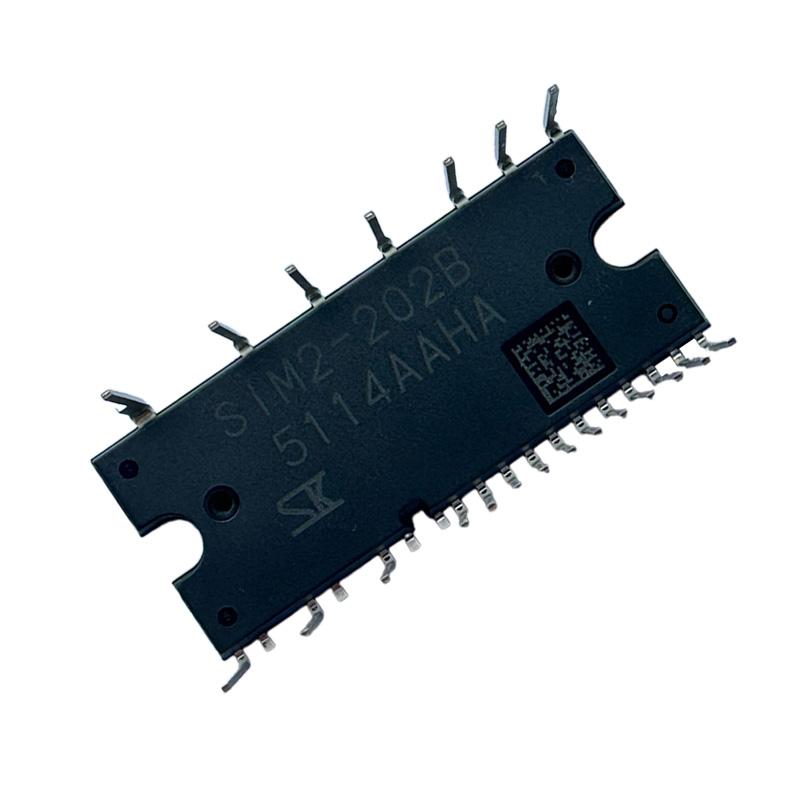

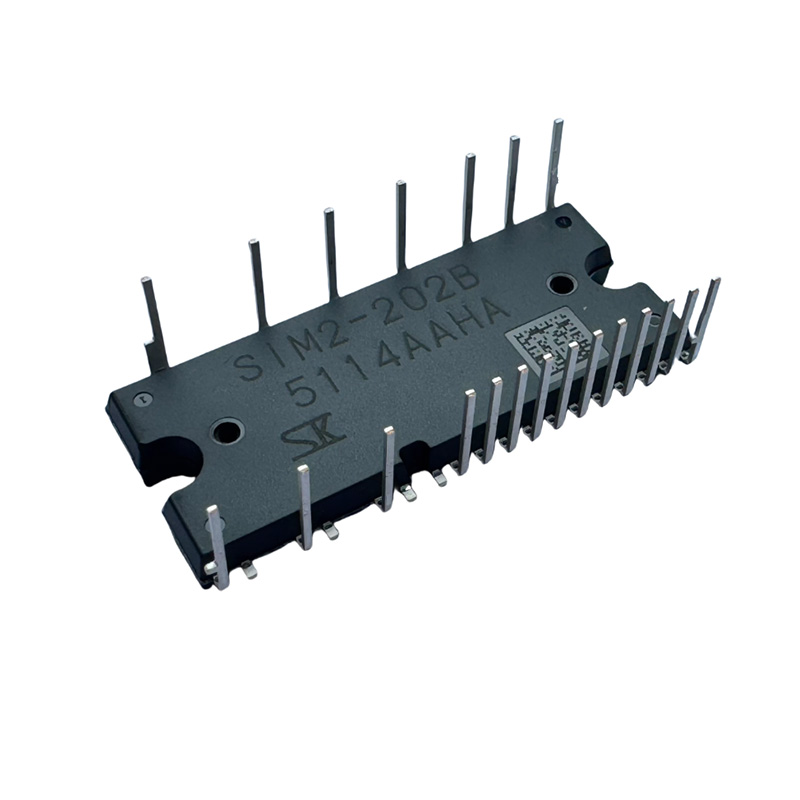

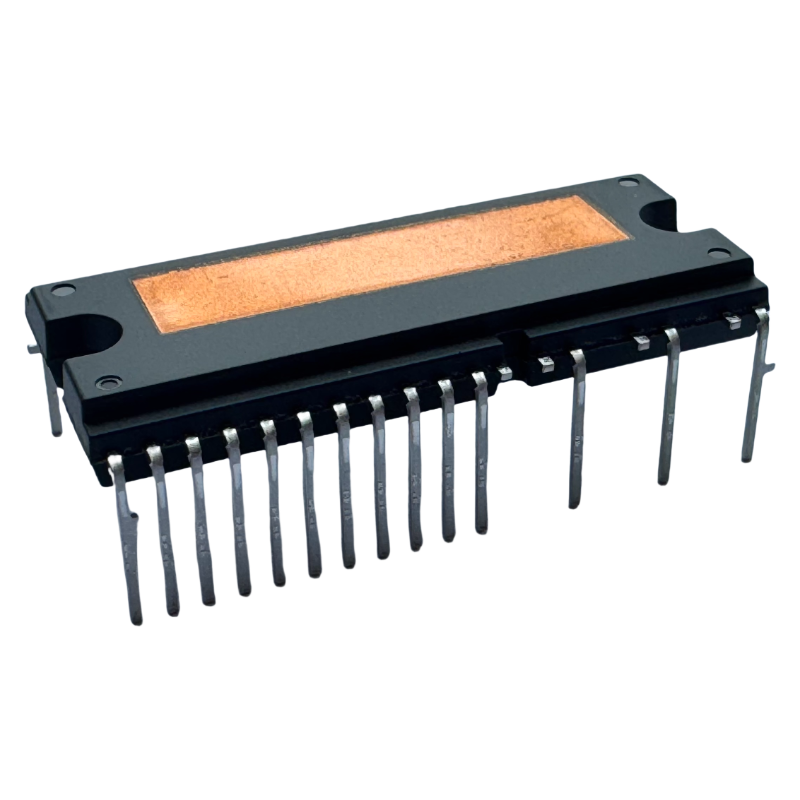

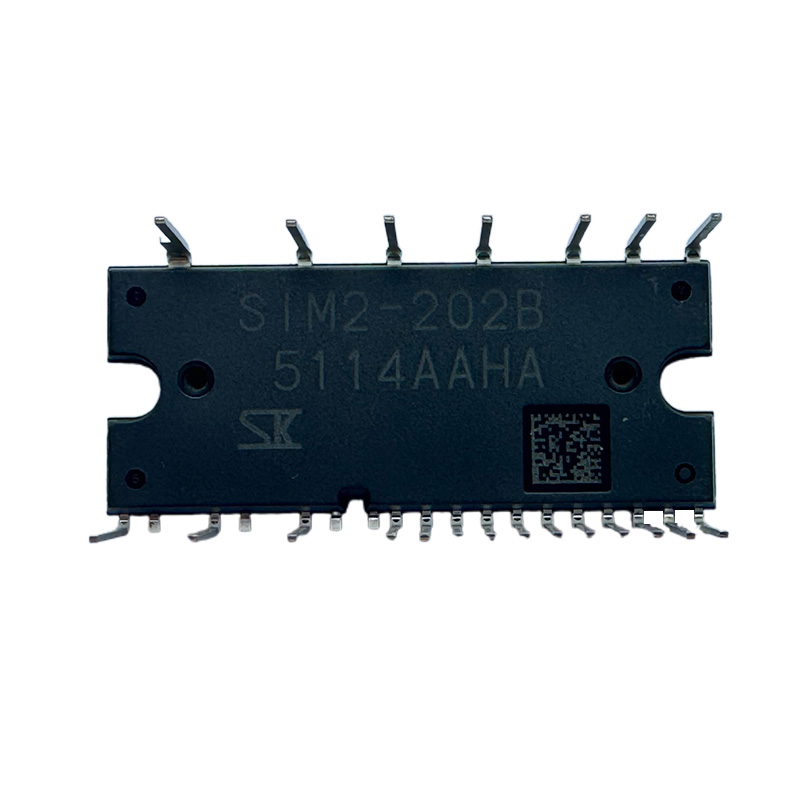

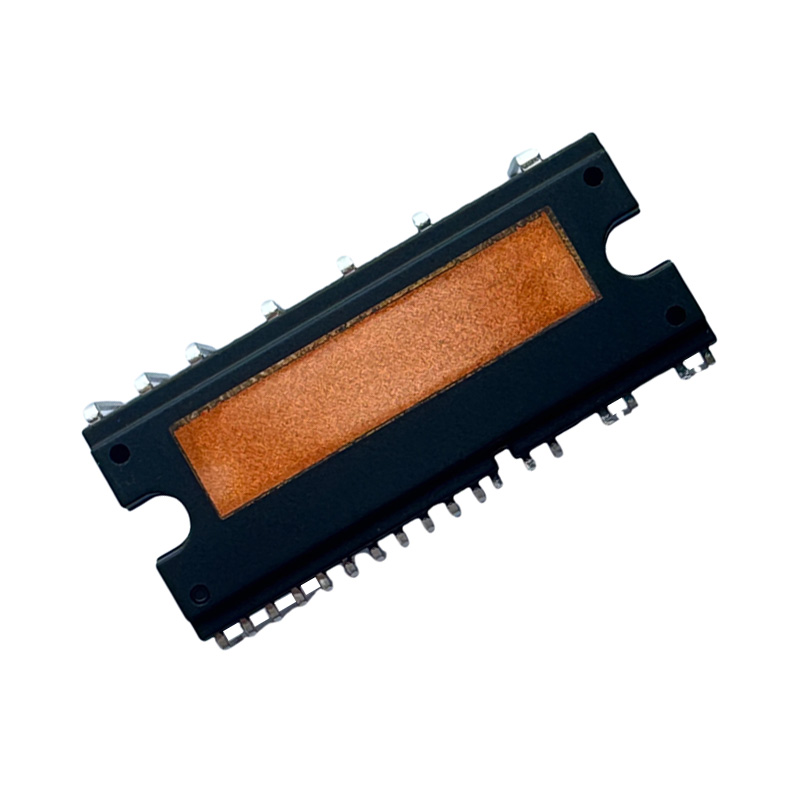

600V 20A 3-Phase IPM Module SIM2-202B

600V 20A Intelligent Power Modules(IPM) IPM Module -- SIM2-202B   Description The SIM2-202B is a high voltage 3-phase motor driver in which transistors, pre-drive circuits, and bootstrap diodes with current-limiting resistors are highly integrated. The product can run on a 3-shunt current detection system and optimally control the inverter systems of medium-capacity motors that require universal input standards. The product uses a compact DIP40 package and supports an output current of 20 A.   Features ● Pb-free (RoHS Compliant) ● Isolation Voltage: 2000 V (for 1 min)  UL Recognition Pending (File No.: E118037) ● Temperature Sensing Function ● Built-in Bootstrap Diodes with Current Limiting Resistors (250 Ω) ● CMOS-compatible Input (3.3 V or 5 V) ● Fault Signal Output at Protection Activation ● Protections Include:    Undervoltage Lockout for Power Supply    High-side (UVLO_VB): Auto-restart    Low-side (UVLO_VCC): Auto-restart    Overcurrent Protection (OCP): Auto-restar…
