Custom Elbow 4Pin Aviation Plug Power Wiring Harness

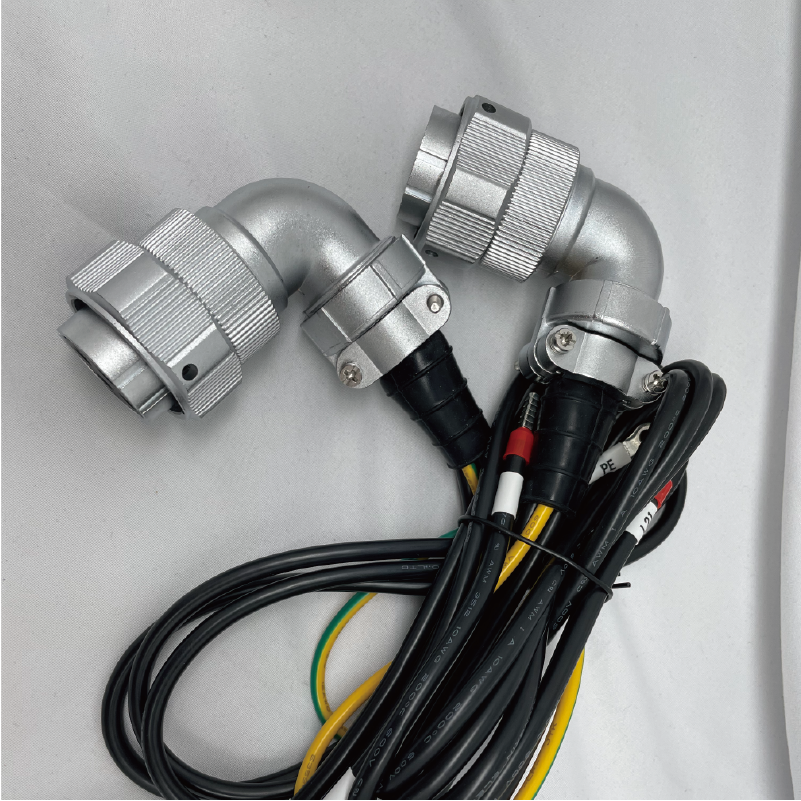

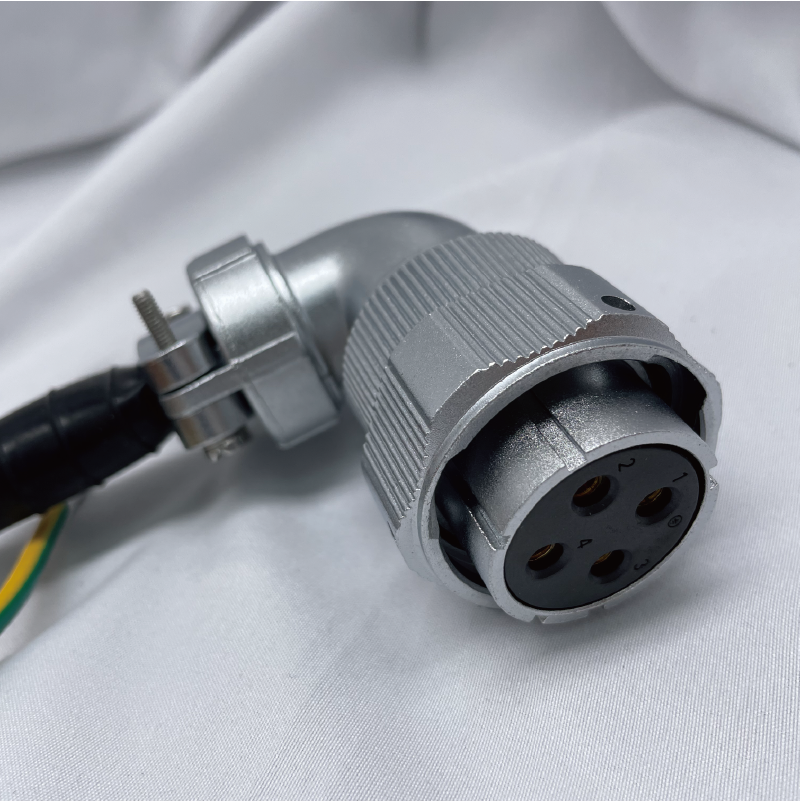

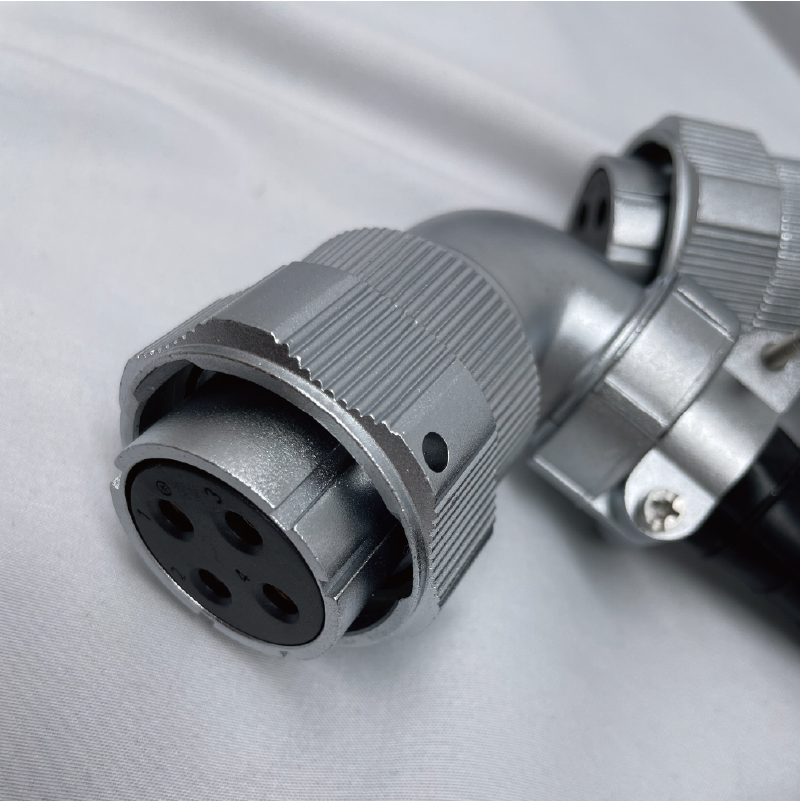

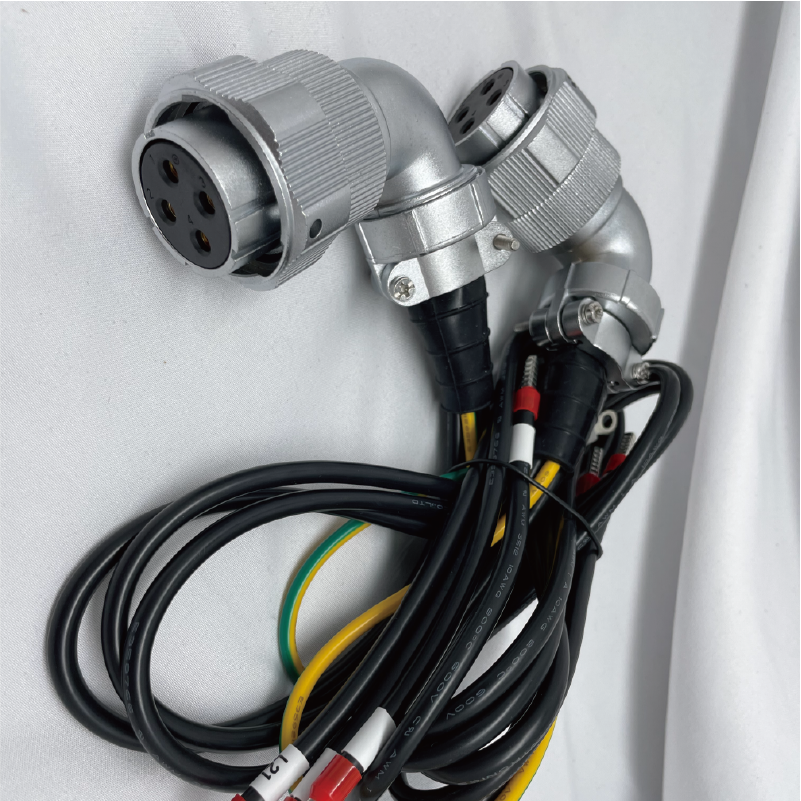

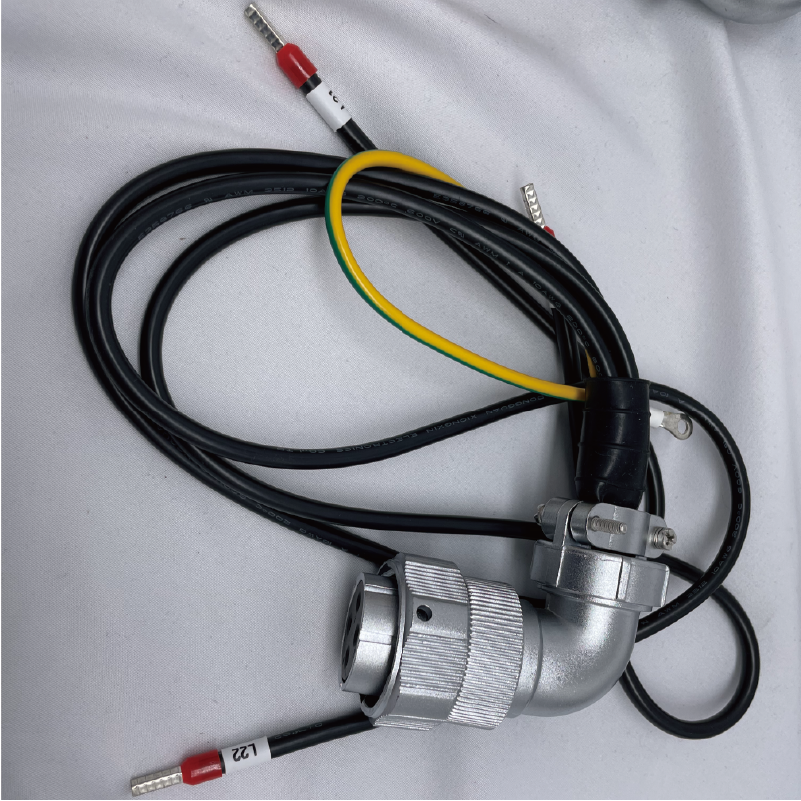

Custom Elbow 4Pin Aviation Plug Power Wiring Harness This harness ends in a threaded 4-pin aviation plug whose cable exit is bent 90°, so the lead leaves the shell parallel to the panel rather than straight out of it. The shell is a die-cast zinc or nickel-plated brass body, 16 mm across the thread, holding four screw-locked contacts behind a silicone gasket. Tighten the coupling ring and the joint is locked and sealed; the elbow body then keeps the cable flat against a cabinet wall, a hinge or a machine frame, where a straight plug would need 60 mm of clear depth it does not have. Ordered as a ‌4Pin elbow aviation power cable‌, it is chosen wherever an enclosure is shallow or a door has to close over the connector. Supplied as an ‌elbow aviation plug cable‌ build, the bend is moulded or glanded into the back shell, so pull force and the weight of the hanging lead never reach the solder cups inside. Four pins carry what most single-phase jobs need: live, neutral, earth and one spare, o…
