D11 Harmonic Reducer with NEMA17 Stepper Motor

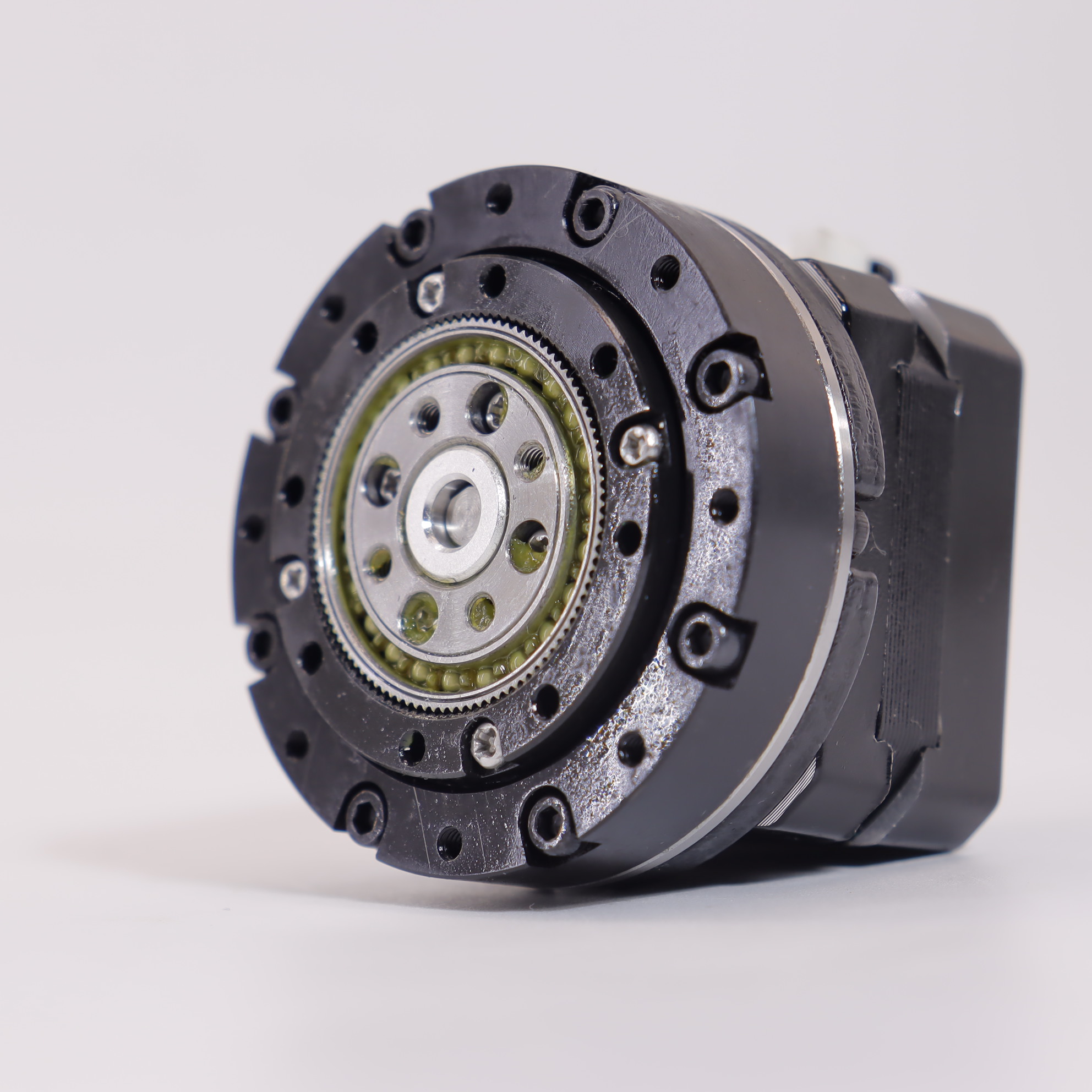

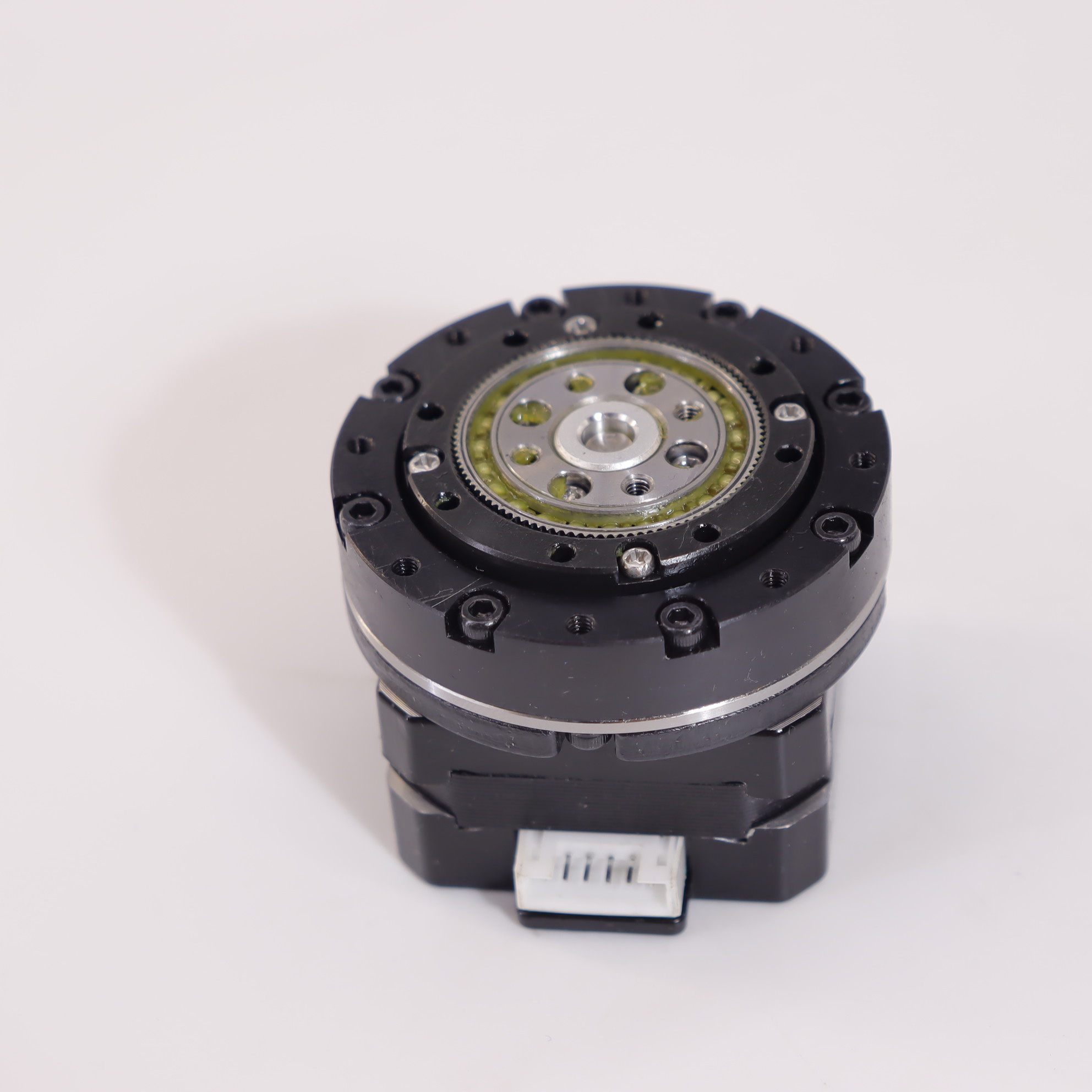

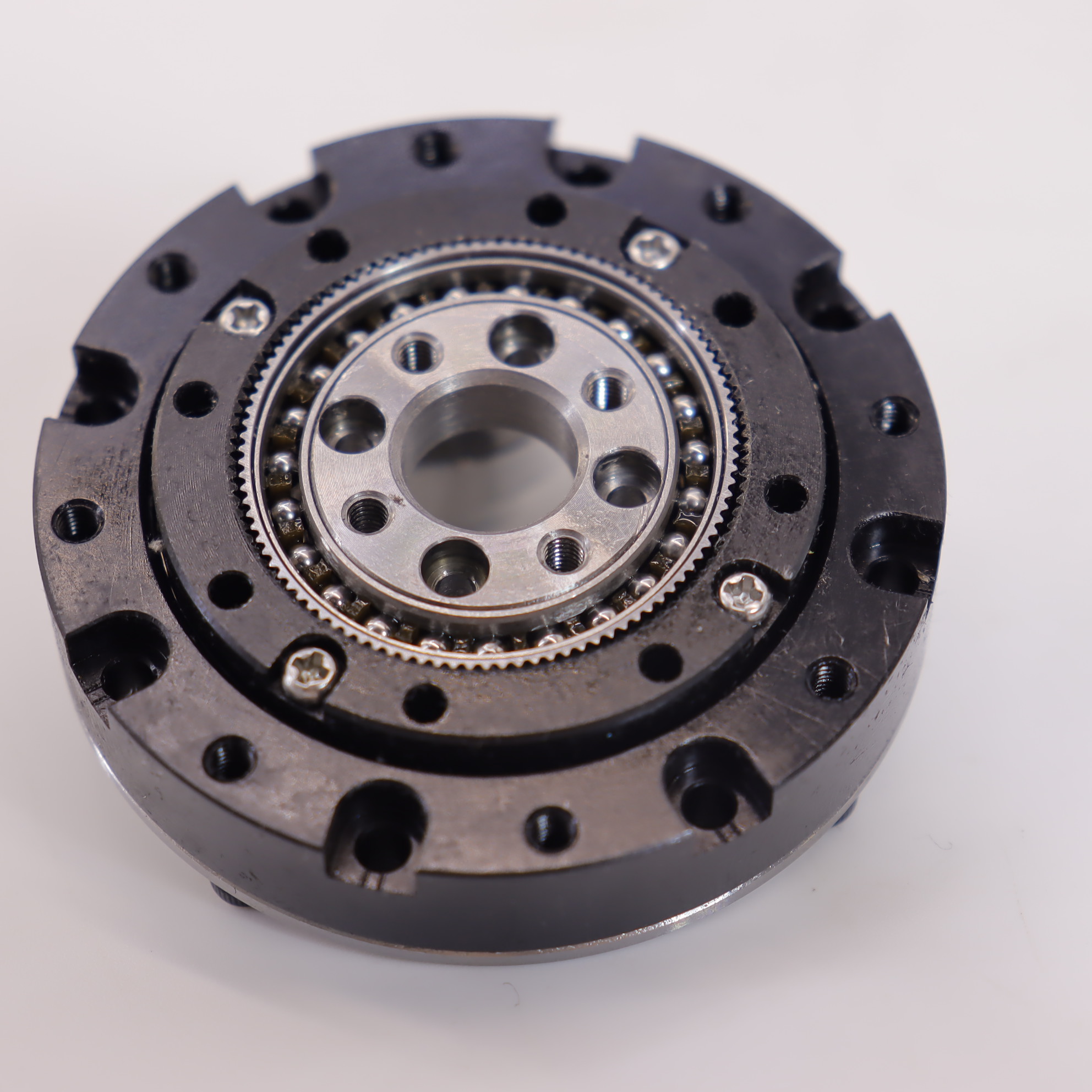

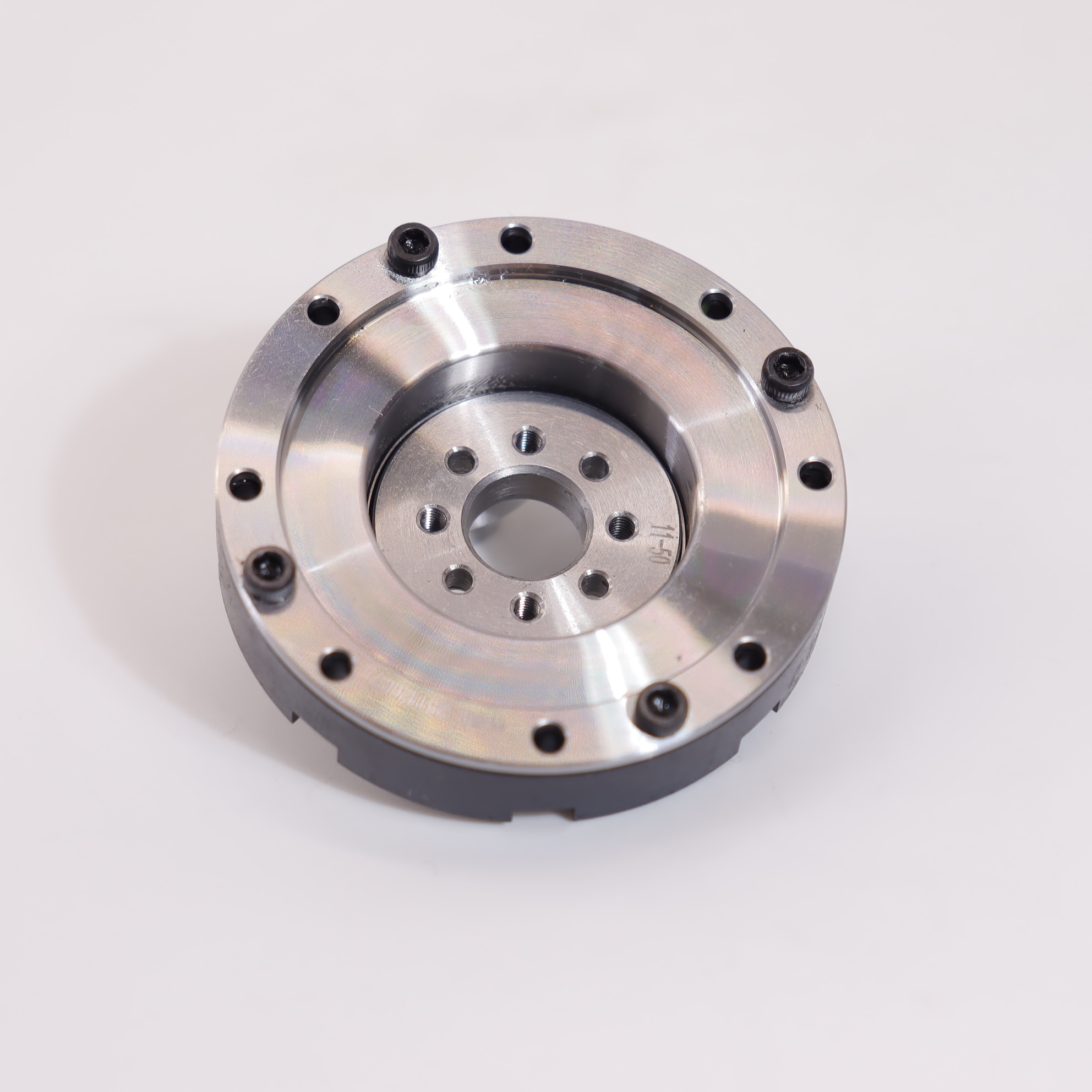

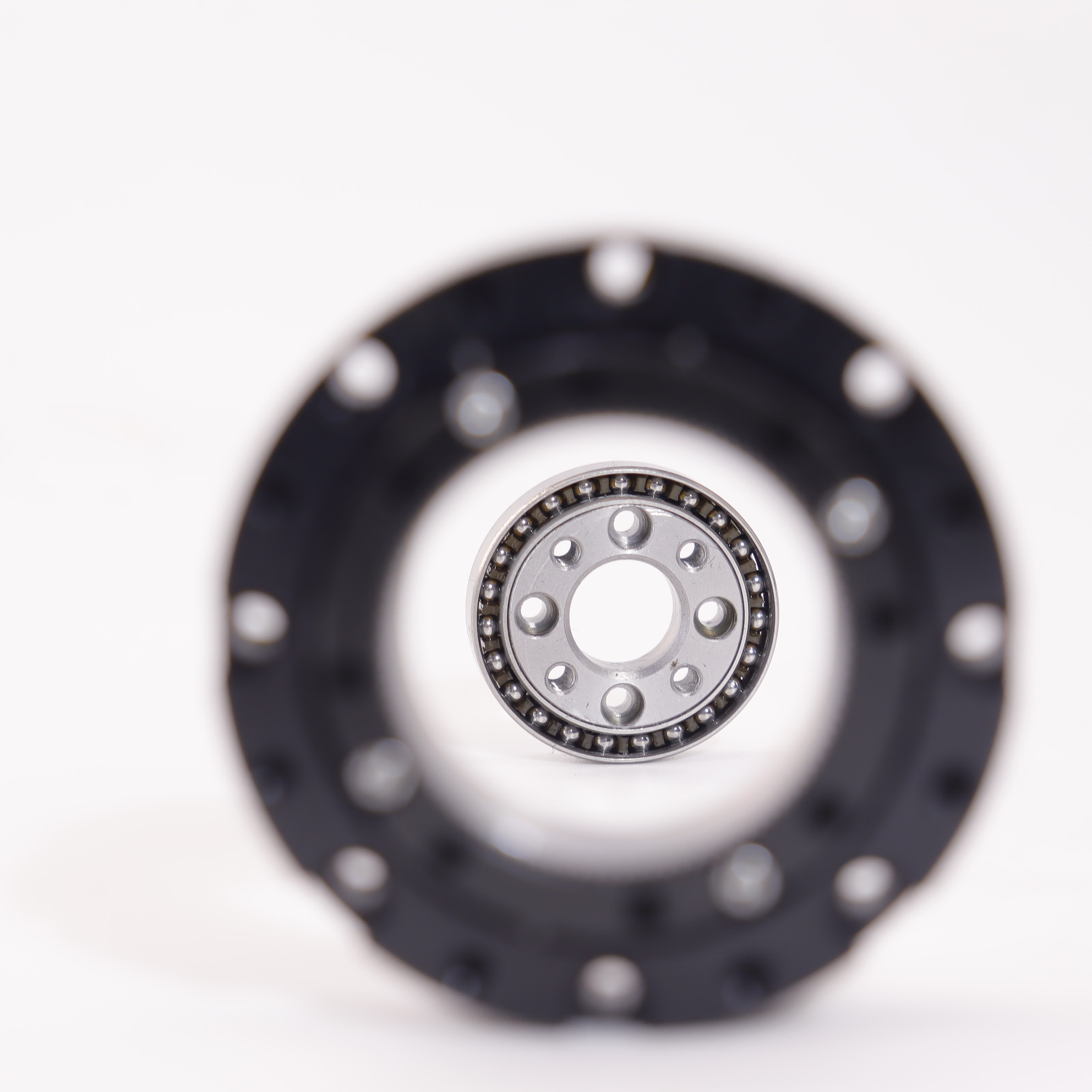

NEMA17 Stepper Motor Module with D11 Harmonic Reducer   This  Joint Module integrates the NEMA17 Stepper Motor and the D11 Harmonic Reducer into a single unit.   The product model is MINIF11 The reduction ratios are 30:1, 50:1, 80:1, and 100:1，it is recommended to use torques of 4Nm, 6Nm, 8Nm and 10Nm The built-in NEMA17 Stepper Motor The power supply voltage is 12-24V,the rated current is 1.5A the step angle is 1.8°,and the recommended speed range is 100-500rpm.      NEMA17 Stepper Motor Module with D11 Mini Harmonic Reducer: Precision and Power in One Package     The NEMA17 Stepper Motor Module paired with the D11 mini Harmonic Reducer represents a high-performance solution for precision motion control applications. This combination of components is designed to deliver exceptional torque, accuracy, and reliability in a compact form factor. Whether you are working on robotics, 3D printing, automation systems, or CNC machines, this module offers a versatile and efficient way to…
