Harmonic Reducer with NEMA17 Stepper Motor

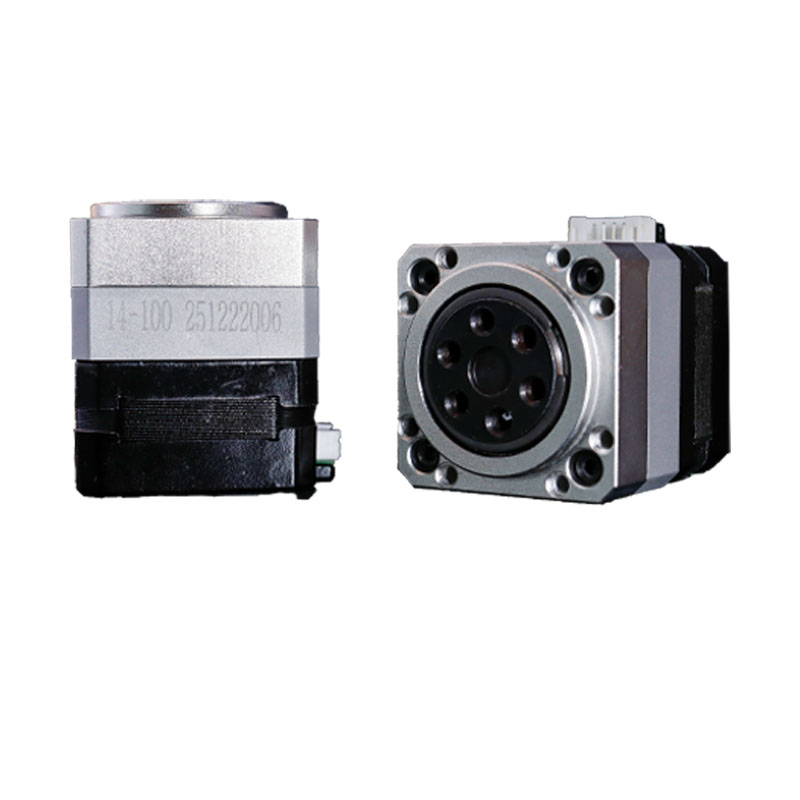

NEMA17 Stepper Motor Module with MINIFZ14 Harmonic Reducer   This  Joint Module integrates the NEMA17 Stepper Motor and the MINIZ14 Harmonic Reducer into a single unit.   The product model is MINIFZ14 The reduction ratios are 30:1, 50:1, 80:1, and 100:1，it is recommended to use torques of 2Nm, 4Nm, 5Nm and 7Nm The built-in NEMA17 Stepper Motor The power supply voltage is 12-24V,the rated current is 1.0A the step angle is 1.8°,and the recommended speed range is 100-500rpm.     Harmonic Reducer 17 Stepper Motor Flange Output, Harmonic Reducer 17 Stepper Motor Module, Stepper Motor Flange Output Harmonic Reducer are advanced components designed to enhance the precision and efficiency of motion control systems. These units integrate a harmonic drive mechanism with a stepper motor, providing high torque, low backlash, and accurate positioning in various industrial applications. The flange output configuration ensures compatibility with a wide range of mechanical setups, making it an…
