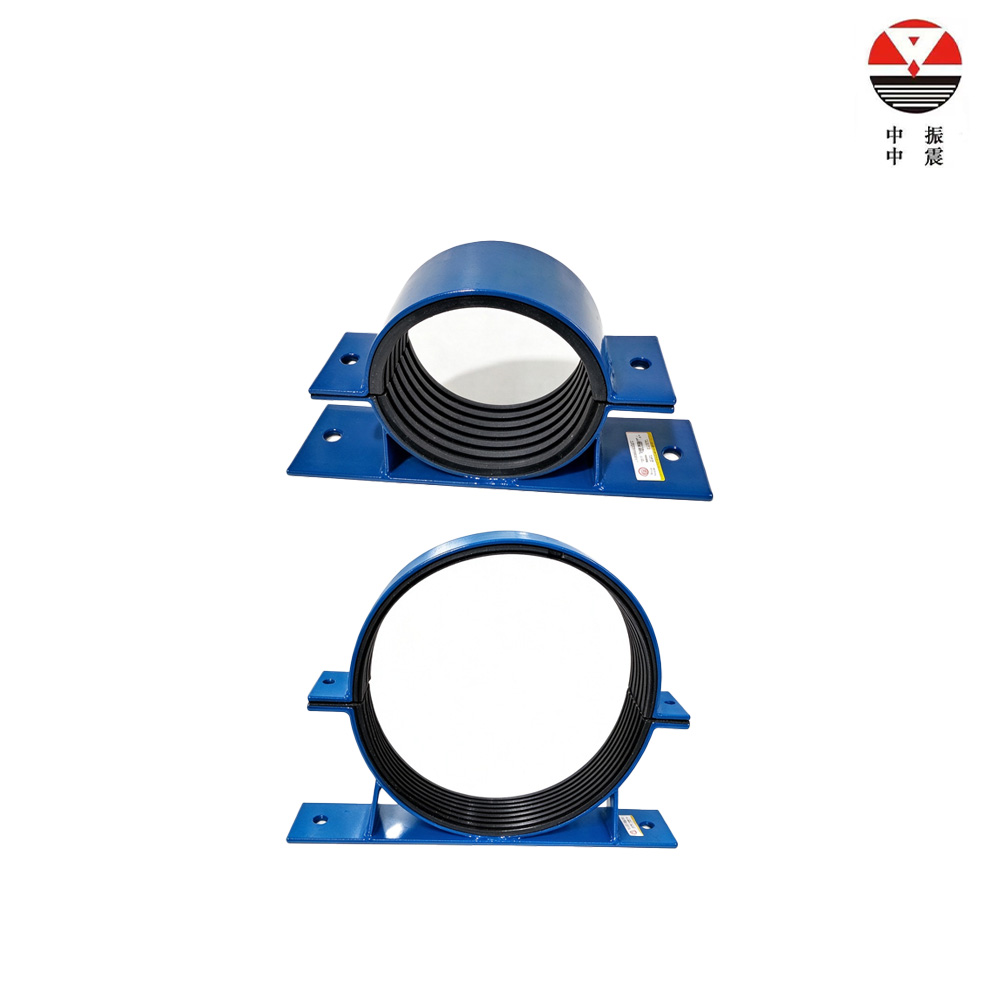

DT Type Full Support Pipe Vibration Isolator

Product Name DT Type Full Support Pipe Vibration Isolator Product Description Pipe borne vibration and structure noise transfer through pipe walls to building walls, shortening pipe service life and disturbing indoor environment. The DT Type Full Support Pipe Vibration Isolator works alongside Spring Vibration Isolator for mechanical pipeline systems. Unlike ordinary Damping Vibration Damper, it adopts composite rubber and arc metal plate construction for pipe elastic support. Product Parameter No. Nominal Diameter Pipe Outer Diameter Length Width Hole Spacing 1 DT-65 73 220 80 190 2 DT-80 89 240 80 210 3 DT-100 114 300 80 270 4 DT-125 141 320 80 290 5 DT-150 168 350 80 320 6 DT-200 219 400 80 370 7 DT-250 273 465 80 435 8 DT-300 325 510 80 480 9 DT-350 355 530 80 500 10 DT-400 426 650 80 620 11 DT-450 478 670 80 640 12 DT-500 530 770 80 740 13 DT-600 630 870 80 840 Application Scenarios This pipe isolator is designed for air conditioning pipes and fi…
