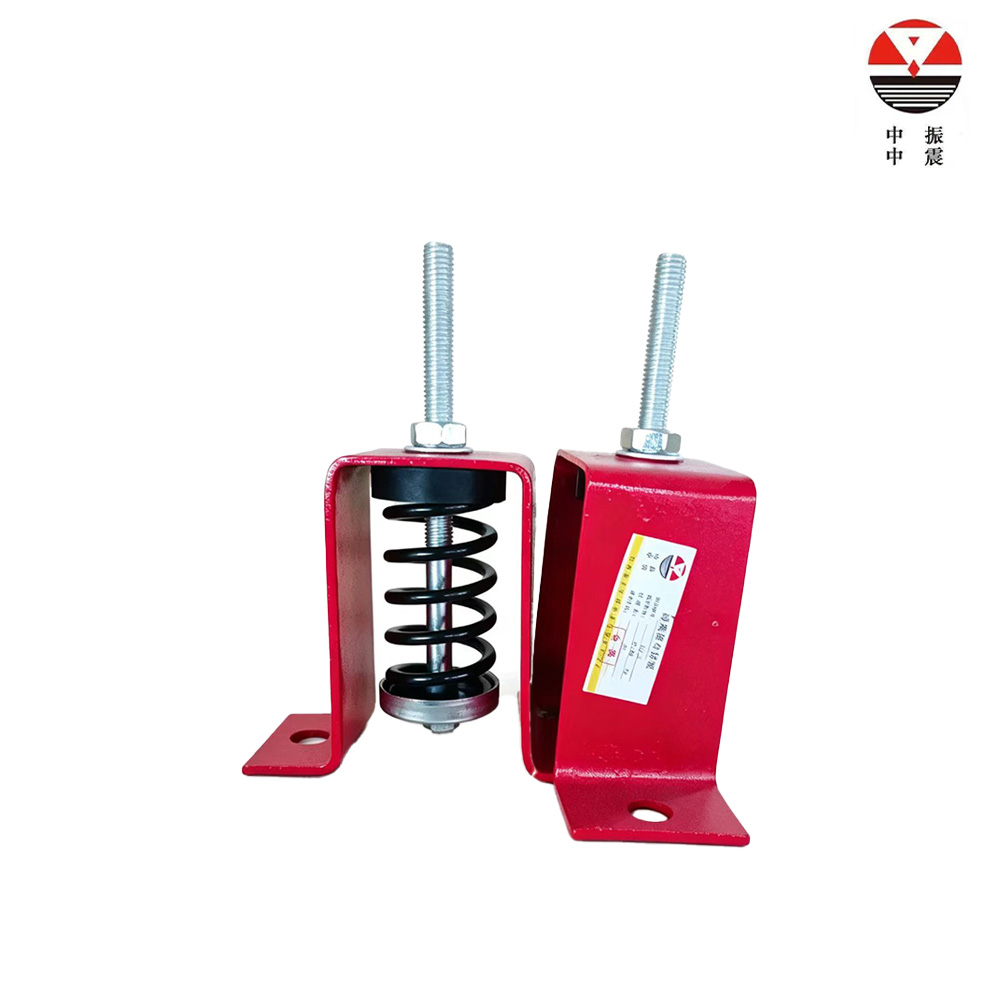

HV-3 Type Damping Spring Hanging Vibration Isolator

Product Name HV-3 Type Damping Spring Hanging Vibration Isolator Product Description Continuous vibration from suspended mechanical units creates annoying indoor noise and may crack ceiling fixtures over long operation cycles. The HV-3 Type Damping Spring Hanging Vibration Isolator inherits reliable structure of Spring Vibration Isolator, and uses elastic buffer elements from Rubber Vibration Isolator. It acts as a pre-stressed hanging assembly to cut vibration transfer routes for overhead equipment, mitigating noise pollution and structural damage effectively. Product Parameters Model Load Range (Kg) H M A HV-1 10-20 80 8 45 HV-2 20-30 80 8 45 HV-3 30-50 100 10 50 HV-4 50-80 110 10 55 HV-5 80-120 120 12 60 HV-6 120-160 140 12 65 HV-7 160-200 140 14 65 HV-8 200-240 140 14 70 HV-9 240-300 140 14 70 HV-10 300-450 145 14 70 HV-11 450-650 155 16 80 HV-12 650-1000 155 20 80 HV-13 1000-1500 155 20 80 Application Scenarios Vibration transmitted by hangers wi…
