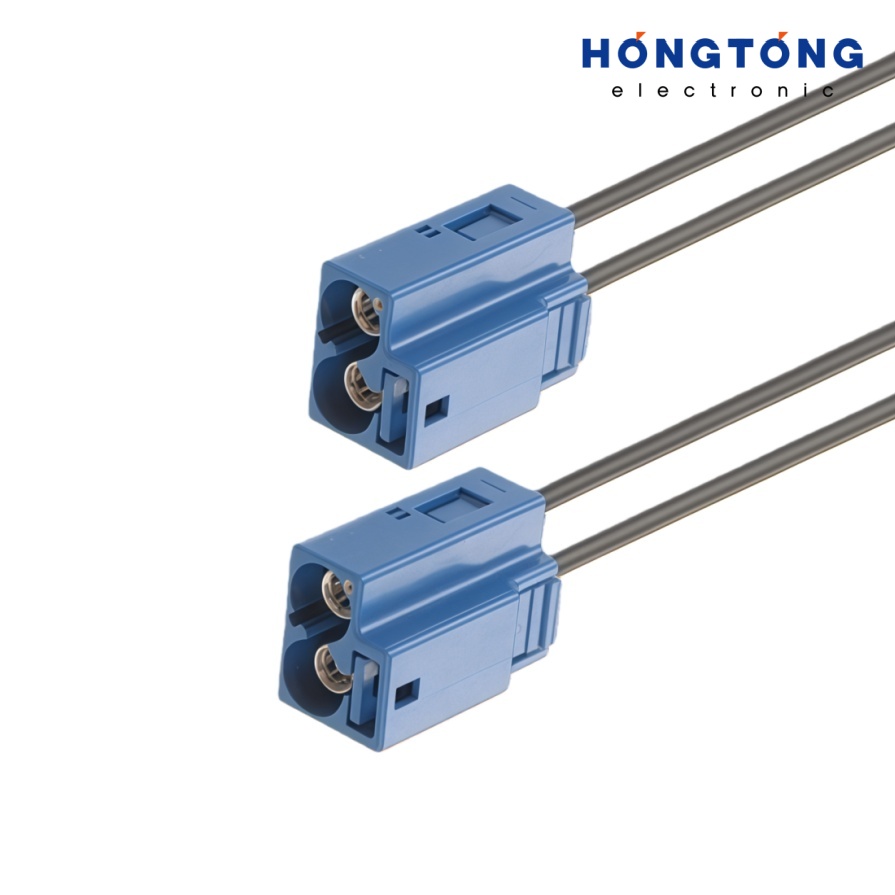

Dual-Port Mini FAKRA RF Coaxial Harness

FAKRA wiring harness and FAKRA dual-port wiring harness are core components for in-vehicle high-frequency signal transmission and multi-device interconnection, specially designed for modern automotive intelligent systems to meet multi-channel data transmission needs in scenarios such as autonomous driving, in-vehicle entertainment, and surround-view cameras. The product adopts a precision wire harness assembly process, with cables selected from automotive-grade RG174/RG316 coaxial cables or Leoni DACAR 302-4 dedicated wires. Conductors are made of high-purity silver-plated copper wire cores, insulation layers use low dielectric constant PE/PTFE materials, and the outer layer integrates an aluminum foil + tinned copper braided double-layer shielding structure with shielding effectiveness ≥80dB. It not only complies with IEC 61169-26 FAKRA standards and USCAR automotive requirements, but also passes RoHS environmental certification, supporting DC-6GHz wide-band transmission. The core adv…
