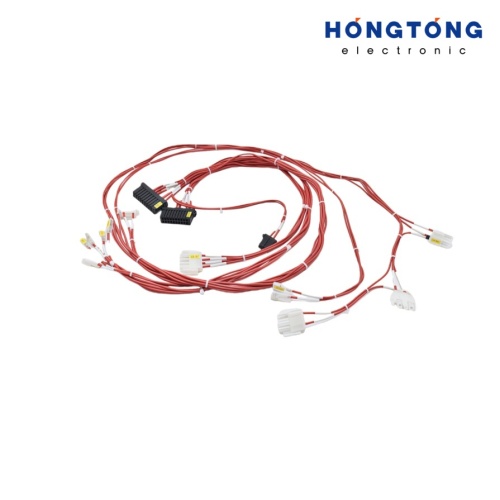

High-Shield FAKRA Vehicle Signal Harness

FAKRA wiring harness is a key signal transmission carrier for automotive intelligent electronic systems, focusing on stable connection needs in high-frequency scenarios. The product adopts an integrated precision wire harness assembly process, with conductors made of high-purity oxygen-free copper wire cores with silver plating, insulation layer using low-loss PE material, and outer layer wrapped with aluminum foil + tinned copper braided double shielding structure, with shielding effectiveness up to ≥82dB. It not only complies with IEC 61169-26 FAKRA standard and USCAR 37 automotive specification, but also passes RoHS 2.0 environmental certification. It supports DC-5GHz wide-band transmission, with characteristic impedance accurately controlled at 50Ω±2Ω, voltage standing wave ratio (VSWR) ≤1.6, and insertion loss ≤0.5dB/m (2GHz), ensuring low-latency transmission of high-frequency signals such as vehicle radar, surround-view cameras, and satellite navigation. The connector adopts 1…
