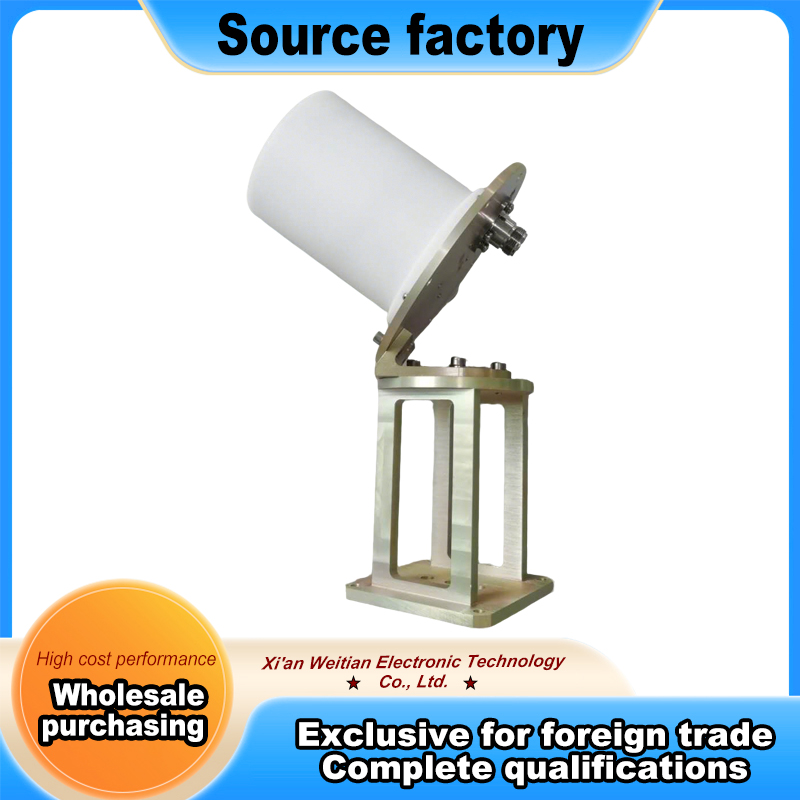

N Port Anti Vibration Hemispherical Coverage Antenna

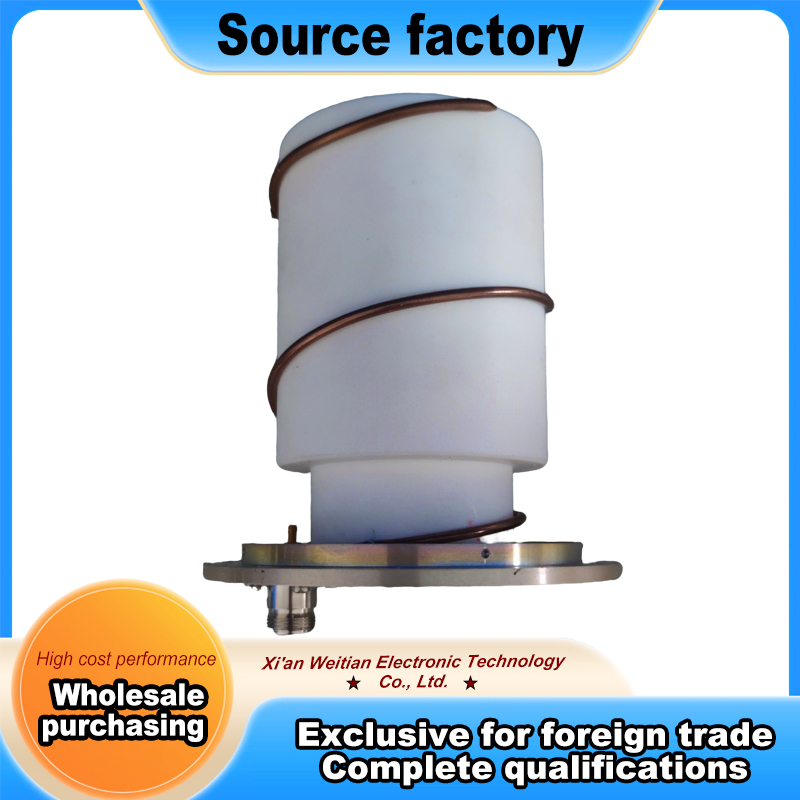

 Axial Mode Helical Antenna 1.4-1.75GHz for Airborne and Base Station Applications This product is a professional Helical Antenna in the form of an axial mode or helical design. The antenna operates from 1.4GHz to 1.75GHz in the L band and is built from aluminum with conductive oxidation finish. As an Axial Mode Helical Antenna, it provides hemispherical coverage with circular polarization and medium to high gain. The structure is rugged and resistant to vibration, making it suitable for demanding environments. The antenna can withstand thermal vacuum conditions with extreme background temperatures, which makes it suitable for space and high altitude applications. The antenna features an N K type connector for secure and reliable connection. This axial mode helical antenna delivers solid electrical performance across its operating range from 1.4GHz to 1.75GHz. The Voltage Standing Wave Ratio (VSWR) is rated at 1.5, which shows excellent impedance matching. The gain is 5dB or higher, p…
