X Band Low Profile Radar Antenna

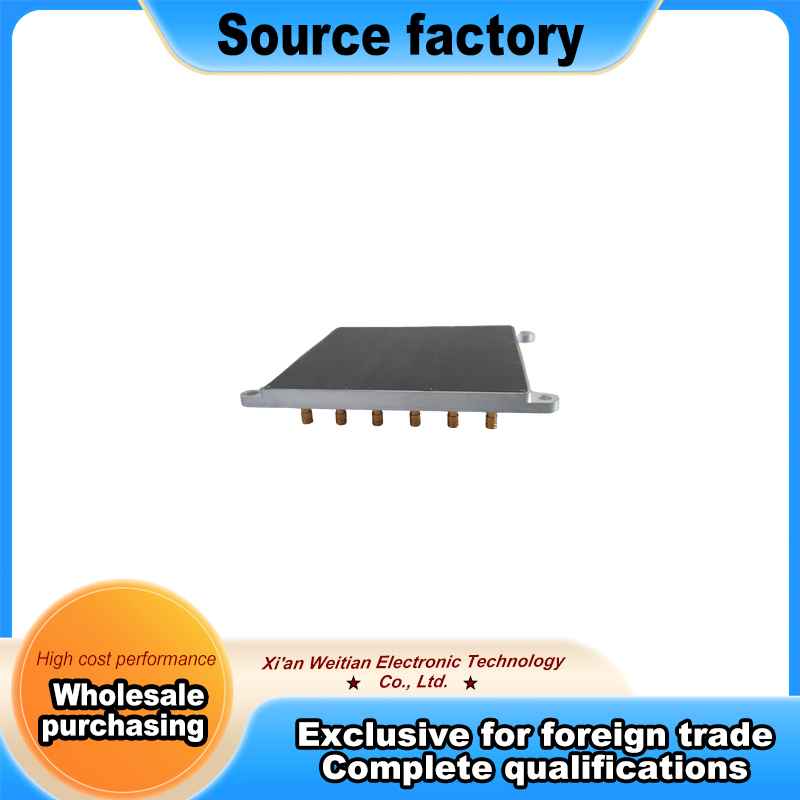

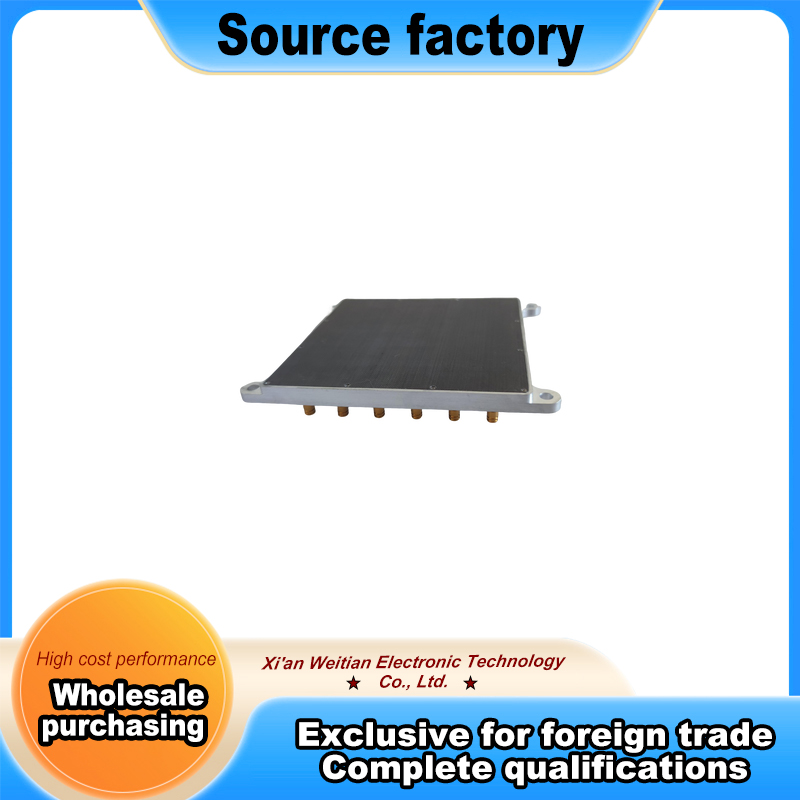

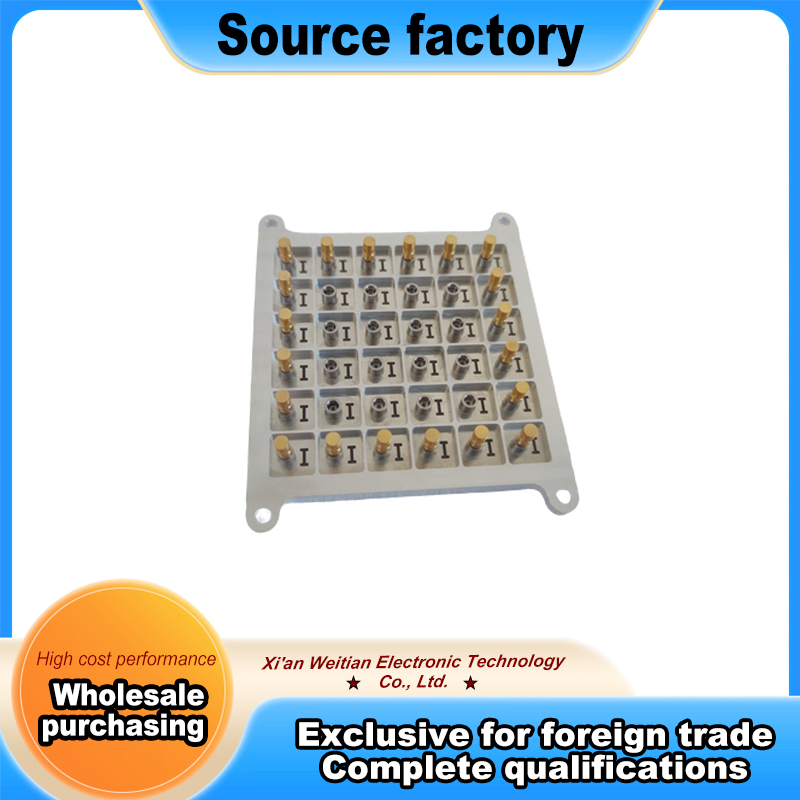

Symmetrical Dipole Array Antenna 1.49-1.76GHz for Satellite and Beidou This product is a professional Array Antenna featuring a symmetrical dipole array design. The antenna operates from 1.49GHz to 1.76GHz in the L band with 64 elements arranged in an 8x8 grid configuration. As a Symmetrical Dipole Array, it offers wideband coverage for satellite communication, telemetry, and short message services. The antenna provides 45 degree dual linear polarization, which matches common satellite polarization schemes. The array features full beam scanning capability with 360 degree azimuth coverage and up to 45.5 degree elevation coverage. The antenna supports very high continuous wave power transmission. It features an SMA K type connector. This symmetrical dipole array delivers excellent electrical performance across its operating range from 1.49GHz to 1.76GHz. The Voltage Standing Wave Ratio (VSWR) is rated at 1.5, which shows very good impedance matching. The aperture efficiency is greater t…
